Thor Broadcast H-16RCA-RF-AMOD Digital CATV & RF Distribution

Thor Broadcast

Price: $1,914.00
Today's Price: $1,595.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
H-16RCA-RF-AMOD
Availability:
Usually ships the same business day
1:
High RF CATV RF Output Power
2:
CATV RF 45-870Mzh Spectrum
3:
Rack-Mountable 1RU Space
4:
16 Agile Channel Output
5:
Free Shipping
6:
Authorized Thor Direct Warranty

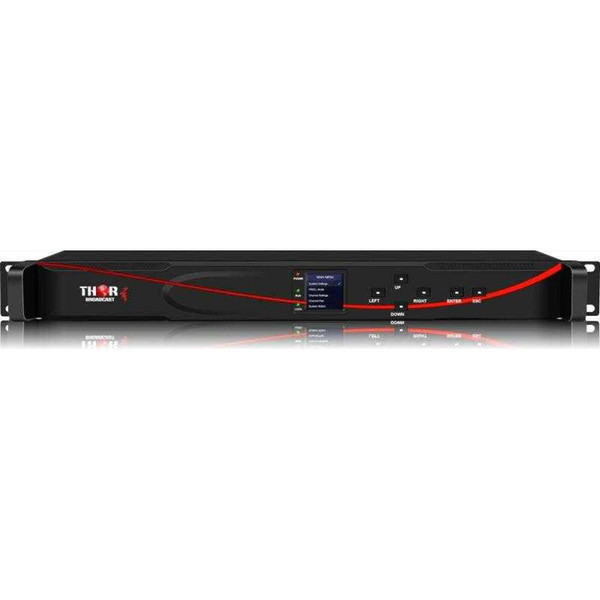

This Thor Broadcast H-16RCA-RF-AMOD 16 Channel Analog Agile Modulator - NTSC PAL SECAM is quickly becoming legacy equipment, there is still a need for headends requiring Analog modulation. This unit simplifies the installation because of the high density capacity of 16 independent inputs.

The Inputs are in CVBS RCA baseband video / audio inputs. Analog CVBS inputs can be connected from items like Security Cameras, DVD/VCR player, Set-Top Box, Old Video players, or older gaming systems like Playstation, Nintendo 64.
The High Power RF Output allows for video distribution to many TV's on the same coax network without RF amplifiers.

Common applications used are video security monitoring, Hotels, Motels, Education, Private anonymous channels, music channels, radio channels, coax network testing.

It is SAW filtered and microprocessor controlled with an output capability of 860MHz. Setup and tuning is easy and simple via the front panel. The unit offers high performance, low cost comparable to digital modulators and compact design for system operators.

Thor Broadcast H-16RCA-RF-AMOD 16 Channel Analog Agile Modulator - NTSC PAL SECAM Features:

  • SAW filtering for maintenance free adjacent channel configuration
  • High RF CATV RF output power
  • CATV RF 45-870Mzh Spectrum
  • Universal worldwide use supports NTSC, PAL, or SECAM output
  • Double I.F loop for superior in-band C/N
  • 16 Agile channel output
  • Fewer cables and connectors but greater reliability
  • Rack-mountable 1RU space
  • Front panel accessible level controls for easy set-up and adjustment

Why not buy this Thor Broadcast H-16RCA-RF-AMOD 16 Channel Analog Agile Modulator - NTSC PAL SECAM today?

Thor Broadcast H-16RCA-RF-AMOD 16 Channel Analog Agile Modulator - NTSC PAL SECAM Specifications:

OUTPUT

RF

Output Connector

F Connector @ 75Ohms

Output Frequency

45~860MHz any 16 channels

Output Level

113 dBµV (Adj.) = +53dBmV

Out-band Rejection

≥60dB

A / V Ratio

-21~ -18 dB (Adj.)

Frequency Stability

±5kHz

Test Point

-20 dB ±3dB

INPUT

VIDEO

Video-Input Level

0.6-1.5Vp-p (87.5% Modulation)

Input Connector

1x Yellow RCA Jack

Video C/N

60dB

AUDIO

Input Level

0.8Vp-p(25KHz Peak Deviation)

Input Connector

1x White RCA Jack

GENERAL

POWER AND SIZE

Voltage

AC 90 ~ 264V @ 47~63Hz

Power Consumption

100W

Cooling Fans

3

Dimension

48.4*32.9*4.44 (CM)

Carton Size

55*39*13 (CM)

Shipping Weight

12lb  (6KG)
