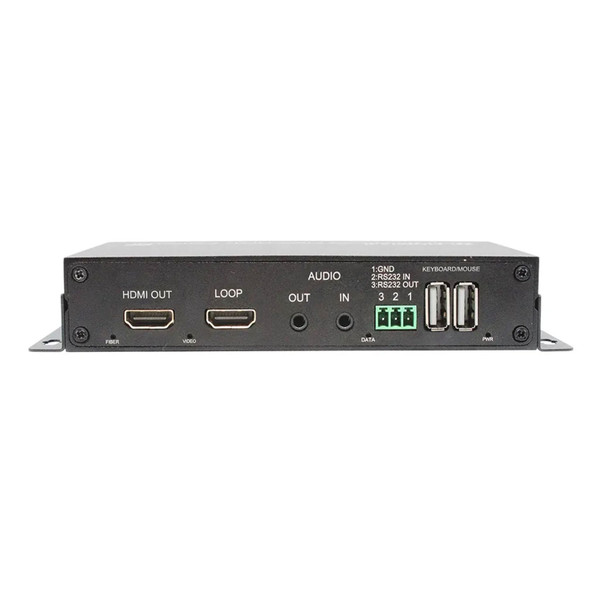

This Smart-AVI HFX-KM-RX-S HDMI 2.0 KVM Fiber Receiver is a Single Head HDMI 2.0 (3840 x 2160), USB keyboard-mouse and stereo audio extender, sending signals up to 2 km (1.2 miles) away over a single conventional and inexpensive single fiber cable.
This new technology is superior to older HDMI extenders that require a special single fiber shielded cable to go a short distance.
The HFX-KM is the leading extender on the market to feature 3840 x 2160 @ 60 Hz, USB and full KVM extension and emulation on one cohesive system and is optimized for UHD 4K@60Hz monitors with crystal-clear picture; excellent for detail driven work.
The HFX-KM extends keyboard-mouse signals for remote workflow management and offers uninterrupted emulation from the user’s transmitter unit.
This uninterrupted emulation prevents accidental disconnection or deactivation issues during mission critical operations.
The HFX-KM‘s unparalleled KVM extension technology makes it the perfect solution for extending servers in applications ranging from data processing to interactive conferencing.
Smart-AVI HFX-KM-RX-S HDMI 2.0 KVM Fiber Receiver Feature:
- Supports resolutions up to 4K Ultra HD (@60 Hz)
- USB Keyboard and Mouse extension and emulation
- External power adapter for transmitter and receiver unit
- Supports Stereo Sound
- Compatible with Windows, Mac and Linux Operating Systems
- RS232 Serial Extension
- SmartAVI Ultra Low Latency
Why not buy this Smart-AVI HFX-KM-RX-S HDMI 2.0 KVM Fiber Receiver from HDTV Supply today?
Smart-AVI HFX-KM-RX-S HDMI 2.0 KVM Fiber Receiver Specifications:
| VIDEO | |
|---|---|
| Format | HDMI2.0 |
| Video Resolution | Resolution: high definition 3840 x 2160 Color Depth: 24-bit color depth Latency: less than 1 ms |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| Input Interface | (1) HDMI 19-pins (female) (1) HDMI 19-pins (female) (local) |
| Output Interface | (1) HDMI 19-pins (female) (1) HDMI 19-pins (female) (local) |
| Max Output Distance | Up to 20 f |
| Equalization | Automatic |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| Data Rate | Supports bandwidths up to 18 Gbps |
| AUDIO | |
| Format | Stereo |
| Input Interface | 3.5 mm Jack Socket (female) |
| Output Interface | 3.5 mm Jack Socket (female) |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices |
| SERIAL | |
| Input Interface (TX) | (1) RS232 Serial, 3-pin pheonix connector |
| Output Interface (RX) | (1) RS232 Serial, 3-pin pheonix connector |
| SYSTEM | |
| Extension Type | Fiber (LC-LC Single) |
| Cable Requirements | Single Fiber |
| Maximum Length | Single mode: 2 km (1.2 miles) |
| OTHER | |
| Power | 100-240 VAC/ 12VDC @ 1A/15W |
| Dimensions | 6.4” W x 1.1” H x 3.9” D |
| Weight | 2.65 lb (1.43 lbs per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Operating Humidity | 20% to 80% (non condensing) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
Why not buy this Smart-AVI HFX-KM-RX-S HDMI 2.0 KVM Fiber Receiver from HDTV Supply today?
Smart-AVI HFX-KM-RX-S Brochure
Smart-AVI HFX-KM-RX-S User Manual
