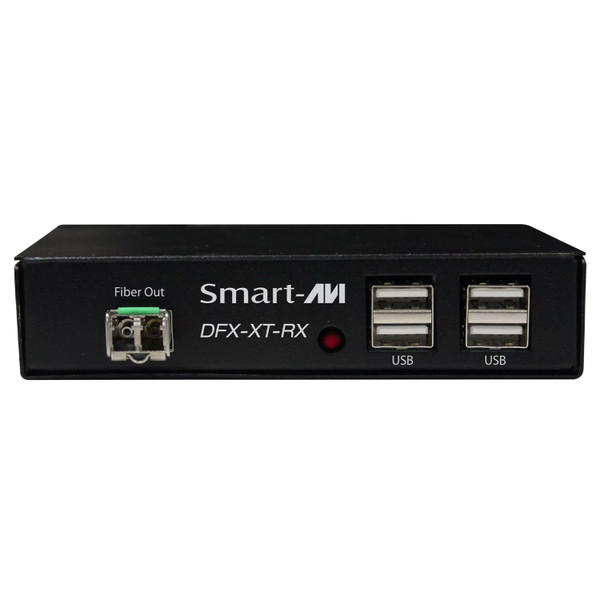

This Smart-AVI DFX-XT-RX-S HDMI, USB 2.0, Audio via Dual Fiber Receiver is a Single Head HDMI (3840 x 2160), USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 10 km (6.2 miles) away over a single conventional and inexpensive a dual fiber cable.
This new technology is superior to older HDMI extenders that require a special dual fiber shielded cable to go a short distance.
The DFX-XT is the first extender on the market to feature 3840 x 2160, USB 2.0 and full KVM extension on one cohesive system and is optimized for Full HD monitors with crystal-clear picture; excellent for detail driven work.
The DFX-XT extends keyboard-mouse signals for remote workflow management and offers uninterrupted emulation from the user’s transmitter unit.
This uninterrupted emulation prevents accidental disconnection or deactivation issues during mission critical operations.
The DFX-XT‘s unparalleled KVM extension technology makes it the perfect solution for extending servers in applications ranging from data processing to interactive conferencing.
Smart-AVI DFX-XT-RX-S HDMI, USB 2.0, Audio via Dual Fiber Receiver Feature:
- Extends HDMI up to 10 km (6.2 miles) in the Single Mode and up to 500 m (1640.42 feet) in the Multi Mode from the source
- HDCP Support
- Supports up to 3840 x 2160 digital video resolution @ 30 Hz
- USB Keyboard and Mouse extension
- Uncompressed Video
- External power adapter for transmitter and receiver unit
- Supports Stereo Sound
- Compatible with Windows, Mac and Linux Operating Systems
- Transparent USB 2.0 extension
Why not buy this Smart-AVI DFX-XT-RX-S HDMI, USB 2.0, Audio via Dual Fiber Receiver from HDTV Supply today?
Smart-AVI DFX-XT-RX-S HDMI, USB 2.0, Audio via Dual Fiber Receiver Specifications:
| VIDEO | |
|---|---|
| Format | HDMI2.0 |
| Video Resolution | Resolution: high definition 3840 x 2160 Color Depth: 24-bit color depth Latency: less than 1 ms |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| Input Interface | (1) HDMI 19-pin (female) |
| Output Interface | (1) HDMI 19-pin (female) |
| Max Output Distance | Up to 20 f |
| Equalization | Automatic |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| Data Rate | 1.65 Gbps per color |
| AUDIO | |
| Format | Stereo |
| Input Interface | 3.5 mm Jack Socket (female) |
| Output Interface | 3.5 mm Jack Socket (female) |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (2) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| SYSTEM | |
| Fiber Interface & Type | Single-Mode Fiber |
| Cable Requirements | Dual Fiber |
| Maximum Length | Single mode: 10 km (6.2 miles) Multi mode: 500 m (1640.42 feet) |
| OTHER | |
| Power | 100-240 VAC/ 5VDC @ 3A/15W |
| Dimensions | 7.8” W x 1.15” H x 3.65” D |
| Weight | 1 lb (.5 lbs per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Operating Humidity | 20% to 80% (non condensing) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
Why not buy this Smart-AVI DFX-XT-RX-S HDMI, USB 2.0, Audio via Dual Fiber Receiver from HDTV Supply today?
Smart-AVI DFX-XT-RX-S Brochure
Smart-AVI DFX-XT-RX-S User Manual
