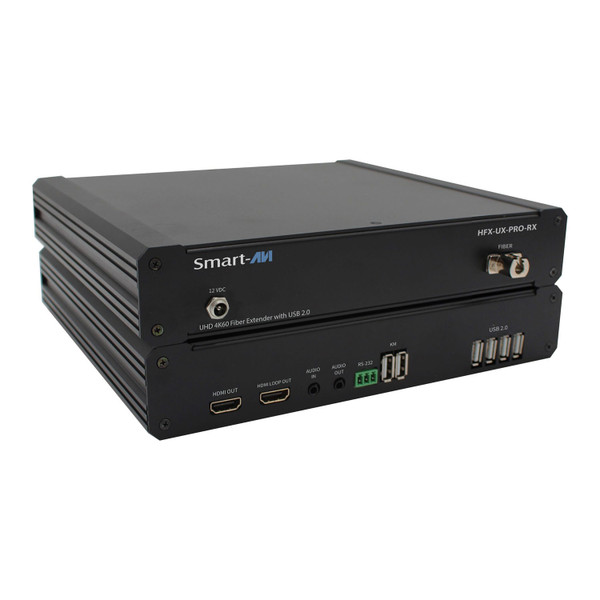

This Smart-AVI HFX-UX-PRO-RX-S 4K60 HDMI, USB 2.0, Audio over Single Fiber Receiver revolutionizes high-definition signal extension by delivering UHD 4K60 (3840 x 2160) video, full USB 2.0, keyboard-mouse, serial, and bidirectional audio over significant distances up to 2 km (1.24 miles) via a single-mode fiber.
This is achieved through an innovative single fiber cable connection, surpassing the limitations of traditional HDMI extenders that demand specialized dual fiber cables.
Smart-AVI HFX-UX-PRO-RX-S 4K60 HDMI, USB 2.0, Audio over Single Fiber Receiver Feature:
- Supports HDMI video up to 3840 x 2160 @ 60 Hz
- Uncompressed Video
- Supports EDID Emulation
- Transparent USB 2.0 Extension
- Separate USB KM Extension with Emulation
- Supports Bidirectional Stereo Audio
- Supports Single-Mode (2km) and Multimode Fiber 1000ft
- Compatible with Windows, Mac and Linux Operating Systems
Why not buy this Smart-AVI HFX-UX-PRO-RX-S 4K60 HDMI, USB 2.0, Audio over Single Fiber Receiver from HDTV Supply today?
Smart-AVI HFX-UX-PRO-RX-S 4K60 HDMI, USB 2.0, Audio over Single Fiber Receiver Specifications:
| VIDEO | |
|---|---|
| Format | HDMI 2.0 |
| Video Resolution | Resolution: UHD 3840 x 2160 @ 60Hz Color Depth: 24-bit color depth |
| Video Bandwidth | Single-link 340 MHz (10.2 Gbps) |
| Input Interface (TX) | (1) HDMI 19-pins (female) (1) HDMI 19-pins (female) (LOOP) |
| Output Interface (RX) | (1) HDMI 19-pins (female) (1) HDMI 19-pins (female) (LOOP) |
| Max Output Distance | Up to 10 ft |
| Equalization | Automatic |
| Input TMDS Signal | 1.2 Volts [peak-to-peak] |
| Input DDC Signal | 5 Volts [peak-to-peak, TTL] |
| Data Rate | 1.65 Gbps per color |
| AUDIO | |
| Format | Integrated HDMI Audio / Bidirectional Audio |
| Input Interface | Integrated HDMI / 3.5mm Bidirectional Audio |
| Output Interface | Integrated HDMI / 3.5mm Bidirectional Audio |
| USB | |
| Input Interface (TX) | (1) USB Type B |
| Output Interface (RX) | (2) USB 1.1 Type A for KM Devices; (4) USB 2.0 Type A Transparent |
| Keyboard and mouse | Keyboard and mouse emulation |
| SYSTEM | |
| Fiber Interface & Type | Single-Mode LC-LC Fiber |
| Cable Requirements | Single LC Fiber |
| Maximum Length | Single mode: 2 km (1.2 miles) Multi mode: 300 m (1000 feet) |
| OTHER | |
| Power | 100-240 VAC/ 12VDC @ 3A/15W |
| Dimensions | 9.5″ W x 1.7″ H x 8.6″ D |
| Weight | 3.6 lb (1.8 lbs per unit) |
| Approvals | UL, CE, ROHS Compliant |
| Environmental Operating Temperature | +32 to +104°F (0 to +40°C) |
| Environmental Operating Humidity | 20% to 80% (non condensing) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Storage Humidity | Up to 95% (No Condensation) |
| Compliance EMC | FCC (Class A), CE (Class A), ICES-003 |
| Environmental Compliance | RoHS2 (CE) |
| Support Warranty | 1-year |
