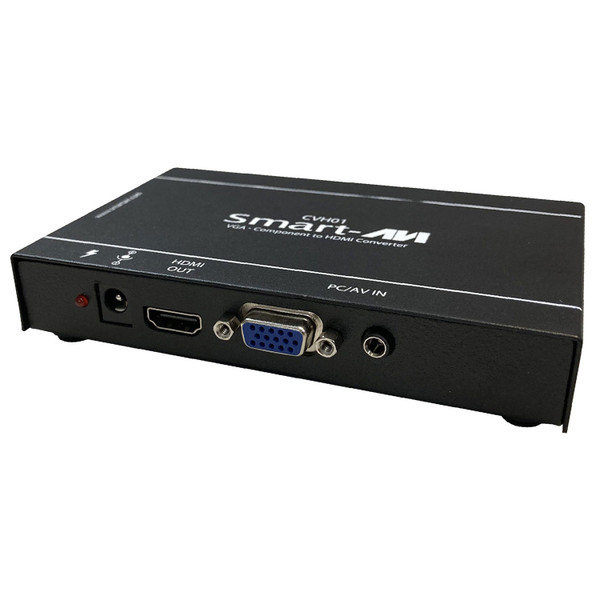

This Smart-AVI CVH-01-S V2 VGA Video with Audio to HDMI Converter converts analog VGA Video and audio to HDMI. The CVH-01 V2 is the perfect solution for Home Theater, PC networking, conference center systems, point of sale, camera surveillance and much more.
Setup and installation is simple to follow and requires no additional software to complete.
The CVH-01 V2 connects old systems to newer HDMI displays, converts analog video signals to digital HDMI signals; it can even be used as VGA to HDMI converter!
Smart-AVI CVH-01-S V2 VGA Video with Audio to HDMI Converter Feature:
- Integrated scaler - View any source at 1080p
- Connects old systems to newer HDMI displays
- Can be used as VGA to HDMI converter
- Highly precise 10-bit A/D conversion of each color channel
- Ensures to send high-definition signal without signal loss
- Supports Plug-and-play function, no software installation required
- Supports single high-definition display for multiple sources
Why not buy this Smart-AVI CVH-01-S V2 VGA Video with Audio to HDMI Converter from HDTV Supply today?
Smart-AVI CVH-01-S V2 VGA Video with Audio to HDMI Converter Specifications:
| VGA VIDEO INPUT | |
|---|---|
| Format | VGA |
| Resolution | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (24/25/30Hz) |
| DDC | via AUX |
| Input Equalization | Automatic |
| Input Cable Length | Up to 25 ft. |
| Output Cable Length | Up to 25 ft. |
| HDMI VIDEO OUTPUT | |
| Format | HDMI 1.3 Supported |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution | 480i, 480p, 720i, 720p, 1080i, 1080p (24/25/30Hz) |
| Output Interface | (1) HDMI (7.1 Channel audio and video) |
| Connector | Type A (19-Pin Female) |
| Maximum Distance | 25 ft. |
| AUDIO | |
| Signal Type | DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Input Interface | (1) 3.5mm Audio In (Female) |
| OTHER | |
| Power | Ext. 100-240 VAC/5VDC4A @10W |
| Dimensions | 2.5" W x 7/8" H x 2 1/4" D |
| Weight | 0.5lb per V2 unit |
| Operating Temp. | 0-55 °C (32-131°F) |
| Storage Temp. | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
Why not buy this Smart-AVI CVH-01-S V2 VGA Video with Audio to HDMI Converter from HDTV Supply today?
Smart-AVI CVH-01-S V2 Brochure
Smart-AVI CVH-01-S V2 User Manual
