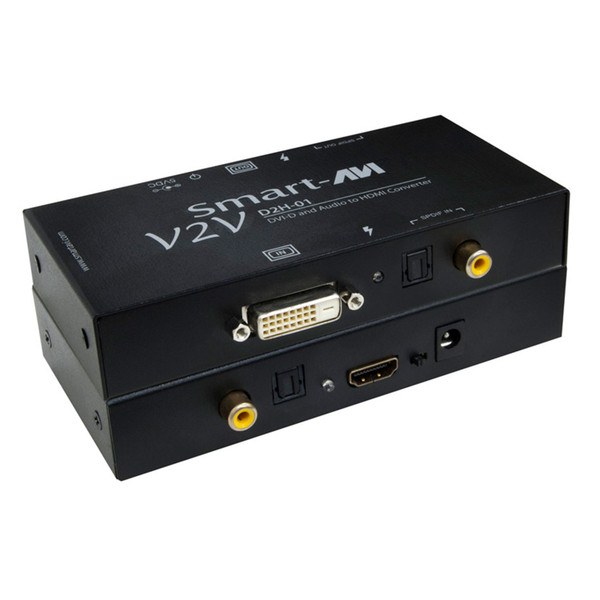

This Smart-AVI V2V-D2H-01-S DVI-D & Audio to HDMI Converter converts DVI-D Video with S/PDIF Stereo Digital Audio to HDMI.
Smart-AVI V2V-D2H-01-S DVI-D & Audio to HDMI Converter Feature:
- Converts One DVI+ SPDIF input signal to one HDMI 1.1 signal
- Supports DVI-D input
- Supports audio SPDIF input
- HDMI output : Supports up to 1080p/60HZ, same format as input
- HDCP 1.1 protocol compliant
- Supports CEC
- Audio formats supported : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- LED indication
- Supports output up to 60 feet over AWG26 cable
- No loss of quality
- Installs in minutes
Why not buy this Smart-AVI V2V-D2H-01-S DVI-D & Audio to HDMI Converter from HDTV Supply today?
Smart-AVI V2V-D2H-01-S DVI-D & Audio to HDMI Converter Specifications:
| DVI-D VIDEO | |
|---|---|
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface | DVI-D 29-pin female |
| Resolution | Up to 1920 x 1200 @60Hz |
| DDC | 5 volts p-p(TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| SPDIF/COAX AUDIO | |
| Signal Type | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Output Interface | (1) SPDIF Optical (1) SPDIF COAX |
| HDMI VIDEO | |
| Format | HDMI 1.3b [Deep Color, xvYcc color space supported] |
| DVI Compliance | Single-link DVI-D 1.1 |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution | 480i,480p,720i,720p,1080i,1080p |
| Output Interface | (1) HDMI[7.1ch audio & video] |
| Connector | Type A[19-pin female] |
| Maximum Distance | 25 ft. |
| OTHER | |
| Power | External 100-240 VAC/5VDC2A @10W |
| Dimensions | 3.5 in W x 2.75 in H x 1.25 in D |
| Weight | 0.35 lb |
| Operating Temp. | 0-55 °C (32-131°F) |
| Storage Temp. | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
