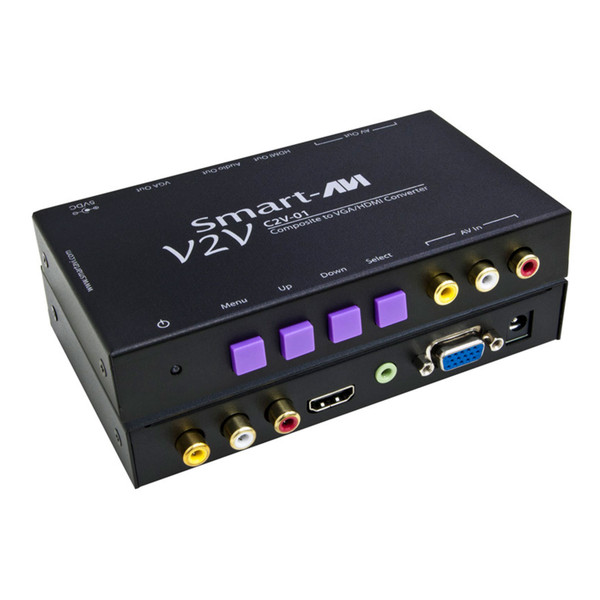

This Smart-AVI V2V-C2V-01-S Composite to VGA Converter with HDMI converts Composite Video to VGA with HDMI Output and Stereo Audio. The unit also has composite outputs for other composite devices.
Smart-AVI V2V-C2V-01-S Composite to VGA Converter with HDMI Feature:
- Specially designed for computer VGA/ HDMI monitors and LCD color monitors
- Composite Video Input via RCA
- Video(CVBS), VGA ,HDMI Output
- Supports NTSC, PAL video system
- Input video system 50 to 60Hz frame rate detection (NTSC/PAL)
- Supports VGA, HDMI resolutions: 800×600, 1024×768, 1280×720, 1920×1080@60Hz
- Supports HDMI resolutions: 720P, 1080I, 1080P
- Built in stereo audio input and output
- Any adjustment will be auto memory
- Frequency output: 60Hz, 75Hz, 85Hz
- On screen display function: Resolution, Brightness, Contrast, Saturation, Hue
Why not buy this Smart-AVI V2V-C2V-01-S Composite to VGA Converter with HDMI from HDTV Supply today?
Smart-AVI V2V-C2V-01-S Composite to VGA Converter with HDMI Specifications:
| COMPOSITE VIDEO | |
|---|---|
| Input Format | NTSC/PAL/SECAM |
| Output Formats | NTSC/PAL/SECAM |
| Resolution | 800 x 600, 1024 x 768, up to 1280 x 1024@60Hz |
| Input Interface | (3) RCA Female |
| Output Interface | (3) RCA Female |
| VGA VIDEO | |
| Format | RGBHV, RGsB, YUV, Y/C, CVBS |
| Resolution | Up to 1920 x 1200 VGA, SVGA, xGA, SxGA, UxGA, WUxGA |
| Output Interface (Rx) | (1) HD-15 Female |
| HDMI VIDEO | |
| Format | HDMI 1.3b [Deep Color, xvYcc color space supported] |
| DVI Compliance | Single-link DVI-D 1.1 |
| HDCP Compliance | 1.0/1.1 |
| Video Bandwidth | Single-link 340MHz [10.2Gbps] |
| Resolution | 480i,480p,720i,720p,1080i,1080p |
| Output Interface | (1) HDMI[7.1ch audio & video] |
| Connector | Type A[19-pin female] |
| Maximum Distance | 25 ft. |
| AUDIO | |
| Signal Type | Stereo Unbalanced |
| Ouput Interface | 3.5 mm Jack Socket (Female) |
| OTHER | |
| Power | External 100-240 VAC/5VDC2A @10W |
| Dimensions | 5.75 in W x 1.25 in H x 3.25 in D |
| Weight | 1 lb |
| Operating Temp. | 0-55 °C (32-131°F) |
| Storage Temp. | -20-85 °C (-4-185 °F) |
| Humidity | Up to 95% |
Why not buy this Smart-AVI V2V-C2V-01-S Composite to VGA Converter with HDMI from HDTV Supply today?
Smart-AVI V2V-C2V-01-S Brochure
Smart-AVI V2V-C2V-01-S User Manual
