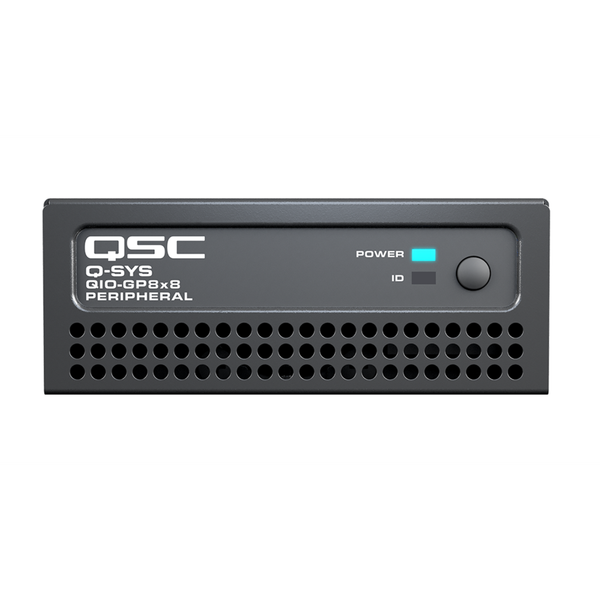

QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander

QSC

QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander
$490.00
Part Number:
QSC-QIO-GP8x8
Condition:
New
Availability:
3-5 Days
1:
8 Logic Inputs & Outputs
2:
Power over Ethernet
3:
Simple Drag-&-Drop Integration
4:
Surface-Mountable or Rack-Mountable
5:
Free USA Shipping
6:
QSC Factory Warranty
7:
Ships with the Latest Firmware
8:
QSC Certified

This QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander expands your Q-SYS system’s capabilities to enable streamlined interoperability with non-networked control devices via GPIO connectivity.

By separating local I/O from processing hardware, the QIO Series offers modular and easily scalable network I/O to support your desired topology.

Network GPIO connectivity where you need it: The QIO-GP8x8 allows you to provide your Q-SYS system with greater flexibility to deploy GPIO control connectivity where it’s most convenient.

The QIO-GP8x8 provides eight (8) logic inputs and eight (8) logic outputs to provide further GPIO expansion to systems needing to interface with occupancy sensors, push buttons, LED indicators, buzzers, and more.

Additionally, each QIO Series I/O expander features a compact form factor that can be rack- or surface-mounted.

Expanded I/O customization: The QIO Series presents a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures.

The QIO Series also lets you customize your I/O configuration and complements newer Q-SYS Core models designed with fewer onboard I/O options, including Core Nano, Core 8 Flex, and NV-32-H (Core Capable).

Simplicity and scalability: Daisy-chain up to four QIO Series devices on a single network run with local daisy-chained DC power to conserve network ports, reduce rack clutter, and simplify future expansion without pulling additional network cables.

Alternatively, QIO Series devices support Power over Ethernet (PoE), providing single-cable connectivity when devices are not daisy-chained.

Designed for Q-SYS: The QIO Series delivers native network I/O customization for Q-SYS, a cloud-manageable audio, video, and control platform designed to provide scalable and flexible AV solutions.

READ MORE

QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander Features:

  • Native network GPIO connectivity solution for Q-SYS
  • Eight (8) logic inputs and eight (8) logic outputs
  • Power over Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run with local daisy-chained DC power
  • Drag-and-drop integration and management via Q-SYS Designer Software and Q-SYS Reflect
  • Surface- or rack-mountable (1RU, quarter-rack width)
  • Includes surface-mounting hardware
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why not buy this QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander today?

Ask a Question About the QSC QIO-GP8x8

Have questions about the QSC QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander? Contact our team for product information and compatibility assistance.

Call: 833-WOLFPACK (833-965-3722)

Website: HDTV Supply

QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander Specifications:

Specifications QIO-GP8x8
GPIO Ports
General Purpose Inputs 0–24 VDC analog input, digital, or contact closure; configurable pull-up to +12 V
General Purpose Outputs Open collector, 24 VDC at 200 mA maximum sink; internal pull-up to 3.3 V
GPIO 12 VDC Power Pins 12 VDC output at 100 mA maximum per pin, with resettable fuse
Other Connectors
External Power Supply 24 VDC nominal, 2.5 A on Euro connector, with second connector for daisy-chaining. QIO-PSU power supply sold separately.
LAN (PoE) Gigabit LAN connection for Q-LAN with PoE support
PoE Specification IEEE 802.3af Type 1
LAN (Thru) Ethernet daisy-chaining
General
Dimensions 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight 1.18 lb (0.54 kg)
Mounting Options Surface- and wall-mountable with included hardware. Rack-mountable at 1RU, quarter-rack width, using the separately sold QIO-RMK rack kit.
Environmental
Ambient Operating Temperature Range 0°C to +50°C. When installed in a multi-unit rack assembly with units above and below, the maximum operating temperature should not exceed 40°C.
Humidity 0%–85% through 30°C, non-condensing
Storage Temperature -20°C to +70°C
Compliance FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, China RoHS Directive GB/T26572, EAC, UL, C-UL, NOM-019

Why not buy this QSC Q-SYS QIO-GP8x8 Q-SYS Network 8 Logic I/O Expander today?

QSC Q-SYS QIO-GP8x8 Manuals and Documentation

QSC QIO-GP8x8 User Manual

QSC QIO-GP8x8 Specification Sheet

QSC QIO-GP8x8 Questions & Answers

The QSC QIO-GP8x8 is a Q-SYS network GPIO expander that adds eight logic inputs and eight logic outputs to a compatible Q-SYS system.
It provides eight general-purpose logic inputs and eight general-purpose logic outputs for supported control and monitoring applications.
Depending on the electrical requirements and configuration, it can interface with supported devices such as occupancy sensors, push buttons, LED indicators, and buzzers.
Yes. The QIO-GP8x8 supports IEEE 802.3af Type 1 Power over Ethernet through compatible network equipment.
Yes. Up to four QIO Series devices can be daisy-chained on a single network run, using the supported local DC power daisy-chain arrangement.
The general-purpose inputs support 0–24 VDC analog input, digital input, or contact closure. A pull-up to +12 V can be configured as specified in the product documentation.
The general-purpose outputs are open collector, rated for a maximum 24 VDC and 200 mA sink, with an internal pull-up to 3.3 V. Check the manual before connecting external equipment.
Yes. It supports surface and wall mounting with the included hardware. Rack mounting requires the separately sold QIO-RMK rack kit.
The QIO-GP8x8 measures 5.5 x 4.25 x 1.59 inches (139.7 x 108 x 40.4 mm) and weighs 1.18 lb (0.54 kg).
The QIO-PSU power supply is sold separately. The device also supports PoE through compatible network equipment.
A Q-SYS GPIO expander adds general-purpose logic inputs and outputs to a compatible Q-SYS installation, allowing the system to monitor external signals and control supported devices.
Yes, it is designed to support GPIO integration with devices such as occupancy sensors and push buttons, provided their electrical characteristics and wiring meet QSC's specifications.
The QIO-GP8x8 is designed for integration and management through Q-SYS Designer Software and Q-SYS Reflect. Confirm compatibility with your system configuration and software version in current QSC documentation.
Allow for suitable ventilation and observe the manufacturer's temperature limits. The supplied specifications state that when units are installed above and below the QIO-GP8x8 in a multi-unit rack assembly, the maximum operating temperature should not exceed 40°C.
Contact HDTV Supply for current availability and purchasing assistance. Call 833-WOLFPACK (833-965-3722) for help with your Q-SYS product requirements.
