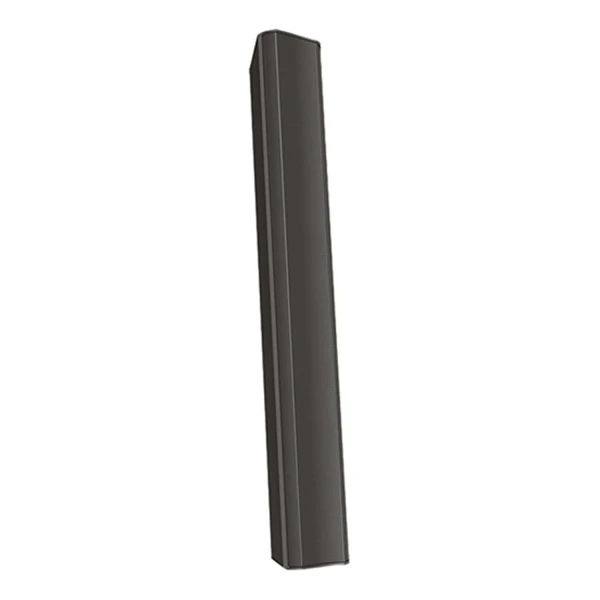

QSC AD-S162T-BK AcousticDesign Series 16-Driver Column Surface-Mount Loudspeaker (Black)
The QSC AD-S162T-BK AcousticDesign Series 16-Driver Column Surface-Mount Loudspeaker is a premium full-range column loudspeaker designed for foreground and background audio applications, including acoustically challenging environments.
Supporting 70 V, 100 V, and 8-ohm bypass operation, this loudspeaker provides flexible installation options. Its unique pan-and-tilt mounting system allows multiple positioning configurations, including downward tilt up to 20 degrees, while keeping the loudspeaker close to the wall.
Features
- 16 full-range 2.75-inch drivers in a slim column enclosure.
- Selectable broad or narrow beam contour for flexible sound coverage.
- 70 V/100 V transformer operation with 8-ohm low-impedance bypass.
- Rugged coated aluminum construction with a paintable enclosure and grille.
- IP54 rating for dust and splash resistance.
- Powder-coated grille and weather-treated cones.
- Low-saturation transformer for distributed audio applications.
- Available EASE, CLF, CAD, and BIM resources for system design.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Choose the QSC AD-S162T-BK from HDTV Supply for a slim column loudspeaker solution with flexible installation and distributed-audio capabilities. Contact our team for product guidance and assistance with your application.
Ask a Question
Have questions about the QSC AD-S162T-BK AcousticDesign Series Column Loudspeaker? Contact our team for assistance with product details, compatibility, and installation considerations.
QSC AD-S162T-BK Specifications
| General | |
|---|---|
| Product Type | Passive column loudspeaker |
| Model | AD-S162T-BK |
| Enclosure Color | Black, RAL 9011 (verify against the manufacturer listing before publishing) |
| Enclosure Material | Coated aluminum |
| Speaker System | |
| Speaker Type | Passive |
| Nominal Output Power | 200 W |
| Frequency Response | 90–17,000 Hz |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 250 W |
| Maximum SPL | 112 dB |
| Sensitivity | 89 dB |
| Transformer / Operation | 70 V/100 V or 8-ohm operation |
| Coverage | 160° × 15° |
| Recommended Placement | Indoor and outdoor applications |
| Drivers | |
| Driver Configuration | 16 × 2.75-inch full-range paper-cone drivers |
| Installation and Compliance | |
| Included Accessory | Wall-mounting bracket |
| Ingress Protection | IP54 |
| Dimensions and Weight | |
| Width | 5.2 in |
| Depth | 5 in |
| Height | 45.7 in |
| Product Weight | 26.01 lb |
| Packaging Information | |
| Package Weight | 32 lb (provided packaging data; confirm before publishing) |
| Box Dimensions (L × W × H) | 54.5 × 12.25 × 9.75 in |
QSC AD-S162T-BK Manuals and Resources
Q/A
Q1: What is the QSC AD-S162T-BK?
The QSC AD-S162T-BK is an AcousticDesign Series 16-driver column surface-mount loudspeaker designed for installed audio systems.
Q2: How many drivers does this loudspeaker have?
It features 16 full-range 2.75-inch drivers.
Q3: Can the AD-S162T-BK operate on a 70 V or 100 V system?
Yes. The supplied specifications identify 70 V and 100 V transformer operation, as well as an 8-ohm bypass mode.
Q4: What is the nominal impedance?
The nominal impedance in low-impedance mode is 8 ohms.
Q5: What is the frequency response?
The supplied specifications list a frequency response of 90 Hz to 17 kHz.
Q6: What is the maximum sound pressure level?
The supplied specifications list a maximum SPL of 112 dB.
Q7: What is the loudspeaker's coverage pattern?
The supplied specifications list coverage of 160° × 15°. The model also includes a selectable broad/narrow beam contour feature.
Q8: Is the AD-S162T-BK suitable for outdoor use?
The provided specifications identify indoor and outdoor placement and an IP54 rating. Confirm the installation environment and exposure requirements against QSC's documentation before installation.
Q9: Does the loudspeaker include a mounting bracket?
Yes. The supplied product information lists a wall-mounting bracket as an included accessory.
Q10: What are the loudspeaker's dimensions and weight?
The supplied specifications list dimensions of 5.2 inches wide, 5 inches deep, and 45.7 inches high, with a product weight of 26.01 pounds.
Q11: What applications is the QSC AD-S162T-BK designed for?
It is designed for installed foreground and background audio applications, including environments where a column loudspeaker and flexible aiming are useful.
Q12: Does the QSC AD-S162T-BK support both distributed and low-impedance audio systems?
Yes. The supplied specifications identify 70 V/100 V transformer operation and an 8-ohm bypass mode. Verify the correct connection and settings in the user manual.
Q13: What installation features help with aiming the AD-S162T-BK?
Its pan-and-tilt mounting system supports multiple positioning options, including up to 20 degrees of downward tilt according to the supplied product description.
Q14: What should I verify before purchasing the QSC AD-S162T-BK?
Confirm the required system voltage or impedance, amplifier compatibility, mounting location, coverage needs, enclosure finish, and current manufacturer specifications.
Q15: Where can I get assistance with the QSC AD-S162T-BK?
Contact HDTV Supply customer service for help with product information and purchasing questions at customerservice@hdtvsupply.com.
Warranty Information
Please contact HDTV Supply or QSC to confirm the applicable warranty coverage for the QSC AD-S162T-BK and the terms associated with your purchase.
