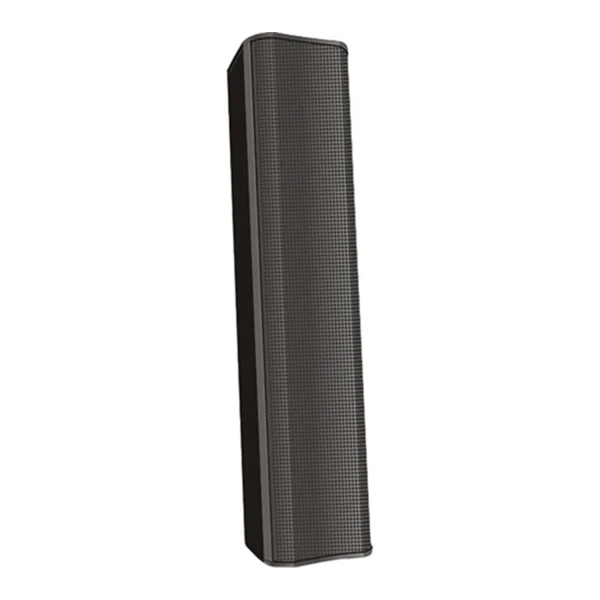

QSC AD-S802T-BK AcousticDesign Series 8-Driver Column Surface-Mount Loudspeaker (Black)
The QSC AD-S802T-BK AcousticDesign Series 8-Driver Column Surface-Mount Loudspeaker is a full-range passive loudspeaker designed for foreground and background audio applications in indoor and outdoor environments. Its slim column design offers an unobtrusive appearance while delivering consistent sound coverage in acoustically challenging spaces.
Supporting 70 V, 100 V, and 8-ohm operation, this loudspeaker offers installation flexibility for commercial sound systems. Its adjustable pan/tilt mounting system allows multiple positioning options while keeping the enclosure close to the wall.
Features
- Eight 2.75-inch full-range paper-cone drivers in a slim column enclosure.
- Supports 70 V, 100 V, and 8-ohm low-impedance operation.
- 160° × 20° nominal coverage for a broad horizontal sound field.
- Adjustable pan/tilt mounting system with downward tilt up to 20°.
- Rugged coated-aluminum enclosure with a paintable grille and enclosure.
- IP54 rating for dust and splash resistance, as specified by the manufacturer.
- Low-saturation 70 V/100 V transformer for distributed audio installations.
- Includes a wall-mounting bracket.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Choose the QSC AD-S802T-BK from HDTV Supply for a versatile column loudspeaker solution for commercial audio installations. Contact our team for assistance with system compatibility and installation requirements.
Ask a Question
Need help selecting the QSC AD-S802T-BK for your audio installation? Contact HDTV Supply for assistance with specifications, amplifier compatibility, mounting, and system configuration.
QSC AD-S802T-BK Specifications
| General | |
|---|---|
| Model | AD-S802T-BK |
| Product Type | Column surface-mount loudspeaker |
| Enclosure Color | Black, RAL 9011 |
| Enclosure Material | Coated aluminum |
| Speaker System | |
| Speaker Type | Passive |
| Nominal Output Power | 120 W |
| Frequency Response | 90 Hz–17 kHz |
| Nominal Impedance | 8 ohms |
| Recommended Amplifier Power | 120 W |
| Maximum SPL | 108 dB |
| Sensitivity | 87 dB |
| Transformer / Operation | 70 V / 100 V or 8-ohm operation |
| Coverage | 160° × 20° |
| Recommended Placement | Indoor and outdoor installations, subject to installation requirements |
| Drivers and Construction | |
| Driver Configuration | 8 × 2.75-inch full-range paper-cone drivers |
| Grille / Enclosure Finish | Paintable grille and enclosure |
| Mounting System | Adjustable pan/tilt wall-mount system |
| Included Accessories | Wall-mounting bracket |
| Ingress Protection | IP54 |
| Dimensions and Weight | |
| Width | 5.2 in |
| Depth | 5 in |
| Height | 23.4 in |
| Product Weight | 13.67 lb |
| Packaging Information | |
| Package Weight | 19 lb |
| Box Dimensions (L × W × H) | 32 × 12 × 10 in |
QSC AD-S802T-BK Manuals and Resources
Q/A
Q1: What is the QSC AD-S802T-BK?
The QSC AD-S802T-BK is an eight-driver AcousticDesign Series column loudspeaker designed for surface mounting in commercial audio installations.
Q2: How many drivers does this loudspeaker have?
The supplied specifications list eight 2.75-inch full-range paper-cone drivers.
Q3: What power does the AD-S802T-BK support?
The supplied specifications list a nominal output power of 120 W and recommended amplifier power of 120 W. Confirm amplifier matching and power ratings in the manufacturer's documentation.
Q4: Does it support 70 V and 100 V systems?
Yes. The supplied specifications identify 70 V, 100 V, and 8-ohm operation.
Q5: What is the frequency response?
The supplied specifications list a frequency response of 90 Hz to 17 kHz.
Q6: What is the loudspeaker's coverage angle?
The listed nominal coverage is 160° × 20°.
Q7: Can the loudspeaker be tilted downward?
Yes. Its pan/tilt mounting system is designed to provide multiple positioning options, including downward tilt up to 20°, according to the supplied product description.
Q8: Is the AD-S802T-BK suitable for outdoor use?
The supplied information lists an IP54 rating and indoor/outdoor placement. Confirm the environmental conditions, mounting location, and installation requirements before outdoor use.
Q9: What is the enclosure made of?
The supplied specifications identify a coated-aluminum enclosure with a paintable grille and enclosure.
Q10: What accessories are included?
The supplied specifications list a wall-mounting bracket.
Q11: What applications suit the QSC AD-S802T-BK?
Its column format and distributed-line compatibility make it a candidate for commercial foreground and background audio applications. Confirm coverage and system design requirements for the intended space.
Q12: Can this loudspeaker connect to a low-impedance amplifier?
The supplied specifications identify an 8-ohm operating mode. Verify the correct configuration and amplifier compatibility in the product manual before connecting the system.
Q13: Can the grille or enclosure be painted?
The supplied feature description identifies the grille and enclosure as paintable. Follow the manufacturer's instructions to avoid affecting performance or environmental protection.
Q14: What is the maximum sound pressure level?
The supplied specifications list a maximum SPL of 108 dB. Check the manufacturer's measurement conditions for the rating.
Q15: Where can I get help choosing the AD-S802T-BK?
Contact HDTV Supply at customerservice@hdtvsupply.com for assistance with product selection, amplifier compatibility, and installation planning.
Warranty Information
Please contact HDTV Supply or QSC to confirm the applicable warranty coverage for the QSC AD-S802T-BK and the terms associated with your purchase.
Reviews
Customer reviews for the QSC AD-S802T-BK will appear here when available.
