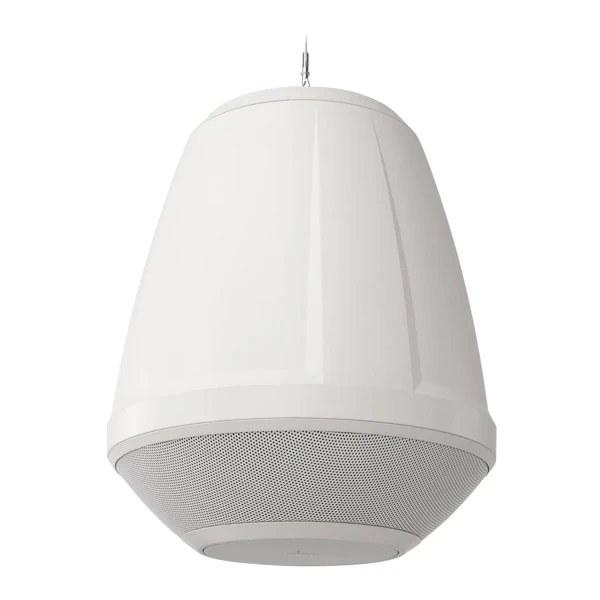

QSC AD-P.HALO-WH Sub/Satellite Pendant Loudspeaker System (White)

QSC

QSC AD-P.HALO-WH Sub/Satellite Pendant Loudspeaker System (White)
$910.00
Part Number:
QSC-AD-P.HALO-WH
Condition:
New
Availability:
3-5 Days
1:
Intrinsic Correction EQ Voicings
2:
200W RMS Power Handling
3:
70/100V with Multi-Tap Transformer
4:
40 Hz to 20 kHz Frequency Range
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-P.HALO-WH Sub/Satellite Pendant Loudspeaker System (White) is an integrated sub/satellite pendant loudspeaker designed for commercial background and foreground music applications. Its single-enclosure design combines low-frequency output and distributed high-frequency coverage for restaurants, bars, retail stores, gyms, hospitality venues, and other business environments.

The AD-P.HALO combines a 6.5-inch paper-cone subwoofer with four 2.75-inch satellite transducers in one pendant-mount enclosure, simplifying installation without requiring a separate subwoofer enclosure.

With 200W RMS power handling and a specified frequency range of 40Hz to 20kHz (-10 dB), the system is designed to deliver full-range music reproduction in commercial spaces.

Its integrated 70V/100V transformer supports distributed audio installations, while a 6-ohm bypass option allows low-impedance operation. Suspension hardware and fasteners are listed as included.

READ MORE

QSC AD-P.HALO-WH Features

  • Integrated sub/satellite design: Combines one 6.5-inch paper-cone subwoofer and four 2.75-inch satellite transducers in a single pendant enclosure.
  • Full-range music performance: Delivers 200W RMS power handling and a specified frequency range of 40Hz–20kHz (-10 dB).
  • Flexible amplifier integration: Supports 70V and 100V distributed audio systems with selectable transformer taps and a 6-ohm bypass setting.
  • Commercial installation design: Features an ABS enclosure, perforated metal grille, suspension mounting, and included suspension hardware and fasteners.

QSC Intrinsic Correction voicings are available through compatible Q-SYS processing and QSC processing amplifiers. Compatible processing equipment may be sold separately.

Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-P.HALO-WH from HDTV Supply?

Choose HDTV Supply for the QSC AD-P.HALO sub/satellite pendant loudspeaker system. Contact our team for assistance with product selection, amplifier compatibility, and commercial audio system requirements.

Ask a Question

Need help with the QSC AD-P.HALO-WH pendant loudspeaker system? Contact HDTV Supply for product information, compatibility guidance, and assistance with your audio application.

Phone: 833-WOLFPACK

Website: www.hdtvsupply.com

QSC AD-P.HALO-WH Specifications

Speaker System
Product Type Passive sub/satellite pendant loudspeaker system
Number of Included Speakers 1 integrated system
Speaker Configuration Integrated sub/satellite, listed as 2-way
Power Handling 200W RMS
Enclosure Type Bass-reflex
Power and Transformer
Supported Distributed Audio Systems 70V and 100V
70V Transformer Taps 100W / 50W / 25W / 12.5W (as supplied; verify against manufacturer documentation)
100V Transformer Taps 100W / 50W / 25W (as supplied; verify against manufacturer documentation)
Nominal Impedance 6 ohms
Minimum Impedance 4.9 ohms
Low-Impedance Operation 6-ohm transformer bypass
Drivers and Audio Performance
Satellite Drivers 4 × 2.75-inch (69.85 mm) transducers
Subwoofer Driver 6.5-inch (165.1 mm) paper-cone woofer
Subwoofer Voice Coil Dual voice coil (as listed)
High-Frequency Driver Magnet Neodymium (as listed)
Frequency Range 40Hz–20kHz (-10 dB)
Maximum SPL (Continuous) 105 dB
Maximum SPL (Peak) 111 dB
Sensitivity 86 dB
Coverage Angle 110° conical
Directivity Factor (Q) 6
Directivity Index (DI) 8 dB
Crossover Frequency 250Hz
Connectivity
Speaker Input 1 × locking 4-pin block speaker input (as listed)
Speaker Thru 1 × locking 4-pin block speaker thru (as listed)
Additional Connection Screw-terminal input/thru (as listed)
Physical and Environmental
Color White model designation; supplied specifications list black. Confirm the actual variant before publishing.
Construction ABS enclosure with perforated metal grille
Mounting Pendant suspension
Environmental Rating IP54 (as supplied; verify against manufacturer documentation)
Certifications UL 1480A and CE (as listed)
Dimensions 17 × 13.4 inches (431.8 × 340.36 mm, as supplied; confirm dimension orientation)
Product Weight 22.5 lb (10.2 kg)
Packaging Information
Package Weight 27.32 lb
Box Dimensions (L × W × H) 21.1 × 17.8 × 17.1 inches

QSC AD-P.HALO-WH Manuals

QSC AD-P.HALO-WH User Manual (PDF)

Questions & Answers

The QSC AD-P.HALO is an integrated sub/satellite pendant loudspeaker system that combines a 6.5-inch subwoofer and four 2.75-inch satellite transducers in one enclosure. Confirm the finish of the specific WH model with the seller before ordering.

The supplied specifications identify this system as passive, so it requires a compatible external amplifier.

The supplied product specifications list a power handling rating of 200W RMS. Select compatible amplification and wiring for the intended operating mode.

Yes. The supplied specifications list a transformer for 70V and 100V distributed audio installations, along with a 6-ohm bypass option. Verify the tap settings in the current manufacturer's manual before installation.

The supplied specifications list 100W, 50W, 25W, and 12.5W taps for 70V, and 100W, 50W, and 25W taps for 100V. Confirm these settings against QSC's current documentation before connecting the speaker.

The supplied frequency range is 40Hz to 20kHz at -10 dB, providing low-frequency extension and high-frequency output for music playback.

The supplied specifications list 110-degree conical coverage. Room acoustics, mounting height, and speaker placement affect actual coverage in an installation.

The supplied specifications list a locking four-pin block speaker input, a locking four-pin speaker thru connection, and screw-terminal input/thru connections. Confirm the connector configuration in the manufacturer's manual.

It is designed for business-music environments such as bars, restaurants, retail stores, gyms, clubs, and hospitality venues where integrated low-frequency support and distributed music coverage are desired.

The supplied product description states that suspension hardware and fasteners are included. Review the product package details and installation manual to confirm the complete contents and mounting requirements.

The supplied specifications include 200W RMS power handling, one 6.5-inch subwoofer, four 2.75-inch satellite transducers, a 40Hz–20kHz frequency range (-10 dB), and 110-degree conical coverage.

The supplied specifications list a 6-ohm nominal impedance and a 6-ohm transformer-bypass mode. Confirm the correct selector setting and amplifier compatibility using the manufacturer's instructions.

The system integrates a 6.5-inch subwoofer with four satellite transducers in one enclosure, so a separate subwoofer is not inherently required. Whether additional bass reinforcement is needed depends on the room, desired sound level, and system design.

The supplied product information lists an IP54 rating and UL 1480A and CE compliance. Confirm the exact model variant and applicable certifications in the current manufacturer's documentation before specifying the product.

Contact HDTV Supply at 833-WOLFPACK or visit hdtvsupply.com for product information and assistance with your commercial audio system requirements.

Warranty Information

Warranty coverage is subject to the applicable manufacturer terms and purchase conditions. Contact HDTV Supply or consult QSC's current warranty documentation to confirm the warranty for the exact AD-P.HALO model and finish.

Customer Reviews

Have you used the QSC AD-P.HALO sub/satellite pendant loudspeaker system? Share your experience to help other customers evaluate its performance for commercial music installations.
