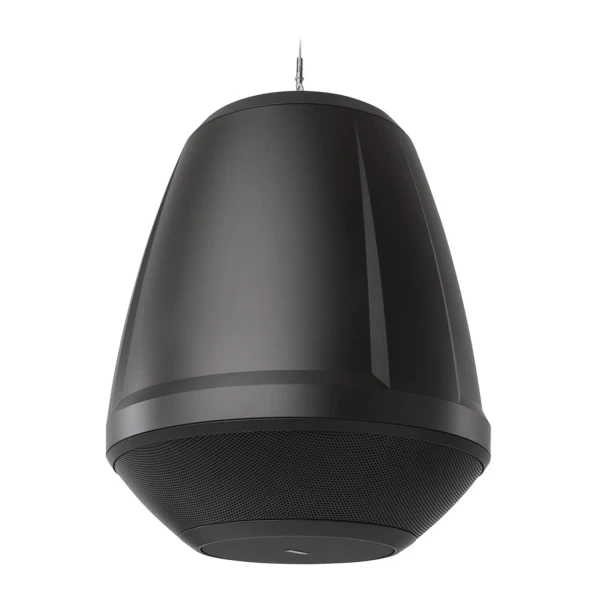

QSC AD-P.HALO-BK Sub/Satellite Pendant Loudspeaker System (Black)

QSC

QSC AD-P.HALO-BK Sub/Satellite Pendant Loudspeaker System (Black)
$910.00
Part Number:
QSC-AD-P.HALO-BK
Condition:
New
Availability:
3-5 Days
1:
Intrinsic Correction EQ Voicings
2:
200W RMS Power Handling
3:
70/100V with Multi-Tap Transformer
4:
40 Hz to 20 kHz Frequency Range
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-P.HALO-BK Sub/Satellite Pendant Loudspeaker System (Black) is an integrated pendant loudspeaker solution designed for business-music installations in restaurants, bars, retail stores, gyms, clubs, and hospitality environments.

Featuring one 6.5-inch subwoofer and four 2.75-inch satellite transducers in a single enclosure, the AD-P.HALO delivers full-range sound without requiring a separate subwoofer. Its 200W RMS power handling and 40 Hz to 20 kHz frequency range support music-focused environments where sound quality matters.

The integrated design requires no assembly, and the included suspension hardware and fasteners help simplify installation.

QSC AD-P.HALO-BK Features

  • Integrated Sub/Satellite Design: Combines a 6.5-inch subwoofer and four 2.75-inch satellite transducers in one pendant enclosure.
  • Powerful Audio Performance: Handles 200W RMS and provides a 40 Hz to 20 kHz frequency range.
  • Flexible Installation: Includes suspension hardware and fasteners for convenient pendant mounting.
  • Installation-Ready Construction: Features a rugged ABS enclosure, IP54 ingress rating, and 70V/100V transformer operation with a 6-ohm bypass.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-P.HALO-BK from HDTV Supply?

Shop HDTV Supply for the QSC AD-P.HALO-BK Sub/Satellite Pendant Loudspeaker System (Black). Contact our team for product information and assistance with your audio installation needs.

Ask a Question

Have questions about the QSC AD-P.HALO-BK Sub/Satellite Pendant Loudspeaker System? Contact HDTV Supply for product information and assistance.

Phone: 833-WOLFPACK

Contact HDTV Supply

QSC AD-P.HALO-BK Specifications

Speaker
Active/Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling 200W RMS
70V Transformer Taps 100W / 50W / 25W / 12.5W
100V Transformer Taps 100W / 50W / 25W
Impedance 6 Ohms nominal; 4.9 Ohms minimum
Enclosure Type Bass-Reflex
Drivers
HF Drivers 4 × 2.75 inches (69.85 mm)
LF Driver 6.5 inches (165.1 mm), paper cone
LF Voice Coil Dual
HF Magnet Neodymium
Performance
Frequency Range 40 Hz–20 kHz (-10 dB)
Maximum SPL (Continuous) 105 dB
Maximum SPL (Peak) 111 dB
Sensitivity 86 dB
Coverage Angle 110° conical
Directivity Factor (Q) 6
Directivity Index 8 dB
Crossover 250 Hz
Connectivity
Speaker Input 1 × locking 4-pin block connector
Speaker Thru 1 × locking 4-pin block connector
Additional Connections Screw-terminal input/thru
Physical
Color Black
Mounting Suspension / pendant mount
Construction ABS enclosure, perforated metal grille
Dimensions 17 × 13.4 inches (431.8 × 340.36 mm)
Product Weight 22.5 lb (10.2 kg)
Ingress Rating IP54
Compliance UL1480A, CE

QSC AD-P.HALO-BK Manuals

QSC AD-P.HALO User Manual (PDF)

Questions & Answers

The QSC AD-P.HALO-BK is a black, integrated sub/satellite pendant loudspeaker system designed for commercial background music and hospitality applications.

The speaker is rated for 200W RMS power handling.

It combines one 6.5-inch subwoofer with four 2.75-inch satellite transducers in a single enclosure.

The specified frequency range is 40 Hz to 20 kHz at -10 dB.

The system includes an integrated 6.5-inch subwoofer, so a separate subwoofer is not necessarily required. Suitability depends on the room and desired bass level.

Yes. It supports 70V and 100V constant-voltage systems, with transformer tap settings listed in the specifications.

The supplied specifications list a 6-ohm nominal impedance and a 4.9-ohm minimum impedance. Confirm the correct bypass configuration in the user manual before installation.

Yes. The supplied product information states that suspension hardware and fasteners are included.

It is designed for commercial music environments such as retail stores, restaurants, bars, gyms, clubs, and hospitality venues.

The AD-P.HALO-BK model is black.

Key features include a 200W RMS rating, integrated sub/satellite design, 40 Hz to 20 kHz frequency range, 70V/100V transformer operation, IP54 rating, and included suspension hardware.

The provided specifications list a maximum SPL of 105 dB continuous and 111 dB peak.

The listed coverage angle is 110 degrees conical.

The supplied specifications list a locking 4-pin block speaker input, a locking 4-pin block speaker thru connection, and screw-terminal input/thru connections.

You can access the user manual in the Manuals tab on this product page.
