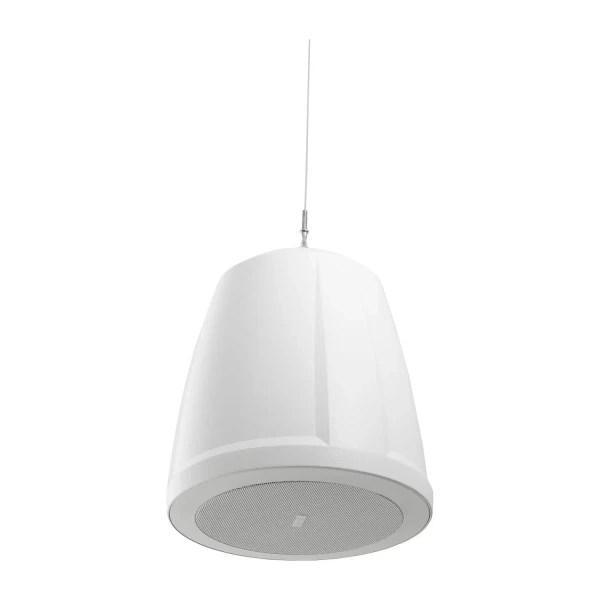

QSC AD-P4T-WH AcousticDesign Series 4.5 Inch 2-Way 30W Pendant-Mount Loudspeaker (White)

QSC

QSC AD-P4T-WH AcousticDesign Series 4.5 Inch 2-Way 30W Pendant-Mount Loudspeaker (White)
$330.00
Part Number:
QSC-AD-P4T-WH
Condition:
New
Availability:
3-5 Days
1:
30W RMS Power Handling
2:
108 dB Peak Maximum SPL
3:
65 Hz to 20 kHz Frequency Range
4:
Euroblock Connector for Easy Wiring
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-P4T-WH AcousticDesign Series 4.5-Inch 2-Way 30W Pendant-Mount Loudspeaker (White) is a transformer-equipped pendant loudspeaker designed to deliver clear, consistent audio for commercial and professional installations. Supporting 70V, 100V, and 16-ohm operation, it is suitable for foreground and background music in restaurants, retail stores, educational facilities, houses of worship, and other commercial spaces.

Featuring a 4.5-inch weather-treated paper cone woofer and a 0.75-inch aluminum dome tweeter coupled to a DMT (Directivity Matched Transition) waveguide, the AD-P4T-WH delivers 150° conical coverage and a specified frequency range of 65Hz to 20kHz (-10 dB).

Its 30W RMS power handling, built-in transformer, and selectable transformer taps support integration into distributed audio systems. A 16-ohm bypass setting is available for low-impedance applications.

The four-pole locking, removable Euroblock connector supports speaker input and loop-through wiring. The UV-treated ABS enclosure, magnetic steel grille, sealable connector cover, and included suspension accessories help support a clean installation.

QSC Intrinsic Correction voicing filters are available through compatible Q-SYS processing or CXD amplifier platforms; compatible processing or amplification is sold separately.

READ MORE

QSC AD-P4T-WH Features

  • Two-way pendant loudspeaker: Combines a 4.5-inch weather-treated paper cone woofer with a 0.75-inch aluminum dome tweeter.
  • Wide sound coverage: Provides 150° conical coverage and a 65Hz–20kHz frequency range (-10 dB) for commercial audio applications.
  • Flexible system integration: Supports 70V, 100V, and 16-ohm transformer-bypass operation with selectable power taps.
  • Installation-ready construction: Features a UV-treated ABS enclosure, magnetic steel grille, removable logo, four-pole Euroblock connector, and included quick-link cable assemblies with slip-lock fasteners.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-P4T-WH from HDTV Supply?

Choose HDTV Supply for the QSC AD-P4T-WH AcousticDesign pendant loudspeaker. Contact our team for assistance with product selection, amplifier compatibility, and distributed audio system requirements.

Ask a Question

Need help with the QSC AD-P4T-WH AcousticDesign pendant loudspeaker? Contact HDTV Supply for product information, compatibility guidance, and assistance with your audio application.

Phone: 833-WOLFPACK

Website: www.hdtvsupply.com

QSC AD-P4T-WH Specifications

Speaker System
Product Type Passive pendant-mount loudspeaker
Number of Included Speakers 1
Speaker Configuration 2-way, sealed enclosure
Power Handling 30W RMS, low-impedance mode (2-hour rating)
Recommended Amplifier Power 60W
Power and Transformer
70V Transformer Taps 30W / 15W / 7.5W / 3.75W; 16-ohm bypass
100V Transformer Taps 30W / 15W / 7.5W; 16-ohm bypass
Nominal Impedance 16 ohms with transformer bypassed
Transformer Wattage 30W
Drivers and Audio Performance
Low-Frequency Driver 1 × 4.5-inch weather-treated paper cone woofer
Low-Frequency Voice Coil 1 inch
High-Frequency Driver 1 × 0.75-inch waveguide-coupled aluminum dome tweeter
Frequency Range 65Hz–20kHz (-10 dB)
Maximum SPL (Continuous) 102 dB
Maximum SPL (Peak) 108 dB
Sensitivity 87.9 dB
Coverage Angle 150° conical
Directivity Factor (Q) 4.5
Directivity Index (DI) 6.5 dB
Connectivity
Input/Thru Connector 4-pole locking, removable Euroblock speaker connector
Maximum Wire Gauge 18 AWG
Physical and Environmental
Color White
Construction UV-treated ABS enclosure, metal grille
Mounting Pendant suspension, rear attachment
Environmental Rating IP34 (as listed)
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Certifications UL (as listed)
Product Weight 6.5 lb (2.9 kg)
Packaging Information
Package Weight 8.95 lb
Box Dimensions (L × W × H) 14.4 × 12.9 × 11.6 inches

QSC AD-P4T-WH Manuals

QSC AD-P4T-WH User Manual (PDF)

Questions & Answers

The QSC AD-P4T-WH is a white, 4.5-inch, two-way pendant-mount loudspeaker with a built-in transformer for distributed audio systems and commercial background or foreground music.

It is a passive loudspeaker and requires a compatible external amplifier.

The listed power handling is 30W RMS in low-impedance mode, with 60W recommended amplifier power. Match the amplifier and wiring to the selected operating mode.

Yes. Its built-in transformer supports 70V and 100V distributed audio systems. A 16-ohm bypass setting is also available for low-impedance operation.

The listed 70V taps are 30W, 15W, 7.5W, and 3.75W. The listed 100V taps are 30W, 15W, and 7.5W. Both configurations offer a 16-ohm bypass setting.

The specified frequency range is 65Hz to 20kHz at -10 dB.

The AD-P4T-WH provides 150-degree conical coverage, helping distribute audio across a broad listening area.

It uses a four-pole locking, removable Euroblock connector for speaker input and loop-through wiring. The listed maximum wire gauge is 18 AWG.

It is designed for suspended audio installations in commercial environments such as restaurants, retail spaces, schools, houses of worship, and transportation terminals. Confirm that its environmental rating and installation requirements suit the intended location.

The supplied product information lists quick-link cable assemblies and slip-lock fasteners. Check the current manufacturer documentation or product package details to confirm all included components.

Key listed specifications include a 4.5-inch woofer, a 0.75-inch aluminum dome tweeter, 30W RMS low-impedance power handling, 150-degree conical coverage, and a 65Hz–20kHz frequency range (-10 dB).

Yes. The speaker supports nominal 16-ohm operation when the built-in transformer is bypassed. Confirm amplifier compatibility and follow the manufacturer's wiring instructions.

The AD-P4T-WH is designed for pendant suspension. Use suitable mounting hardware and follow QSC installation instructions and applicable site safety requirements.

The supplied specifications list an IP34 environmental rating and an operating temperature range of -4°F to 122°F (-20°C to 50°C). Verify the manufacturer's current documentation to confirm suitability for the intended installation conditions.

Contact HDTV Supply at 833-WOLFPACK or visit hdtvsupply.com for product information and assistance with your commercial audio application.
