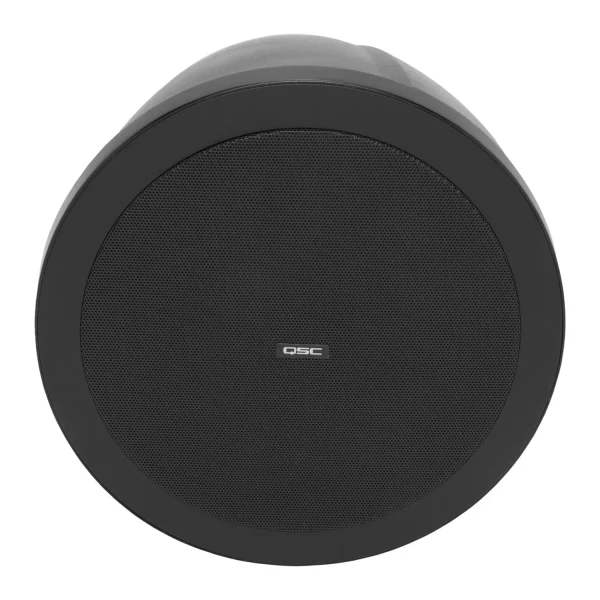

QSC AD-P6T-BK AcousticDesign Series 6.5 Inch 2-Way 60W Pendant-Mount Loudspeaker (Black)

QSC

QSC AD-P6T-BK AcousticDesign Series 6.5 Inch 2-Way 60W Pendant-Mount Loudspeaker (Black)
$425.00
Part Number:
QSC-AD-P6T-BK
Condition:
New
Availability:
3-5 Days
1:
60W RMS Power Handling
2:
112 dB Peak Maximum SPL
3:
56 Hz to 20 kHz Frequency Range
4:
Euroblock Connector for Easy Wiring
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-P6T-BK AcousticDesign Series 6.5-Inch 2-Way 60W Pendant-Mount Loudspeaker (Black) is a transformer-equipped pendant loudspeaker designed for foreground and background music in commercial environments. It supports 70V/100V distributed audio systems and 16-ohm operation, offering flexibility for professional audio installations.

The AD-P6T-BK features a 6.5-inch weather-treated paper cone woofer and a 0.75-inch aluminum dome tweeter coupled to a Directivity Matched Transition (DMT) waveguide. Its 135-degree conical coverage helps distribute sound across a broad listening area.

With a listed frequency range of 56Hz to 20kHz (-10dB) and a peak maximum SPL of 112dB, this loudspeaker is designed for commercial audio applications in restaurants, retail stores, educational facilities, transportation terminals, and worship spaces.

The integrated low-loss transformer supports 70V/100V systems with selectable power taps and a 16-ohm bypass mode. A four-pole locking Euroblock connector provides input and loop-through connections beneath a sealable cover.

The UV-treated ABS enclosure, magnetic steel grille, removable logo, quick-link cable assemblies, and slip-lock fasteners provide practical features for pendant installation.

READ MORE

QSC AD-P6T-BK AcousticDesign Pendant Loudspeaker Features

  • Designed for foreground and background music in restaurants, retail stores, educational facilities, audiovisual installations, casinos, transportation terminals, and worship facilities.
  • Two-way speaker design featuring a 6.5-inch weather-treated paper cone woofer and a 0.75-inch aluminum dome tweeter.
  • 135-degree conical coverage with DMT waveguide technology for consistent sound distribution.
  • Integrated 70V/100V transformer with selectable power taps and 16-ohm bypass operation.
  • UV-treated ABS enclosure and snap-fit magnetic steel grille with a removable logo.
  • Four-pole locking, removable Euroblock connector supporting input and loop-through wiring.
  • QSC Intrinsic Correction voicing options available through compatible Q-SYS processing or CXD amplifier platforms, sold separately.
  • Includes two quick-link cable assemblies and slip-lock fasteners for suspension installation.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase QSC products from HDTV Supply, you are working with a team familiar with the QSC ecosystem and able to help you make informed product and system decisions.

Why Buy the QSC AD-P6T-BK from HDTV Supply?

The QSC AD-P6T-BK combines broad sound coverage, flexible transformer settings, and practical suspension accessories in a commercial pendant loudspeaker. It is a versatile option for distributed audio and background music systems in professional environments.

Looking for the QSC AD-P6T-BK AcousticDesign Series 6.5-Inch 2-Way Pendant Loudspeaker in Black? Contact HDTV Supply for availability and assistance with system compatibility.

Ask a Question

Have questions about the QSC AD-P6T-BK AcousticDesign Pendant Loudspeaker? Contact HDTV Supply for assistance with specifications, amplifier compatibility, transformer settings, and commercial audio system planning.

Phone: 833-WOLFPACK

Website: www.hdtvsupply.com

QSC AD-P6T-BK AcousticDesign Pendant Loudspeaker Specifications

Speaker System
Speaker Type Passive pendant-mount loudspeaker
Number of Included Speakers 1
Speaker Configuration 2-way
Enclosure Type Sealed
Nominal Impedance 16 ohms with transformer bypassed
Power and Transformer
Continuous Power Handling 60W RMS (2-hour rating, low-impedance mode; verify with manufacturer documentation)
Recommended Amplifier Power 120W, as listed in supplied specifications
Transformer Wattage 60W
70V Transformer Taps 60W, 30W, 15W, 7.5W; 16-ohm bypass
100V Transformer Taps 60W, 30W, 15W; 16-ohm bypass
Drivers and Audio Performance
Low-Frequency Driver 1 × 6.5-inch (16.51 cm) weather-treated paper cone woofer
Low-Frequency Voice Coil 1 inch (2.54 cm)
High-Frequency Driver 1 × 0.75-inch (1.91 cm) waveguide-coupled aluminum dome tweeter
Frequency Range (-10dB) 56Hz–20kHz
Maximum SPL, Continuous 106dB, as listed in supplied specifications
Maximum SPL, Peak 112dB, as listed in supplied specifications
Sensitivity 88dB, as listed in supplied specifications
Coverage Angle 135° conical
Directivity Factor (Q) 6.5, as listed in supplied specifications
Directivity Index 8dB, as listed in supplied specifications
Connectivity
Input/Output Connector 1 × four-pole locking, removable Euroblock speaker input/loop-through connector
Maximum Wire Gauge 18 AWG, as listed in supplied specifications
Physical and Environmental
Construction Material UV-treated ABS enclosure with metal grille
Color Black
Environmental Rating IP34, as listed in supplied specifications; verify with QSC documentation
Operating Temperature -4°F to 122°F (-20°C to 50°C), as listed in supplied specifications
Mounting Pendant suspension, rear attachment
Dimensions Verify complete dimensions using the manufacturer's documentation.
Product Weight 9 lb (4.1 kg), as listed in supplied specifications
Certification UL, as listed in supplied specifications; confirm the applicable listing with QSC
Packaging Information
Package Weight 12.25 lb, as listed in supplied specifications
Box Dimensions (L × W × H) 16.3 × 13.8 × 13.7 inches, as listed in supplied specifications

QSC AD-P6T-BK Manuals and Downloads

QSC AD-P6T Series User Manual (PDF)

QSC AD-P6T-BK Questions & Answers

The QSC AD-P6T-BK is a 6.5-inch, two-way pendant-mount loudspeaker in the AcousticDesign series. It is designed for commercial foreground and background music applications.

Yes. Its integrated transformer supports compatible 70V and 100V distributed audio systems with selectable wattage taps. It also supports 16-ohm operation when the transformer is bypassed.

The supplied specifications list 60W RMS power handling in low-impedance mode and 120W recommended amplifier power. Confirm the manufacturer's requirements before selecting an amplifier or transformer tap.

The supplied specifications list a frequency range of 56Hz to 20kHz at -10dB.

It features a 6.5-inch weather-treated paper cone woofer with a 1-inch voice coil and a 0.75-inch aluminum dome tweeter coupled to a waveguide.

The supplied specifications list 135-degree conical coverage. Its DMT waveguide is designed to help maintain consistent sound distribution across the listening area.

The supplied specifications list 106dB continuous maximum SPL and 112dB peak maximum SPL. Verify these values against the current QSC datasheet before using them for system design.

It uses a four-pole locking, removable Euroblock connector for speaker input and loop-through wiring beneath a sealable cover.

The supplied product information lists two quick-link cable assemblies and slip-lock fasteners to support pendant suspension installation. Confirm package contents against the current product documentation.

It is designed for commercial environments such as restaurants, retail stores, educational facilities, casinos, transportation terminals, and worship facilities that require foreground or background music.

Its listed features include 135-degree coverage, two-way audio reproduction, 70V/100V transformer support, 16-ohm bypass operation, and a UV-treated enclosure for commercial installations.

The supplied product information states that QSC Intrinsic Correction voicing filter sets are available through compatible Q-SYS processing or CXD amplifier platforms. These platforms are sold separately; confirm compatibility with the selected equipment.

70V/100V operation uses the built-in transformer and a selected wattage tap for a compatible distributed audio system. The 16-ohm bypass mode is intended for compatible low-impedance amplifier configurations. Select the operating mode according to the system design.

Download the QSC AD-P6T Series User Manual (PDF) from the Manuals tab.

Contact HDTV Supply to inquire about the QSC AD-P6T-BK AcousticDesign Pendant Loudspeaker, availability, and system compatibility. Call 833-WOLFPACK for assistance.

QSC AD-P6T-BK Warranty Information

For current warranty coverage, exclusions, and registration requirements for the QSC AD-P6T-BK AcousticDesign Pendant Loudspeaker, please confirm the applicable terms with QSC or HDTV Supply.
