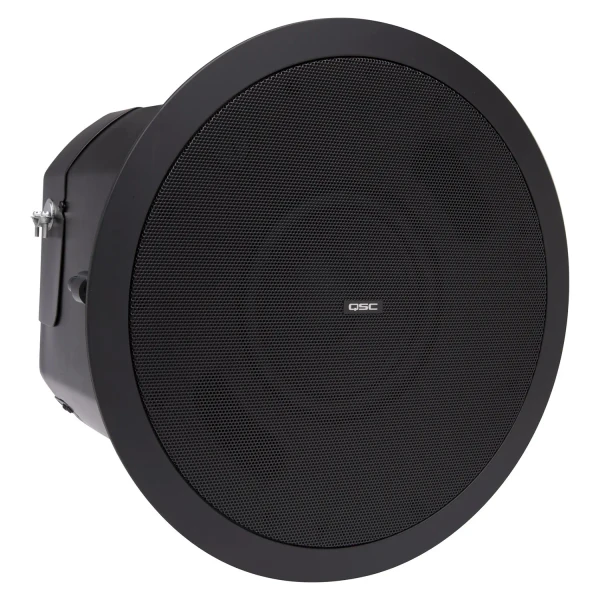

QSC AD-C.SUB-BK 6.5 Inch Small-Format Passive Ceiling Subwoofer (Black)

QSC

QSC AD-C.SUB-BK 6.5 Inch Small-Format Passive Ceiling Subwoofer (Black)
$590.00
Part Number:
QSC-AD-C.SUB-BK
Condition:
New
Availability:
3-5 Days
1:
6.5 Inch Subwoofer
2:
70/100V Transformer
3:
100W at 4 Ohms
4:
Magnetic Grille
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-C.SUB-BK 6.5-Inch Small-Format Passive Ceiling Subwoofer (Black) is a compact ceiling subwoofer designed to provide refined bass depth and clarity for background music applications, including at lower listening levels.

Part of the AcousticDesign Series, the AD-C.SUB-BK supports flexible SUB/SAT system configurations, 70V/100V distributed audio, and 4-ohm bypass operation. Its built-in high-pass filtered outputs allow connection of up to four compatible AcousticDesign satellite loudspeakers, helping simplify system wiring and installation.

QSC AD-C.SUB-BK Features

  • 6.5-inch passive subwoofer designed to deliver clear, refined low-frequency performance.
  • Selectable 70V/100V transformer taps with 4-ohm bypass for flexible system configurations.
  • Four built-in high-pass filtered outputs for compatible AcousticDesign SUB/SAT satellite speakers.
  • Magnetic snap-fit grille, locking 4-pole Euroblock connectors, and a blind-mount ceiling installation system.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-C.SUB-BK from HDTV Supply?

HDTV Supply offers QSC audio solutions for commercial and professional installations. Contact our team for assistance with product selection and system compatibility.

Ask a Question

Have questions about the QSC AD-C.SUB-BK 6.5-Inch Small-Format Passive Ceiling Subwoofer? Our team can help with product information and installation considerations.

Call: 833-WOLFPACK

Contact HDTV Supply

QSC AD-C.SUB-BK Specifications

Speaker
Model AD-C.SUB-BK
Active/Passive Passive
Number of Included Speakers 1
Speaker Configuration Subwoofer
Power Handling 100 W
Recommended Amplifier Power 100 W
70V Transformer Taps 100 / 50 / 25 / 12.5 W
100V Transformer Taps 100 / 50 / 25 W
Bypass Operation 4 Ohms
Impedance 4 Ohms
Enclosure Type Bass-reflex (as listed in the supplied specifications; verify against manufacturer documentation)
Drivers
Low-Frequency Driver 1 × 6.5-inch (165.1 mm) woofer
Performance
Frequency Range 45 Hz–150 Hz
Maximum SPL 111 dB peak; 105 dB continuous
Sensitivity 86 dB
Coverage Angle 250° conical (as supplied; verify with manufacturer)
Directivity Index 1.8 dB
Directivity/Q Factor 1.5
Connectivity
Inputs/Outputs 3 × locking 4-pole block speaker input/output connectors
Maximum Wire Gauge 12 AWG
Physical and Environmental
Certifications CE, RoHS, UL
Environmental Resistance IP34 dust/water resistance (as supplied)
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Color Black
Mounting In-ceiling
Construction Materials ABS, steel
Dimensions 13.4 × 10.4 inches (340.36 × 264.16 mm)
Weight 19.2 lb (8.7 kg)



QSC AD-C.SUB-BK Manuals and Documentation

Questions & Answers

The QSC AD-C.SUB-BK is a passive 6.5-inch ceiling subwoofer designed to add low-frequency depth to installed audio systems.

It is a passive subwoofer that requires a compatible external amplifier.

It uses one 6.5-inch (165.1 mm) low-frequency woofer.

The supplied specifications list 100 W power handling and recommend 100 W amplifier power.

Yes. The supplied specifications list selectable 70V and 100V transformer taps, plus a 4-ohm bypass option.

The supplied specifications list a frequency range of 45 Hz to 150 Hz.

The product description states that the subwoofer includes four high-pass filtered outputs for connecting up to four compatible AcousticDesign SUB/SAT satellite loudspeakers.

The supplied specifications list three locking 4-pole block speaker input/output connectors.

Yes. It is designed for in-ceiling installation and features a blind-mount system according to the supplied product description.

The supplied description lists a C-ring, tile rails, rail screws, three Euroblock connectors, a cut-out template, and a magnetic grille.

Its compact ceiling-mounted design, transformer tap options, 4-ohm bypass, and filtered satellite outputs support flexible installed audio system designs.

Yes. The product description identifies it as a solution for background music applications that need additional low-frequency depth and clarity.

The supplied specifications recommend 100 W amplifier power. The amplifier must also be compatible with the selected transformer tap or 4-ohm bypass setting.

According to the product description, AcousticDesign SUB/SAT subwoofers can be paired with compatible satellite speakers in the SUB/SAT line. Confirm the intended combination and system requirements before installation.

Contact HDTV Supply at 833-WOLFPACK for assistance with ordering, availability, and product questions about the QSC AD-C.SUB-BK.
