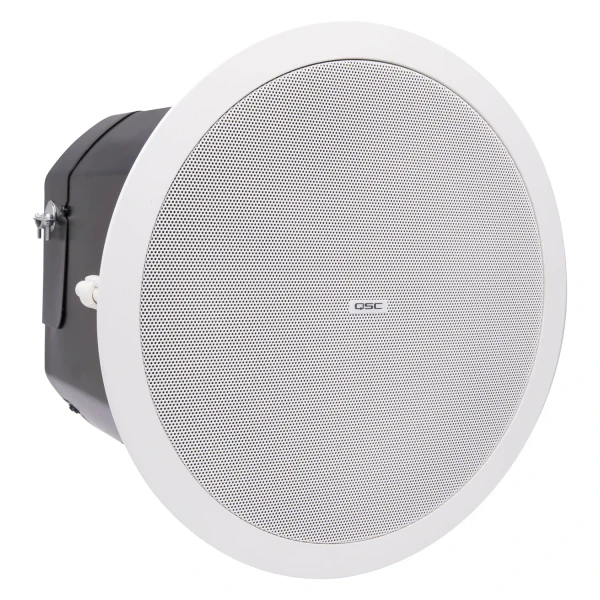

This QSC AD-C.SUB-WH 6.5 Inch Small-Format Passive Ceiling Subwoofer (White) is a fully integrated, sealed subwoofer system designed for background music applications that require refined depth and clarity even at lower volume settings.
The AcousticDesign Series of installation subwoofers has been designed for trouble-free operation and versatility.
SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of subwoofer may be paired with any satellite in the SUB/SAT line.
The AD-C-SUB maintains an accurate frequency response when used with 70/100V applications by use of a low-loss, low-saturation 100W transformer with selectable taps, including 4-ohm bypass, using a rotary selector located under the snap-fit magnetically attached powder coated steel grille.
Additionally, the sub includes built-in, high-pass filtered outputs for connecting up to four AcousticDesign SUB/SAT satellite loudspeakers, allowing for a reduced setup time, amplifier channel count, and allows for ease of wiring.
Intrinsic Correction voicings that optimize performance and speed the install process are easily deployed via the MP-M Series music and paging mixers as well as Q-SYS Platforms including CXD-Q Series amplifiers, as part of a complete QSC systems solution.
The AD-C.Sub ships with C-ring and tile rails, rail screws, three Euroblock connectors, a cut-out template, and a magnetic grille.
QSC AD-C.SUB-WH 6.5 Inch Small-Format Passive Ceiling Subwoofer (White) Features:
- Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
- Refined depth and clarity even at low-volume settings
- Mix-and-match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
- Dual voice coil for improved thermal dissipation and higher output
- Low-saturation and low-loss 70 / 100V transformers with 4-ohm bypass
- Snap-fit magnetic grille
- Four built-in high-pass filtered outputs
- Locking 4-pole Euroblock connectors
- Removable conduit cover plate
- Blemish-free removable logo
- Four double stepped, long travel dog-ear blind mount system
- Intrinsic Correction voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
- UL1480 and UL2043 certified
Why not buy this QSC AD-C.SUB-WH 6.5 Inch Small-Format Passive Ceiling Subwoofer (White) from HDTV Supply today?
QSC AD-C.SUB-WH 6.5 Inch Small-Format Passive Ceiling Subwoofer (White) Specifications:
- Speaker
- Active/Passive Passive
- Number of Included Speakers 1
- Speaker Configuration Subwoofer
- Power Handling 100 W
- Recommended Amplifier Power 100 W
- Constant Voltage / Transformer Taps
- 70 V
- 100 / 50 / 25 / 12.5 W
- 100 V
- 100 / 50 / 25 W or 4 Ohms Bypass
- Impedance 4 Ohms
- Enclosure Type Bass-Reflex
- Drivers
- LF Driver 1x 6.5" / 165.1 mm Woofer
- Performance
- Frequency Range 45 Hz to 150 Hz
- Maximum SPL
- 111 dB (Peak)
- 105 dB (Continuous)
- Sensitivity 86 dB
- Coverage Angle 250° (Conical)
- Directivity
- 1.8 dB (Directivity Index)
- 1.5 (Directivity/Q Factor)
- Connectivity
- Inputs/Outputs 3x Block 4-Pole Speaker Input/Output (Locking)
- Maximum Wire Gauge 12 AWG
- Physical
- Certifications CE, RoHS, UL
- Environmental Resistance Dust/Water-Resistant (IP34)
- Operating Conditions -4 to 122°F / -20 to 50°C
- Color Black
- Mounting 1x In-Ceiling
- Construction Material ABS, Steel
- Dimensions 13.4 x 10.4" / 340.36 x 264.16 mm
- Weight 19.2 lb / 8.7 kg
- Packaging Info
- Package Weight 25.9 lb
- Box Dimensions (LxWxH) 21 x 21 x 14.25"
Why not buy this QSC AD-C.SUB-WH 6.5 Inch Small-Format Passive Ceiling Subwoofer (White) from HDTV Supply today?
Standard 3-Year Warranty: With the Product
6-Year Warranty: Requires Product Registration
Please Click Here to Register Now to Qualify for Your 6-Year Warranty
