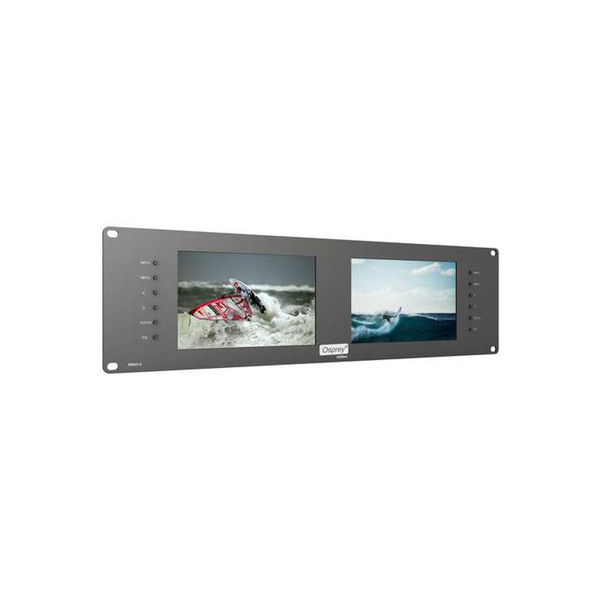

Osprey RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU

Osprey Video

Osprey RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU
$890.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
97-50003
UPC:
850189006962
Availability:
Usually ships the same business day
1:
2 x 7 IPS LCD Display"
2:
1280 x 800 Resolution
3:
SDI, HDMI, Component & Composite I/O
4:
Supports NTSC and PAL Standards
5:
Free Shipping & 2-Year Osprey Warranty
Make a Fair Offer
Ask an Expert

This Osprey 97-50003 RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU has a 1280 x 800 resolution, a 16:9 aspect ratio, an 800:1 contrast ratio, and a 178? viewing angle. It is equipped with two 3G-SDI, two HDMI 2.0, two component, and two composite input ports. Loop outputs are provided for all inputs as well as a 15-pin Sub D tally port.

Osprey 97-50003 RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU Features:

  • Two 7" IPS LCD displays with 1280 x 800 resolution
  • Two 3G-SDI, two HDMI 1.3, two component inputs with loop outputs, and two composite input with loop outputs
  • SMPTE SDI compliance: 125M, 292M, 296M, 372M
  • Supports 525i59.94 NTSC and 625i50 PAL standards
  • Video input selection, display adjustments, tally indicator lights, aspect ratio, signal loss color bars, and system settings

Why not buy this Osprey 97-50003 RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU today?

Osprey 97-50003 RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU Specifications:

  • Display
    • Panel Type: IPS-Type LCD
    • Display Size: 7.0" / 17.8 cm
    • Resolution: 1280 x 800
    • Aspect Ratio: 16:9
    • Viewing Angle: Horizontal: 178°, Vertical: 178°
    • Touchscreen: No
    • Maximum Brightness: 400 cd/m2
    • Contrast Ratio: 800:1
    • Dot Pitch: 0.12 x 0.12 mm
    • Pixels Per Inch (ppi): 216 ppi
  • I/O
    • Video
      • 2 x BNC (3G-SDI) Input
      • 2 x BNC (3G-SDI) Loop Output
      • 2 x HDMI Type A (HDMI 1.3) Input
      • 2 x HDMI Type A (HDMI 1.3) Loop Output
      • 2 x 3BNC (Component) Input
      • 2 x 3BNC (Component) Loop Output
      • 2 x BNC (Composite) Input
      • 2 x BNC (Composite) Loop Output
    • Audio: None
    • Built-In Speaker: None
    • Power I/O: 1 x Barrel Input
    • Other I/O
      • 1 x Tally (DE-15/DB-15)
      • 1 x LAN (RJ45)
      • 1 x USB 2.0 (USB Type-A)
    • Media/Memory Card Slot: None
    • Wi-Fi: Yes
  • Format Support
  • Video Format
    • SDI
      • 1080p: 60/59.94/50/30/29.97/25/24/23.98
      • 1080i: 60/59.94/50
      • 720p: 60/59.94/50
    • HDMI
      • 1080p: 60/59.94/50/30/29.97/25/24/23.98
      • 1080i: 60/59.94/50
      • 720p: 60/59.94/50
    • Component
      • 1080p: 30/29.97/25/24/23.98
      • 1080i: 60/59.94/50
      • 720p: 60/59.94/50
  • Power
    • DC Input Power: 12 to 24 VDC
    • Battery Type: None
    • Power Consumption: 18 W
  • Mounting
    • Rack Form Factor: 3 RU
  • Environmental
    • Operating Temperature: 32 to 104°F / 0 to 40°C
  • General
    • Dimensions: 19 x 5.3 x 1" / 482.5 x 133.5 x 25.3 mm
    • Weight: 6.39 lb / 2.9 kg

Why not buy this Osprey 97-50003 RM3G-2 Dual 7" Monitor 3G SDI, HDMI, Analog 19" 3RU today?
