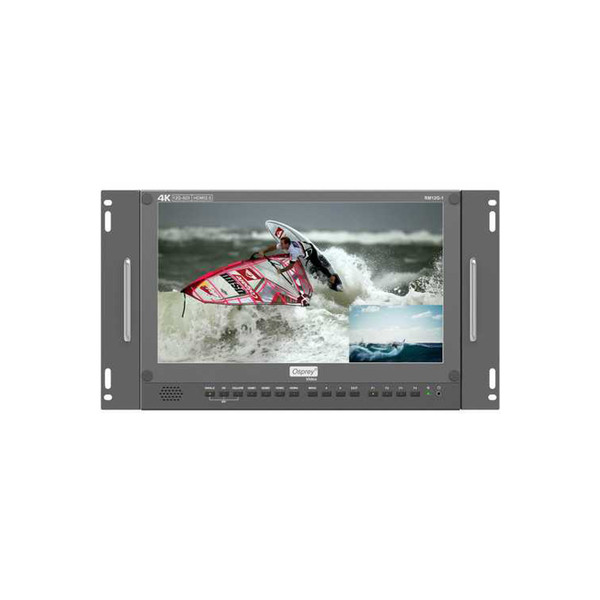

Osprey RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19

Osprey Video

Osprey RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19
$2,490.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
97-50001
Availability:
Usually ships the same business day
1:
15.6 Display 3840 x 2160"
2:
16:9 Aspect Ratio
3:
Tally Indicator Lights, Display Adjustments
4:
Supports NTSC/PAL & HD
5:
Free Shipping & 2-Year Osprey Warranty
Make a Fair Offer
Ask an Expert

This Osprey 97-50001 RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19 is a 4K monitor featuring a 3840 x 2160 native resolution, a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 176° viewing angle. The four SDI inputs are comprised of two 12G rated connections plus an additional two rated at 3G with loop outputs. It supports a single-link 12G-SDI video as well as dual 6G and quad 3G 4K resolution at 60 fps. In addition to the SDI inputs, the RM12G-1 also supports four HDMI inputs, one HDMI 2.0 input supporting 4K resolution at 60 fps plus three HDMI 1.4 inputs supporting 4K resolution at 30 fps. A headphone output as well as an integrated speaker provide audio monitoring capabilities.

Osprey 97-50001 RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19 Features:

  • 15.6" 4K UHD (3840 x 2160) resolution
  • Two 12G-SDI plus two 3G-SDI inputs and one HDMI 2.0 and three HDMI 1.4 inputs
  • Supports dual/quad view, PiP mode, and all HDMI inputs plus one SDI input
  • SMPTE SDI compliance: 259M, 292M, 296M, 372M, 424M, 425-2, 425-3, 425-5, 2081-10, 2082-10
  • Supports 525i59.94 NTSC and 625i50 PAL standards
  • 3.5mm audio headphone jack and speaker to monitor first stereo pair of any input
  • Video input selection, display adjustments, tally indicator lights, center and safety markers, aspect ratio, system settings, H/V delay, check field, underscan, signal loss color bars, zoom, image flip, PiP, and multiview

Why not buy this Osprey 97-50001 RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19 today?

Osprey 97-50001 RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19 Specifications:

  • Display
    • Panel Type: IPS-Type LCD
    • Display Size: 15.6" / 39.6 cm
    • Resolution: 3840 x 2160
    • Aspect Ratio: 16:9
    • Viewing Angle: 176°
    • Touchscreen: No
    • Contrast Ratio: 1000:1
    • Dot Pitch: 0.09 x 0.09 mm
    • Pixels Per Inch (ppi): 282 ppi
    • Image Controls: Check Field, Customizable Aspect Ratios, H/V Delay, Image Flip, Picture-in-Picture, Pixel Zoom, Underscan
  • I/O
    • Video
      • 2 x BNC (12G-SDI) Input
      • 2 x BNC (12G-SDI) Loop Output
      • 2 x BNC (3G-SDI) Input
      • 2 x BNC (3G-SDI) Loop Output
      • 1 x HDMI Type A (HDMI 2.0) Input
      • 3 x HDMI Type A (HDMI 1.4) Input
    • Audio: 1 x 1/8" / 3.5 mm Headphone Output
    • Built-In Speaker: 1
    • Power I/O: 1 x XLR 4-Pin Input
    • Other I/O: 1 x Tally (DE-9/DB-9), 1 x USB 2.0 (USB Type-A)
    • Media/Memory Card Slot: None
    • Wi-Fi: None
  • Format Support
    • Video Format:
    • HDMI
      • 720p: 60/59.94/50
      • 1080p: 60/59.94/50/30/29.97/25/24/23.98
      • 1080i: 60/59.94/50
      • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
      • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    • SDI
      • 720p: 60/59.94/50
      • 1080p: 60/59.94/50/30/29.97/25/24/23.98
      • 1080i: 60/59.94/50
      • DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
      • UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
  • Power
    • DC Input Power: 12 to 24 VDC
    • Battery Type: 1 x V-Mount
    • Power Consumption: 34 W
  • Mounting
    • Rack Form Factor: 6 RU
  • Environmental
    • Operating Temperature: 32 to 104°F / 0 to 40°C
  • General
    • Dimensions: 19 x 10.5 x 1.5" / 482.5 x 267 x 38 mm
    • Weight: 7.50 lb / 3.4 kg

Why not buy this Osprey 97-50001 RM12G-1 15.6" 4K Monitor 12G SDI, HDMI 2.0 19 today?
