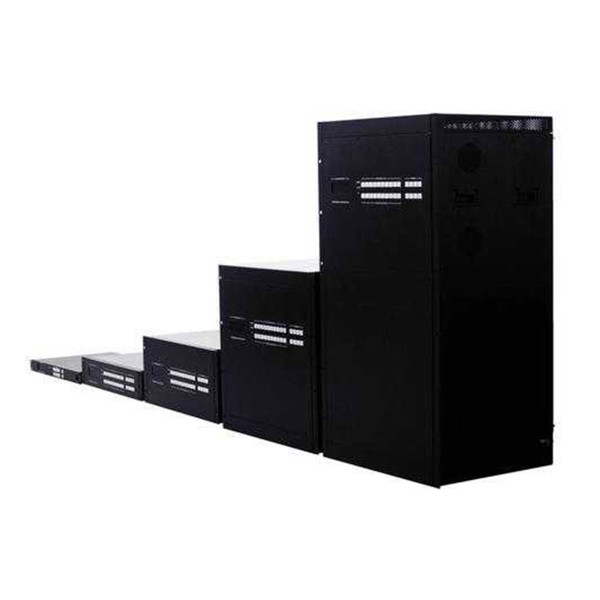

Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall

Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall
Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall
Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall - Extra Image 1Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall - Extra Image 2Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall - Extra Image 3
Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall
Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall
Build a 1080p Modular HDMI Matrix Switch From a 4x4 to 72x72 w/Video Wall

Modular HDMI Matrix Switches w/Video Walls

Build Your Own with 1080p HDMI In & Out Cards

4x4, 8x8, 17x17, 32x32 & 72x72 Chassis

App, IR Remote, RS-232 & Front Control

Create Your Own Text over Video

Audio In/Out on HDMI & HDBaseT Cards

Seamless 1080p 100ms Switching

HDMI 1.4 & HDCP 1.4 Compliant

Part # GST
Today's Price: $300.00
Pick 1080p 4x4, 8x8, 17x17, 36x36 or 72x72 Chassis:
1080p HDMI Inputs w/Separate Audio Ins:
1080p HDMI Outputs w/Separate Audio Outs:
1080p to 220' Transmitters & Cards w/Separate Audio Ins:
1080p to 220' Receivers & Cards w/Separate Audio Outs:
Optional Dual 7 inch Color Displays:
Out Of Stock
Ask Our WolfPack Experts

Features

WolfPack HDMI Switchers HDTV Supplys WolfPackLite Modular HDMI Matrix Switches are a series of modular HDMI matrix switchers that allow them to be an all-in-one solution for a variety of different projects. They can be used in Restaurants & Sport Bars. Because they are Modular HDMI Matrix Switches they allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. Our HDMI Modular Matrix Switchers can be controlled by an App, remote control, the front panel, an RS232 port & Windows software.

These Modular HDMI Matrix Switches are designed to allow the switching & distribution of up to 72 source HDMI devices to up to 72 connected displays directly via HDMI cables or the above optional HDBaseT HDMI HDMI to CAT6 extenders that send a 1080p signal up 220 feet with CAT6 cabling. The WolfPackLite HDMI Matrix Switch is a top of the line digital matrix switcher made for the demands of today's HDMI (High-Definition Multimedia Interface) routing. Created to route your systems HDMI signals to go up to 72 outputs from 72 inputs, this Modular HDMI Matrix Switch delivers high performance.

By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair. Our Modular HDMI Matrix Switches can be used in Restaurants, Bowling Alleys, Fitness Centers, Sports Bars, Malls, Places of Worship, Data Centers, Casinos, Conference Rooms, Schools, Home Theaters or any installation requiring HDMI switching.

Creating Text and putting it over the source pictures: All sizes of these matrix switches allow you to add text over the incoming source devices. An example would be: "Try our New Salami Pizza" and put that phrase over the video coming in from a DirecTV receiver. This allows restaurants, sports bars and clubs to create anything they would want for the visitors to read. It is simple to install with the software that you get, just go to Input Source Setting and put all input sources are put in the left side of the software interface. Right-click the corresponding input source to pop up the following interface: Subtitles: Text over the input source and add your text. The text color and position are adjustable.

What Sets These HDMI Matrix Switches Apart From Others

  1. All have 1080p Internal Video Wall Processors
  2. All allow creation of your own Text over the projected Video
  3. All 1080p cards have Audio In & Out Including HDBaseT Devices
  4. All 1080p switch in 100ms (0.1 sec) or less, including 4K/30

WolfPackLite 1080p 32x32 HDMI Matrix Switch Configuration Example #1:

  • 1 - 36x36 Card Cage Chassis
  • 32 - 4K HDMI input cards = 32-4K HDMI inputs
  • 32 - 4K HDMI output cards = 32-4K HDMI outputs

WolfPackLite 1080p 38x60 HDMI Matrix Switch Configuration Example #2:

  • 1 - 72x72 Card Cage Chassis
  • 38 - 1080p HDMI input cards = 38 HDMI inputs
  • 60 - 1080p HDMI output cards = 60 HDMI outputs

What sets the WolfPackLite of Modular HDMI Matrix Switchers apart for our competitors:

  • Can be configured from a 4x4 to a 72x72 matrix system
  • Integral built-in video wall processor
  • Year 2020 Firmware
  • Plug-n-Play 1-Port HDMI in and out cards (not hot swappable)
  • Create Your Own Text over Video
  • Audio In & Out on all cards
  • Seamless 100ms Switching
  • The matrix can be controlled 6-ways:
    1. Front Panel Control
    2. A remote control
    3. RS232 port
    4. Software
    5. Control4 Drivers
    6. Android App (Coming)

NOTE: This HDMI Matrix Switcher has an option to add a 1080p Rack Mount 7" inch Dual Color Display (shown) for you to select & see screens of what is happening in your matrix system located in other rooms. It requires the dedicated use of 2-of the HDMI outputs to wire to the 2-HDMI inputs of the dual display. Those 2-Matrix HDMI outputs cannot be used for anything else so count the number of outputs you need and add two (2) more to see if this matrix fulfills your needs. Also, the sources feeding the displays must be set at 1080p.

WolfPackLite HDMI Matrix Switch Features:

  • Switching of up to 72 HDMI sources to 72 displays depending upon the chassis you choose
  • 16 - Presets to save often used configurations
  • HDCP 1.4 and HDMI 1.4 backwards compatible
  • LCD front panel for status
  • Supports a bandwidth of up to 10.2 Gbps
  • Built-in HDCP internal management
  • Supports 3D pass-through
  • Supports High Speed HDMI 1.3 Specifications
  • Supports DDC transmission
  • Control via its remote control, RS-232 and front-panel buttons
  • Full RS-232 control for incorporating third party control systems

The WolfPackLite Matrix Router provides full HDCP internal management for today's integration in commercial A/V market, ensuring HDCP key authentication and administering the handshake internally. Our WolfPackLite HDMI Matrix Router comes with a full HDCP (High-bandwidth Digital Content Protection) internal management system that will eradicate any interception of your digital data. Streaming between the source and display units is easily controlled through our HDMI Matrix interface. HDCP key authentication will no longer be an issue when using our switcher. Control for our unit is varied and easily accessible. Enabled RS-232 commands is provided for advanced user control management.

HDTV Supply, Inc. is an HDBaseT.Org Approved Adopter of HDBaseT™ Products.

Why not create a HDMI Matrix Switch today?

Specs

Internal Video Wall Processor: Not only is this product an HDMI matrix switch its design is specially designed to support the video wall configurations. You can even select from 16-presets to access often viewed video sets.

  1. 1x2, 1x3 thru 1x10 and more
  2. 2x1, 3x1 thru 10x1 and more
  3. 2x2, 2x3 thru 2x10 and more
  4. 3x3, 3x3 thru 4x4 and more

Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.

Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.

WolfPackLite HDMI Matrix Switch Specs:

  • I/O card board: 1 - HDMI port/card
  • Input Connector: HDMI A female; T.M.D.S. 2.9V/3.3V, 75 ohms
  • Video Output: HDMI A female; T.M.D.S. 2.9V/3.3V; 75 ohms
  • Gain: 0 dB
  • Resolution: Up to 1080p 4:4:4
  • HDMI Standard: HDCP 1.4 - supports CEC, EDID and DDC and compliant with HDCP
  • Control Options: Buttons, IR remote & RS232 (9-pin female D connector)
  • Worldwide Power Supply: 100VAC ~ 240VAC, 50/60Hz; 50W
  • Temperature: -10 ~ 50 degrees C
  • Working Humidity: 10 ~ 90 degrees
  • Regulation: CE, FCC and CCC

WolfPackLite HDMI Matrix Switch Specs:

  • Gain: 0 dB
  • Bandwidth: 340 MHz (10.2 Gbit/s)
  • Video Signal: HDMI (or DVI-D)
  • Maximum Pixel Clock: 165MHz
  • Resolution Range: Up to 1080p

WolfPackLite HDMI Matrix Switch Input:

  • Inputs: Up to 72 HDMI
  • Input Connector: HDMI 1.4 & HDCP 1.2
  • Input Level: T.M.D.S. 2.9V/3.3V
  • Input Impedance: 75 ohms

WolfPackLite HDMI Matrix Switch Output:

  • Outputs: Up to 72 outputs
  • Output Connector: HDMI 1.4 & HDCP 1.2
  • Output Level T.M.D.S. 2.9V/3.3V
  • Output Impedance: 75 ohms

Other WolfPackLite Modular HDMI Matrix Switch Specs:

  • Input cable distance: ~25 feet AWG24 HDMI 1.4 high speed cable
  • Output cable distance: ~35 feet AWG24 HDMI 1.4 high speed cable
  • HDCP Management: Compliant with High-bandwidth Digital Content Protection (HDCP 1.2) using DVI and HDMI 1.4 standards. The built-in HDCP management technology can analyze HDCP key authentication and realize the handshake internally.
  • Serial Control Port: RS-232, 9-pin female D connector with a pin configuration of 2 = TX, 3 = RX, 5 = GND
  • IR Remote: Yes
  • Front Panel Control: Buttons

Why not create a Modular HDMI Matrix Switchtoday?

Compatibility

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at. These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced hardware & software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™

...we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8V1.8.16.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
