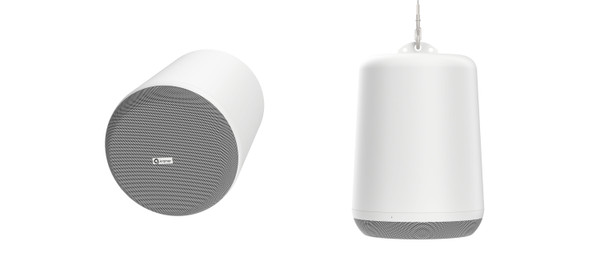

The Kramer PN-6D receives networked Dante audio and power over Ethernet in a suspended speaker format. Its 6.5-inch two-way design brings sound coverage to spaces suited to pendant mounting.
PN-6D Detailed Features
- Deliver networked audio to a suspended speaker. The integrated Dante interface receives audio over Ethernet. Pendant mounting places the speaker below the ceiling, making it suitable for spaces where a suspended enclosure fits the room design.
- Carry audio and power on the network connection. PoE operation reduces the need for a separate local power feed. Select a network switch or injector with an appropriate PoE class and sufficient total power budget.
- Use a two-way driver system for voice and music. A 6.5-inch low-frequency driver works with a 0.75-inch tweeter. The published frequency response is 85Hz–18kHz within ±3dB, supporting installed speech and background music applications.
- Plan output around available PoE power. Continuous output is rated at 10W, while peak capability varies with PoE, PoE+, or PoE++. Higher-power network supply modes provide more peak headroom for the installation.
- Cover the listening area with a pendant layout. The specified dispersion is 108 degrees over the stated 1–4kHz measurement range. Speaker height, spacing, and room acoustics should guide the final layout.
- Adjust the suspension height during installation. The included suspension cable kit provides an adjustable mounting arrangement. Maintain the specified ceiling clearance and use suitable structural attachment points for the installation.
- Protect the internal amplifier. Current, short-circuit, and temperature protection functions respond to abnormal conditions. These safeguards help the integrated speaker manage overloads during operation.
- Order by individual speaker. This part is supplied as one white speaker with its suspension kit. Two individual boxes may be packed in a master carton; that shipping arrangement does not change the single-unit listing.
Specifications
| Manufacturer part number | 60-000149 |
|---|---|
| PN–6D–(W)–(SINGLE) | 6" PoE powered Dante pendant speaker, white (single unit) |
| DESCRIPTION | 6.5", 2–way, PoE powered Dante pendant speaker |
| Audio — Driver: LF Driver | 165 mm (6.5 in) high–output driver with polypropylene cone and rubber surround |
| Audio — HF Driver | 19 mm (0.75 in) liquid–cooled soft–dome tweeter |
| Audio — Frequency characteristics Frequency Range (-10dB) | 65Hz–20kHz |
| Audio — Frequency Response (±3dB) | 85Hz–18kHz |
| Audio — Dispersion angle | 108deg. (1 kHz to 4 kHz) |
| Audio — Power handling: PoE++ | 10W continuous / 30W peak |
| Audio — PoE+ | 10W continuous / 20W peak |
| Audio — PoE | 10W continuous / 10W peak |
| Audio — OCM (Over-Current Protection) | Monitors input current and reduces gain to prevent damage |
| Audio — OSP (Output Shortcut Protection) | Shuts down and restarts the amplifier if a shortcut is detected |
| Audio — OTM (Over-Temperature Protection) | Automatically lowers volume if overheating is detected, restoring it once temperature normalizes |
| Audio — Maximum SPL: PoE++ | Continuous: 100dB / Peak 105dB |
| Audio — PoE+ | 100dB / Peak 103dB |
| Audio — PoE | 100dB / Peak 100dB |
| MECHANICAL — Installation Type | Pendant ceiling speaker |
| MECHANICAL — Mounting | Suspension cable systems including: 4.5m / 177” long 2mm / 0.08” diameter high–tensile galvanized–steel wire with spring–clip carabiner for clipping onto the loudspeaker bracket and a gripple fastener for adjusting speaker height. Cable have SWL rating of 45 kg / 100lbs |
| MECHANICAL — Connectors | RJ–45, factory reset button |
| MECHANICAL — Dimensions Speaker height (w/o mounting bracket) | 312mm / 12.3” |
| MECHANICAL — Speaker height (including mounting bracket) | 333mm / 13.1” |
| MECHANICAL — Speaker outer diameter | 224mm / 8.82” |
| MECHANICAL — Minimum distance between the grill and the ceiling | 380mm / 15” |
| MECHANICAL — Shipping Packed as single, 2 single boxes are packed in a master box | Eco–friendly mono–material recyclable carton |
| MECHANICAL — Shipping Dimensions (single unit) | 330mm x 330mm x 395mm / 13" x 13" x 15.6" |
| MECHANICAL — Shipping Dimensions (2 units in a master box) | 668mm x 338mm x 413mm / 26.3" x 13.3" x 16.3" |
| MECHANICAL — Shipping weight (single unit) | 4.10Kg / 9lbs |
| MECHANICAL — Shipping weight (2 units in a Master box) | 8.8Kg / 19.4lbs |
| MECHANICAL — Material Grill | Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo |
| MECHANICAL — Baffle & back enclosure | V–0 flame–retardant material |
| MECHANICAL — Environmental Operating Temperature | –5° to +50°C (23°F to 122°F.) |
| MECHANICAL — Storage Temperature | –10° to +55°C (14°F to 131°F.) |
| MECHANICAL — Humidity | 30% to 85%, RHL non–condensing |
| REGULATORY — Safety IEC 62368 (CB) / CE LVD | Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices. |
| REGULATORY — UL 62368-1 | Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems. |
| REGULATORY — BIS (India) | Safety, quality, and performance requirements specific to the Indian market. |
| REGULATORY — RCM | (Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand. |
| REGULATORY — EMI FCC / IC | Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference. |
| REGULATORY — Environmental | RoHS, REACH, WEEE |
| Accessories — In the Box | 1 speaker (single unit) |
| Accessories — In the Box | 2 speakers are packed in a single master box |
| Accessories — In the Box | 1 suspension cable kit |
| Accessories — In the Box | Quick Start Guide |
Technical Questions and Answers
What does the PN-6D do?
The Kramer PN-6D receives networked Dante audio and power over Ethernet in a suspended speaker format. Its 6.5-inch two-way design brings sound coverage to spaces suited to pendant mounting.
What is specified for pn–6d–(w)–(single)?
6" PoE powered Dante pendant speaker, white (single unit)
What is specified for description?
6.5", 2–way, PoE powered Dante pendant speaker
What is specified for driver: lf driver?
165 mm (6.5 in) high–output driver with polypropylene cone and rubber surround
What is specified for hf driver?
19 mm (0.75 in) liquid–cooled soft–dome tweeter
What is specified for frequency characteristics frequency range (-10db)?
65Hz–20kHz
What is specified for frequency response (±3db)?
85Hz–18kHz
What is specified for dispersion angle?
108deg. (1 kHz to 4 kHz)
Choosing the Right Product
What is the Kramer PN-6D used for?
It is used for networked audio in open-ceiling commercial spaces. Receives networked Dante audio and power over Ethernet in a suspended speaker format. Its 6.5-inch two-way design brings sound coverage to spaces suited to pendant mounting.
Who should choose the PN-6D?
Choose this model when your project needs networked audio in open-ceiling commercial spaces. Compare the model-specific connections and specifications above with the equipment in your system.
What should I check before ordering the PN-6D?
Confirm manufacturer part 60-000149, the white finish, the required connections and the installation requirements. Use the linked documentation to check compatible equipment and required accessories.
