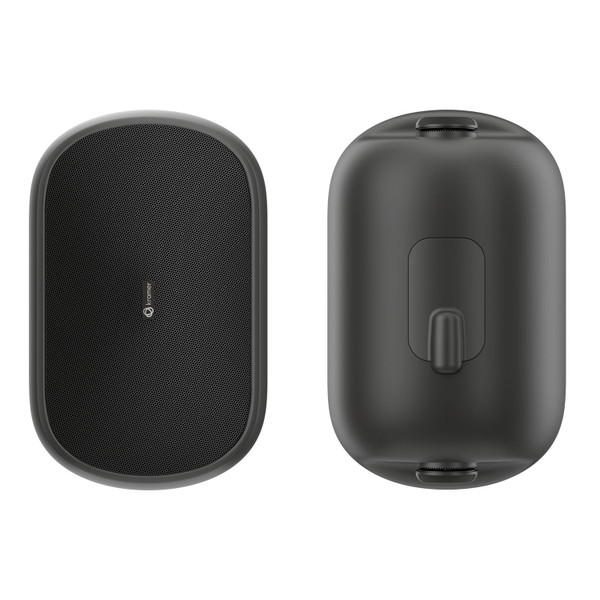

This Kramer AW-6D/60-000108 6.5 Inch, 2-way Wall Mounted PoE Powered Dante Speaker (Black) is a compact, high−performance 6.5” all−weather PoE−powered Dante speaker, engineered to deliver outstanding sound quality in both indoor and outdoor environments. Built to withstand harsh weather conditions while meeting indoor installation requirements, the AW−6D is the ideal choice for mixed−use installations where consistency in performance and design is key.
Designed with the system integrator in mind, the AW−6D features a built−in amplifier, DSP, and mixer, enabling two−channel mixing and advanced audio tuning. Users can easily configure parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, as well as a “find me” tone trigger and firmware updates − all via Kramer’s intuitive Speaker Utility software.
The AW−6D includes a robust API for Kramer Control and third−party control systems, allowing remote control of volume, mute, and additional functions.
The AW−6D is available in black or white, ensuring it fits seamlessly into any professional installation.
Kramer AW-6D/60-000108 6.5 Inch, 2-way Wall Mounted PoE Powered Dante Speaker (Black) Features:
- Exceptional sound performance
- IP66 rated for outdoor installations
- Made from V–0 flame retardant materials. designed to comply with UL1480A for indoor installations
- Supports PoE++/PoE+/PoE (auto–negotiate)
- Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
- Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
- Power handling: 10W continuous / 30W peak
- Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL - Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368
FCC+IC, BIS, RCM
RoHS, REACH, WEEE - Industrial design: — wall–mounted, tool–less installation, available in black & white colors, removable logo
- The AW–6D all–weather PoE powered Dante Speaker is a high–end solution for both outdoor and indoor installations delivering high–performance high–quality sound in professional Dante networked audio installations.
- Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
- 1 mounting bracket + 2 toolless bracket screws
- 1 Silicon Grommet
- Quick Start Guide
Why not buy this Kramer AW-6D/60-000108 6.5 Inch, 2-way Wall Mounted PoE Powered Dante Speaker (Black) from HDTV Supply today?
Kramer AW-6D/60-000108 6.5 Inch, 2-way Wall Mounted PoE Powered Dante Speaker (Black) Specification:
- DESCRIPTION
- All weather, 6.5”, 2–way wall mounted PoE powered Dante speaker
- Audio
- Driver:
- LF Driver: 165 mm (6.5”) driver with polypropylene cone and rubber surround
- HF Driver: 25mm (1") soft dome with dampening, ferrofluid — cooled
- Frequency characteristics
- Frequency Range (-10dB): 60Hz–20kHz
- Frequency Response (±3dB): 84Hz–20kHz
- Dispersion angle: 136deg. (1 kHz to 4 kHz)
- Power handling:
- PoE++: 10W continuous / 30W peak
- PoE+: 10W continuous / 20W peak
- PoE: 10W continuous / 10W peak
- OCM (Over-Current Protection): Monitors input current and reduces gain to prevent damage
- OSP (Output Shortcut Protection): Shuts down and restarts the amplifier if a shortcut is detected
- Sound Pressure Level (SPL):
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL: PoE++: Continuous: 100dB / Peak: 105dB
- Maximum SPL: PoE+: Continuous: 100dB / Peak: 103dB
- Maximum SPL: PoE: Continuous: 100dB / Peak: 100dB
- Built-in Protection OTM (Over-Temperature Protection): Automatically lowers volume if overheating is detected, restoring it once temperature normalizes
- Driver:
- MECHANICAL
- Installation
- Type: Surface mounted vertical or horizontal
- Mounting: Toolless mounting bracket
- Connectors: RJ–45, factory reset button
- Dimensions
- Dimensions without Bracket: 201mm x 168mm x 320mm / 7.91” x 6.63” / 12.6”
- Dimensions with Bracket: 201mm x 205mm x 320mm / 7.91” x 8.06” / 12.6”
- Shipping dimensions (single unit): 287mm x 235mm x 385mm / 11.3" x 9.3" x 15.2"
- Shipping dimensions (2 units in a Master box): 477mm x 296mm x 403mm / 18.8” x 11.7” x 15.9”
- Shipping weight (single unit): 3.5Kg / 7.7lbs
- Shipping weight (Master box): 7.4Kg / 16.3lbs
- Material
- Grill: Aluminum, removable logo
- Baffle & back enclosure: V–0 Flame Retardant
- Bracket: Aluminum
- Installation
- Environmental
- Operating Temperature: –5° to +50°C (23°F to 122°F.)
- Storage Temperature: –10° to +55°C (14°F to 131°F.)
- Humidity: 30% to 85%, RHL non–condensing
- Weight per single speaker (including mounting bracket)
- 2.9kg / 6.4lbs
- REGULATORY
- Safety
- IEC 62368 (CB) / CE LVD
- UL 62368-1
- BIS (India)
- RCM
- EMI
- FCC / IC
- Environmental
- RoHS, REACH, WEEE
- IP Rating: IP66
- Safety
- Accessories
- In the Box: 1 speaker (single unit), 2 speakers are packed in a single master box
- In the Box: 1 mounting bracket + 2 toolless bracket screws
- In the Box: Quick Start Guide
