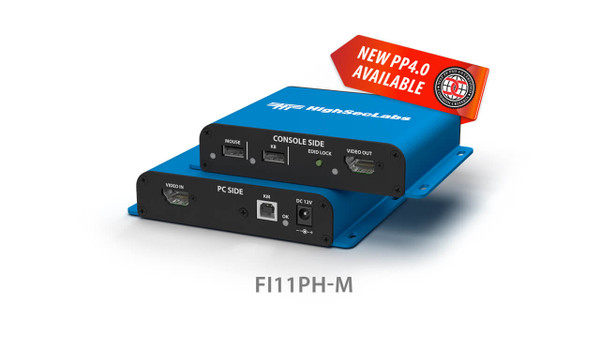

The Kramer FI11PH-M isolates a computer connection carrying video, keyboard and mouse signals. The listed video interfaces support DisplayPort/HDMI and video up to 4K30.
FI11PH-M Detailed Features
- Place an isolation boundary at the workstation. The unit sits between a computer and supported peripherals. It is intended for installations where directly connecting a display or console peripherals would not provide the required separation.
- Connect video, keyboard, and mouse. The KVM isolator supports a computer connection with DisplayPort/HDMI video and keyboard/mouse signals. Select the approved peripheral types and cable arrangement described for this model.
- Support the specified Ultra HD format. The model-specific video limit is 4K30. Configure compatible source and display equipment within that limit rather than assuming the capability of another isolator variant.
- Capture monitor identification deliberately. EDID is captured when the installer uses the designated control. This avoids a continuously open display-identification path between the display and source.
- Restrict the display information passed to the computer. The isolator parses EDID and limits it to the essential information needed for operation. This is part of its approach to reducing unwanted communication through the display connection.
- Use the prescribed initialization procedure. The manufacturer provides an EDID capture and restart sequence. Follow it when setting up or changing a display so the source receives the intended monitor information.
- Plan mounting and power for the chosen model. Compatible HSL mounting and power-distribution accessories can support a grouped installation. Confirm the exact accessory and device combination rather than assuming every isolator uses the same arrangement.
Specifications
| Manufacturer part number | 22-00010790 |
|---|---|
| CONSOLE PORTS — Displays | 1 x DP/HDMI |
| CONSOLE PORTS — Max Resolution (Input & Output) | 3840x2160 @ 30 Hz |
| CONSOLE PORTS — Mouse and Keyboard | USB Type A |
| COMPUTER PORTS — Display Type | 1 x DP/HDMI |
| COMPUTER PORTS — Mouse and Keyboard | USB Type B |
| PHYSICAL — Dimensions | 145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches |
| PHYSICAL — Weight | 0.3 kg (0.64 lbs) |
| POWER — Power Requirements | DC input 12V/1.5A Maximum |
| POWER — AC Input | Wall-mounted power supply included. Power input 90 to 240V AC |
| POWER — Power Type | External Power Supply |
| ENVIRONMENTAL — Operating Temperature | 32° to 104° F (0° to 40° C) |
| ENVIRONMENTAL — Storage Temperature | -4° to 140° F (-20° to 60° C) |
| ENVIRONMENTAL — Humidity | 20 to 80% non condensing; Storage–10 to 90% non condensing |
| SOFTWARE — Supported OS | Windows, Linux, Mac |
| GENERAL INFO — Manufactured | BAA & TAA Compliant |
| GENERAL INFO — Product life-cycle | 10 years |
Technical Questions and Answers
What does the FI11PH-M do?
The Kramer FI11PH-M isolates a computer connection carrying video, keyboard and mouse signals. The listed video interfaces support DisplayPort/HDMI and video up to 4K30.
What does the console displays connection support?
1 x DP/HDMI
What video resolution does it support?
3840x2160 @ 30 Hz
What does the console mouse and keyboard connection support?
USB Type A
What is provided for computer-side display type?
1 x DP/HDMI
What is provided for computer-side mouse and keyboard?
USB Type B
What is specified for dimensions?
145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches
What are the power requirements requirements?
DC input 12V/1.5A Maximum
Choosing the Right Product
What is the Kramer FI11PH-M used for?
It is used for a computer workstation requiring video and HID isolation. Isolates a computer connection carrying video, keyboard and mouse signals. The listed video interfaces support DisplayPort/HDMI and video up to 4K30.
Who should choose the FI11PH-M?
Choose this model when your project needs a computer workstation requiring video and HID isolation. Compare the model-specific connections and specifications above with the equipment in your system.
What should I check before ordering the FI11PH-M?
Confirm manufacturer part 22-00010790, the required connections and the installation requirements. Use the linked documentation to check compatible equipment and required accessories.
