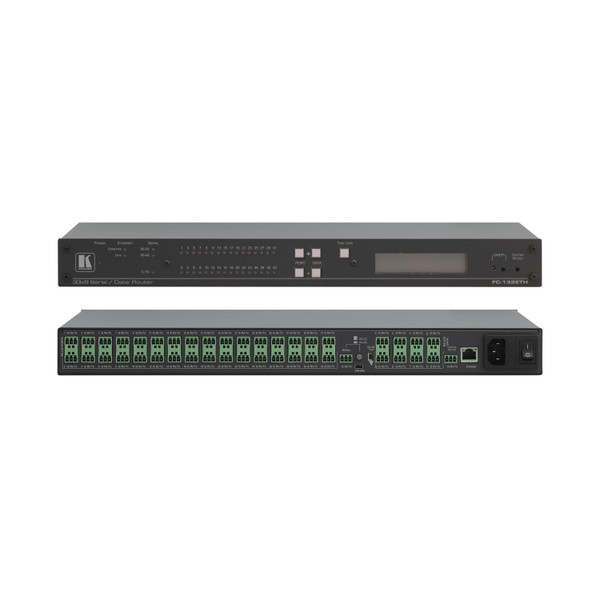

This Kramer FC-132ETH 32-Port Serial Control Gateway & Advanced Serial Communication Matrix is an advanced Ethernet control gateway and serial communication matrix, capable of plug and play deployment over a customer Ethernet LAN. Serving as an advanced serial communication matrix, the FC−132ETH has 32 RS−232 and one RS−232/RS−485 output ports. Serial communication data is switchable to one or more of the eight RS−232 input ports. This can be done according to local control of panel buttons or RS−232 control port, or remote control via Ethernet port control protocol or web−page browsing.
Depending on matrix routing, one−to−one bidirectional or one−to−many unidirectional serial switched communication is supported. Serving as a control gateway, FC−132ETH is capable of remote bidirectional control of customer−controlled devices serially connected to its 32 RS−232 and one RS−232/RS−485 input ports. Multiple control clients can be IP−connected to the FC−132ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
Kramer FC-132ETH 32-Port Serial Control Gateway & Advanced Serial Communication Matrix Features:
- 1 RS–485 or RS–232 Selectable Bi–directional Output Port — Controls a device via bi–directional serial control protocols.
- 32 Bidirectional RS–232 Output Ports — Control a device via bi–directional serial control protocols.
- 8 Bidirectional RS–232 Input Ports — Switchable serial communication to one or more of the serial input ports.
- 4 Panel Buttons & LCD Display — Local panel control of serial matrix ports switching.
- 1 Panel Take / Lock Button — Local panel switching control or tampering prevention.
- 1 Bidirectional RS–232 Control Port — Local protocol–based switching control port.
- 1 Ethernet Control Port — Remote protocol–based control portץ
- Built–in Web Pages — Remote browser–based control and support.
- Simultaneous IP Control Communication — With up to 40 IP control clients.
- Mini USB Port — For firmware upgrades and local technical services.
- Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.
Why not buy this Kramer FC-132ETH 32-Port Serial Control Gateway & Advanced Serial Communication Matrix from HDTV Supply today?
Kramer FC-132ETH 32-Port Serial Control Gateway & Advanced Serial Communication Matrix Specification:
- PORTS
- 1 RS–232/RS–485 selectable and 32 RS–232 serial output ports on 3–pin terminal blocks
- 8 RS–232 serial input ports on 3–pin terminal blocks
- 1 RS–232 serial control port on a 3–pin terminal block
- 1 Ethernet on an RJ–45 connector
- 1 mini USB connector for local services
- SUPPORTED SERIAL PORT BAUD RATES
- 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
- RS-232 COMMUNICATION
- Transparent up to 115200bps
- MAXIMUM DATA HANDLING OF DEVICE
- Up to 310kbps summed on all ports
- CONTROLS
- Serial Select button, RS–485 terminator switch, DHCP and Factory Default buttons
- Front panel buttons and LCD display, RS–232, Ethernet
- INDICATORS
- Power, Ethernet, Serial I/O, and DHCP status LEDs
- POWER CONSUMPTION
- 100–240V AC, 50/60Hz, 17VA
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- –40° to +70°C (–40° to 158°F)
- HUMIDITY
- 10% to 90%, RHL non–condensing
- COOLING
- Convection
- ENCLOSURE TYPE
- Aluminum
- VIBRATION
- ISTA 1A in carton (International Safe Transit Association)
- SAFETY REGULATORY COMPLIANCE
- CE
- ENVIRONMENTAL REGULATORY COMPLIANCE
- Complies with appropriate requirements of RoHs and WEEE
- INCLUDED ACCESSORIES
- Power cord, rack mounting brackets
- OPTIONAL
- Serial cables: C–D9F/OPEN–3/6/10/15/25/35/50, BC–1T–300M bulk cable
- PRODUCT DIMENSIONS
- 19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
- PRODUCT WEIGHT
- 1.7kg (3.7lbs) approx.
- SHIPPING DIMENSIONS
- 55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21") W, D, H
- SHIPPING WEIGHT
- 2.5kg (5.5lbs) approx.
