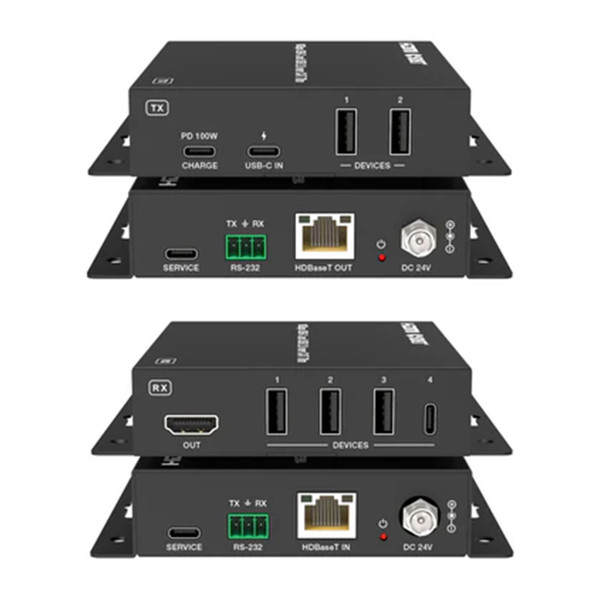

This DVDO Xtend-USBC-70 USB-C to HDMI 70m Extender over HDBaseT with USB (Tx/Rx) is an HDBaseT 3.0 extender that can transmit uncompressed USB-C video and USB 2.0 high speed data signals up to 230ft/70m (4K30) or 131ft/40m (4K60) via a single CAT6A/7 cable.
The transmitter includes 1 x USB-C input, 1 x dedicated USB-C charging port and 2 x USB Device ports.
The USB-C input supports DP Alt mode with video resolutions up to 4K60 4:4:4 at 18Gbps, USB 2.0 data and power charging up to 100W.
The receiver includes 1 x HDMI output and 4 x USB Device ports.
DVDO-Xtend-USBC-70 supports HDR, RS-232 pass-through and bi-directional 24V PoC.
DVDO Xtend-USBC-70 USB-C to HDMI 70m Extender over HDBaseT with USB (Tx/Rx) Features:
- Compliant with HDMI 2.0b, HDCP 2.3 & HDBaseT 3.0
- Video resolution up to 4K@60Hz (4:4:4 8bit) @ 18Gbps
- Extends uncompressed 4K60 signals up to or 131ft/40m and 4K30 signals up to 230ft/70m with CAT6A/7 cable
- Tx includes 1 USB-C input, 1 dedicated USB-C charging port and 2 USB Device ports
- USB-C supports DP-ALT mode for AV (v1.2a), USB 2.0 data and power charging up to 100 watts
- Rx includes 1 HDMI output and 4 USB 2.0 Device ports
- Each USB-A provides power up to 5V/1A
- HDR, HDR10+, Dolby Vision LLM and HLG pass-through
- USB 2.0 high speed over HDBaseT 3.0
- RS-232 signal pass-through
- Audio passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Bi-directional 24V PoC
Why not buy this DVDO Xtend-USBC-70 USB-C to HDMI 70m Extender over HDBaseT with USB (Tx/Rx) today?
DVDO-Xtend-USBC-70 User Manual
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Xtend-USBC-70 USB-C to HDMI 70m Extender over HDBaseT with USB (Tx/Rx) today?
What maximum video resolution and color sampling does this extender support?
A: It supports up to 4K@60Hz with 4:4:4 color sampling at 18Gbps (8‑bit listed).
Does the USB-C input support DisplayPort Alt Mode, USB data, and power charging?
A: Yes; the USB‑C input supports DP Alt Mode (v1.2a) for AV, USB 2.0 data, and power charging up to 100W when the CHARGE port is used.
What USB ports and USB speeds are available at the transmitter and receiver?
A: The transmitter has one USB‑C IN plus two USB‑A device ports; the receiver has one USB‑C and three USB‑A device ports, all operating as USB 2.0 high speed over HDBaseT.
Can the extender pass HDR and common HDR formats?
A: Yes; it passes HDR, HDR10, HDR10+, Dolby Vision and HLG.
Does the extender support RS‑232 pass‑through and API control?
A: Yes; it supports RS‑232 signal pass‑through and a SERVICE USB‑C port for API/firmware control with ASCII commands at 115200 baud.
What cable type does this extender require between TX and RX?
A: You must use a single CAT6A or CAT7 cable for the HDBaseT link.
