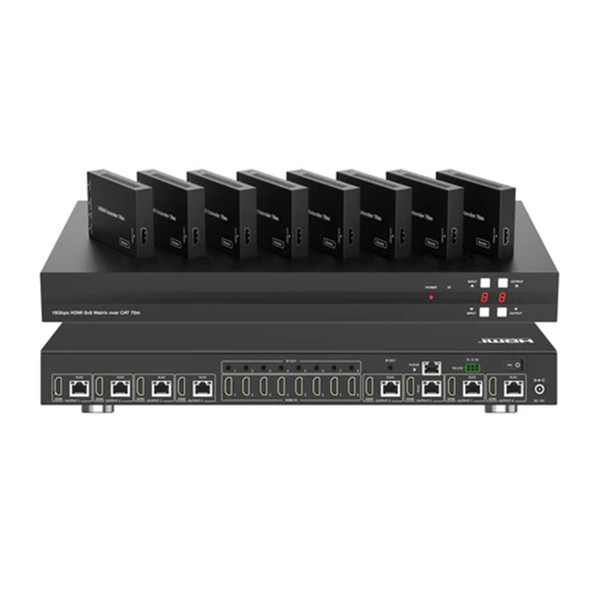

This DVDO Matrix-88-CAT 4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs is a 4K 8x8 matrix switcher with 8 HDMI inputs and 8 HDMI outputs with 8 mirrored CAT outputs, allowing the connection of 8 HDMI sources to up to 16 displays.
It can transmit video signals with resolutions up to 4K2K@60Hz 4:4:4 and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.
The CAT outputs can extend the signals up to 230ft/70m to the CAT receivers that come with the matrix switcher.
DVDO-Matrix-88-CAT supports one-way IR matrix function and can be controlled with front panel buttons, IR remote, RS-232, IP and web GUI.
DVDO Matrix-88-CAT 4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs Features:
- HDMI 2.0b and HDCP 2.2/1.x compliant
- Video resolutions up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
- 8 HDMI inputs, 8 HDMI + 8 mirrored CAT outputs
- HDMI ports support 18Gbps lossless compressed video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision & HLG
- CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Advanced EDID management and CEC control
- 12V POC on all CAT ports
- One-way IR matrix function
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Why not buy this DVDO Matrix-88-CAT 4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs today?
DVDO-Matrix-88-CAT User Manual
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Matrix-88-CAT 4K 8x8 HDMI Matrix Switcher with Mirrored Category Outputs today?
Can this matrix send the same HDMI output over a CAT cable to a remote receiver?
A: Yes; each HDMI output is mirrored to a CAT output so the same HDMI output runs simultaneously over the CAT port to a receiver.
What maximum video resolution and chroma does the Matrix-88-CAT support on HDMI and CAT ports?
A: It supports video resolutions up to 4K2K@60Hz with YUV 4:4:4 on all HDMI and CAT ports.
How far can the CAT outputs extend a video signal to the included CAT receivers?
A: CAT outputs can extend the signal up to 230 ft (70 m) over a single CAT6 cable to a CAT receiver.
Does the matrix support HDCP and HDMI 2.0b bandwidth for HDR and high-bit-depth color?
A: Yes; the unit is HDMI 2.0b and HDCP 2.2/1.x compliant and supports 18Gbps bandwidth suitable for HDR and higher color depths described in the manual.
Can I control the matrix from a network and is there a web GUI?
A: Yes; the Matrix supports LAN control and provides a Web GUI for control and configuration.
Does the matrix provide EDID management and can I upload custom EDID files?
A: Yes; it offers advanced EDID management with 21 factory EDID presets, two user EDID slots, copy modes, and Web GUI upload/download for user EDID files.
What IR control behavior does the CAT receiver support for controlling source devices remotely?
A: The system supports a one-way IR matrix: IR received at a CAT receiver is routed back to the corresponding IR OUT on the matrix tied to the selected input, letting you control the input source from the remote end.
Can I automate switching and control the matrix over RS-232, and is a command list available?
A: Yes; the matrix supports RS-232 control with an ASCII command set (default serial 115200 baud) for power, routing, EDID, CEC and network functions.
Will the included CAT receivers power from the matrix over CAT cable?
A: Yes; the manual states the CAT receiver can be powered by the matrix via the CAT cable and the matrix provides 12V POC on all CAT ports.
