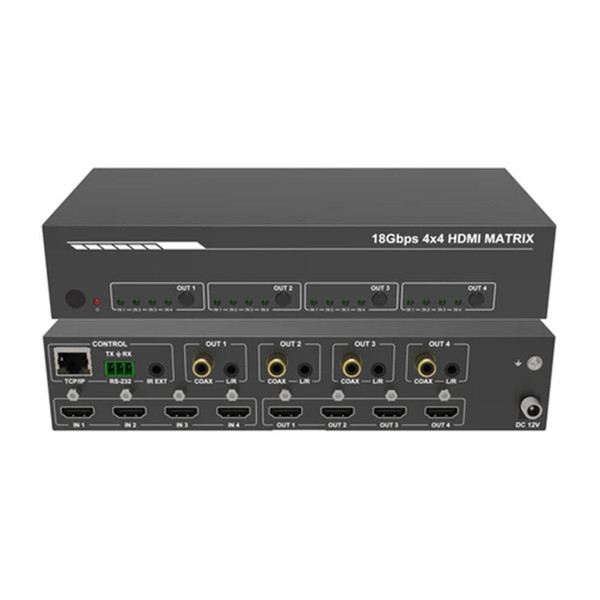

This DVDO Matrix-44 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR is a compact matrix switcher with four HDMI inputs and four HDMI outputs, allowing to route independently up to four HDMI sources to four separate displays.
It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
Each HDMI output includes two separate de-embedded audio outputs: one coaxial output and one analog L/R output.
It supports ARC, HDR, 4K to 1080p downscaling as well as advanced EDID management.
The unit can be controlled via front panel buttons, IR, RS-232 and IP with an intuitive web GUI.
DVDO Matrix-44 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR Features:
- HDMI 2.0, HDCP 2.2 / 1.4 and DVI 1.0 compliant
- Video resolutions up to 4K2K@60Hz (YUV 4:4:4)
- Supports 18Gbps video bandwidth
- Individual 4K -> 1080p scaling for each output
- Audio de-embedding with separate coaxial & analog L/R analog outputs for each HDMI output
- ARC audio return to the coaxial outputs only
- HDMI audio formats include PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio & DSD
- Supports HDR 10 / 10+
- Advanced EDID management
- Control via front panel buttons, IR, RS-232 and IP with intuitive web GUI
- Compact design for easy and flexible installation
Why not buy this DVDO Matrix-44 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR today?
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Matrix-44 4K 4x4 HDMI Matrix Switcher with Audio Outputs & HDR today?
Can each HDMI output be downscaled independently from 4K to 1080p?
A: Yes; each HDMI output can be individually scaled from 4K to 1080p or set to bypass or AUTO scaler modes.
What audio outputs are available for each HDMI output?
A: Each HDMI output provides two de‑embedded audio outputs: one coaxial RCA output and one analog L/R 3.5mm mini‑jack.
If I enable ARC on an output, where does the returned audio appear?
A: When ARC is enabled for an output, the returned audio is sent to that output's coaxial port and the L/R analog port will be muted.
What RS-232 settings and command termination does the Matrix use?
A: The RS-232 interface uses 115200 baud by default, 8 data bits, no parity, 1 stop bit, and all commands must be terminated with an exclamation mark (!).
Will the Matrix-44 show its IP address so I can access the web GUI?
A: Yes; the device reports its current IP address and you can enter that address into a browser to access the built‑in web GUI.
Can I control multiple outputs or inputs at once using CEC from the web GUI?
A: Yes; the CEC page in the Web GUI lets you control multiple inputs and multiple outputs simultaneously for power and source functions.
How do I upload a custom EDID file to the Matrix?
A: Use the Input page in the Web GUI: browse to select the EDID binary on your PC, choose User 1 or User 2, then click Upload.
