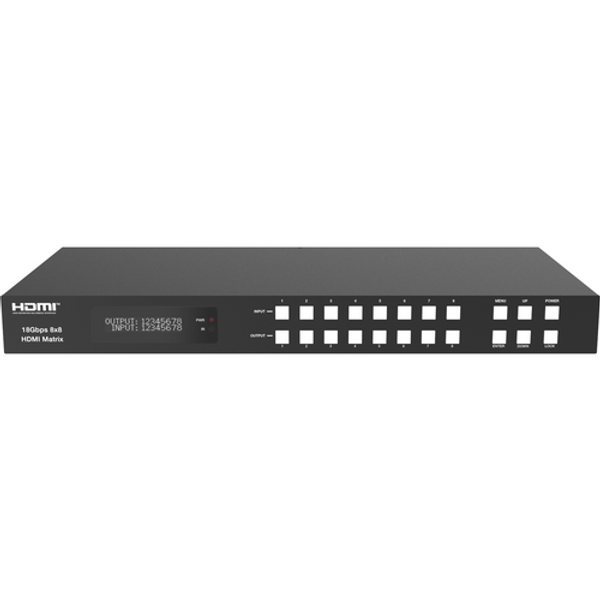

This DVDO Matrix-88 4K HDMI 8x8 Matrix Switch with ARC Function supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.
DVDO Matrix-88 4K HDMI 8x8 Matrix Switch with ARC Function Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Support 18Gbps video bandwidth
- Dolby Vision, HDR10+ and HLG are supported.
- Support 4K->1080P Down Scaler for each output port
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
- Master Audio)
- Audio de-embedded is supported via analog and coax ports
- ARC, CEC and smart EDID management are supported
- 1U rack mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Why not buy this DVDO Matrix-88 4K HDMI 8x8 Matrix Switch with ARC Function today?
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Matrix-88 4K HDMI 8x8 Matrix Switch with ARC Function today?
Q: What does the DVDO-Matrix-88 do?
A: It’s an HDMI traffic manager. Plug in up to 8 devices - Blu-ray, console, laptop - and send them to 8 screens. No crawling behind the TV. No cable swapping. Pick the source, press a button, done.
Q: What are the key specifications of the DVDO-Matrix-88?
A: Key specifications:-
- 8 HDMI inputs, 8 HDMI outputs
- Supports 1080p HD video
- Plays HDCP-protected content like Netflix or Blu-rays
- Control with buttons, remote, RS-232, or IP
- EDID management so a 1080p TV and an older one can still work together
- Audio extraction if you want sound routed separately
Q: Why should I buy the DVDO-Matrix-88?
A: Because it saves time and hassle. A sports bar can throw different games on different TVs without touching cables. In an office, one laptop can feed every meeting room. At home, the kids can game in one room while you finish a movie in another. One box keeps the peace.
Q: Do you have a Podcast of the DVDO-Matrix-88?
A: No podcast. But there are demo videos. And honestly, those are quicker to understand than audio.
Q: Is the DVDO-Matrix-88 in stock?
A: It changes. The fastest way is the product page or a quick call to HDTV Supply.
Q: What is the warranty of the DVDO-Matrix-88?
A: One year. If something dies - say an HDMI port - you send it back, and it’s repaired or replaced. Extended coverage is sometimes available.
Q: What is the return policy of the DVDO-Matrix-88?
A: About 30 days if it’s unused and still in the box. Always check the return page first so you know the exact steps.
Q: What is the phone number for tech support for the DVDO-Matrix-88?
A: Call 833-648-3772. A real person will walk you through setup or help if it’s acting up.
