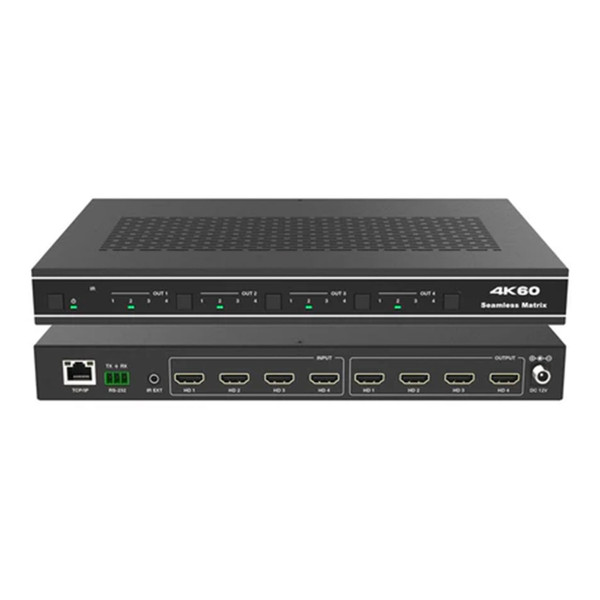

This DVDO Matrix-44SS-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller is a 4K 4x4 seamless matrix switcher and video wall controller.
With its video wall function, it can output 10 different display modes including 2x2, 4x1, 1x4, etc... that can be saved as presets.
It also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system.
Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.
DVDO Matrix-44SS-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller Features:
- Compliant HDCP 2.2 and HDCP 1.4
- Features 2 operational modes: 4×4 Matrix (seamless switch) and Video Wall (2×2, 4×1 or 1×4 configurations)
- Seamless video switching
- Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4) as specified in HDMI 2.0b
- HDMI outputs support upscaling / downscaling to any resolution up to 4096x2160@60Hz 4:4:4
- Support LPCM, DD, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Advanced EDID management
- Web interface module for control and configuration
- Control via front panel, IR, RS-232 and TCP/IP
Why not buy this DVDO Matrix-44SS-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller today?
DVDO-Matrix-44SS-VW User Manual
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Matrix-44SS-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller today?
1.Is this matrix HDCP 2.2 compatible?
A: Yes — the DVDO Matrix-44SS-VW is compliant with HDCP 2.2 (and HDCP 1.4).
2.How does EDID management work on this unit?
A: The unit provides 12 factory EDID presets, two user-defined EDIDs, and four copy-from-output EDID options that you can assign via RS-232 or the Web GUI.
3.What video wall layouts and preset capabilities are available?
A: It supports 10 video wall display modes (including 2×2, 4×1, 1×4 and others) and lets you save up to eight presets.
4.What RS-232 settings and command format does the unit use for automation?
A: RS-232 uses ASCII commands with 115200 baud (default), 8 data bits, 1 stop bit and '!' as the command delimiter.
5.What is the factory default IP address and how do I reach the Web GUI?
A: The default IP address is 192.168.0.100; connect the Matrix TCP/IP port to a PC on the same subnet and open that IP address in a browser to access the Web GUI.
