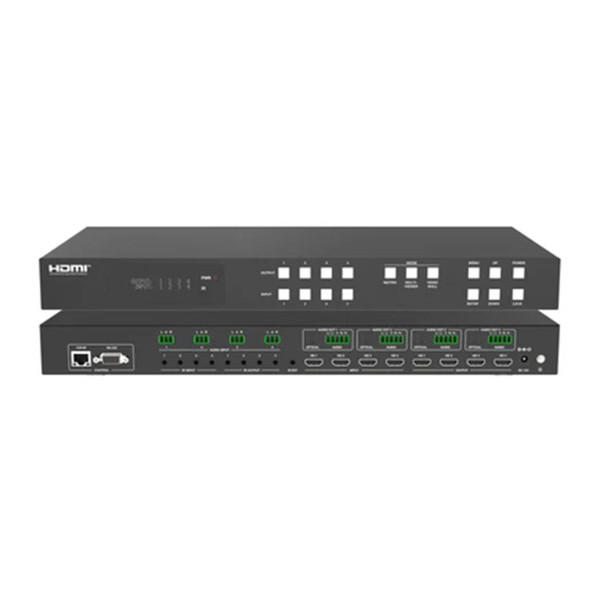

This DVDO Matrix-44SS-MV-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller with Multiview & Audio Outputs is a 4K 4x4 seamless matrix switcher and video wall controller. It supports HDMI signals with resolutions up to 4K60 4:4:4 with an 18Gbps bandwidth.
With its video wall function, it can output 10 different display modes including 2x2, 4x1, 1x4, etc... that can be saved as presets.
DVDO-Matrix-44SS-MV-VW offers multiple display modes ranging from a single view mode to different multiview modes allowing 2, 3 or all 4 sources to be displayed on the same screen.
DVDO Matrix-44SS-MV-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller with Multiview & Audio Outputs Features:
- HDMI 2.0 / HDCP 2.2 compliant
- Supports video resolutions up to 4K@60Hz 4:4:4 at an 18Gbps video bandwidth
- Seamless switching between inputs
- 12 display modes with multiview function and 9 display modes with video wall function
- Audio embedding and de-embedding with separate audio inputs and outputs
- HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
- CEC control & advanced EDID management
- Control via front panel buttons, IR remote, RS-232, and IP (web GUI)
Why not buy this DVDO Matrix-44SS-MV-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller with Multiview & Audio Outputs today?
DVDO-Matrix-44SS-MV-VW User Manual
DVDO-Matrix-44SS-MV-VW Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Matrix-44SS-MV-VW 4K 4x4 Seamless HDMI Matrix Switcher & Video Wall Controller with Multiview & Audio Outputs today?
Will this unit pass 4K at 60Hz with full 4:4:4 chroma?
A: Yes — the Matrix-44SS-MV-VW supports 4K@60Hz 4:4:4 up to an 18Gbps video bandwidth.
Does the switcher enforce HDCP 2.2?
A: Yes — the unit is listed as HDMI 2.0 / HDCP 2.2 compliant.
Can I display multiple inputs on one screen (multiview) and use video wall layouts?
A: Yes — it offers multiview modes and a video wall function with multiple layout presets you can save.
What HDMI audio formats will pass through the device?
A: It supports LPCM plus a range of Dolby and DTS formats including Dolby TrueHD and DTS‑HD Master Audio.
What color spaces and bit depths are supported?
A: The unit supports RGB and YCbCr (4:4:4, 4:2:2, 4:2:0) and 8/10/12‑bit color depths.
Can I save and recall video wall or multiview layouts for meetings or signage?
A: Yes — the device can save layouts as presets so you can recall video wall and multiview configurations.
Is this product intended for conference rooms, digital signage, or hospitality installations?
A: Yes — the datasheet lists conference rooms, digital signage, hospitality, retail, education, restaurants, houses of worship, and residential among its applications.
