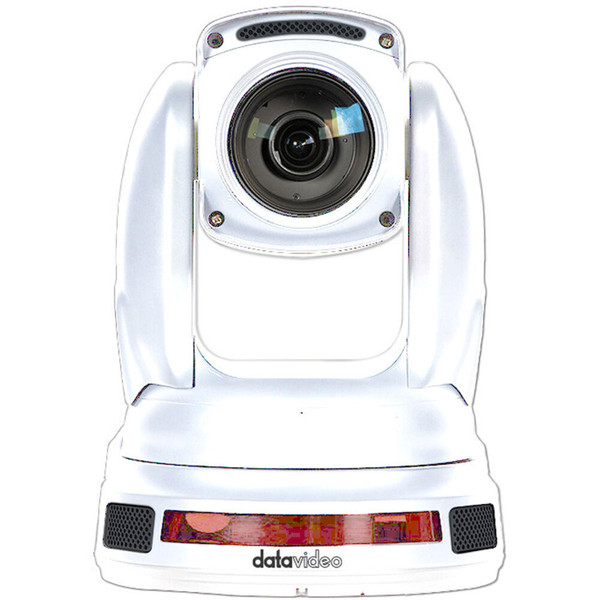

Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White)

Datavideo

Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White)
$3,499.00
Part Number:
PTC-600W
Condition:
New
Availability:
In Stock
1:
Simultaneous Outputs
2:
Versatile Streaming Capabilities
3:
Performance Under Low Light
4:
Various Control Options
5:
Free USA Shipping
6:
Datavideo Factory Warranty

This Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) features a professional and high-end design, making it suitable for large-scale events such as performance halls, stadiums, lecture theaters, and corporate presentations. Its robust and aesthetically pleasing design is paired with a 30X optical zoom, delivering rich image depth and vibrant color reproduction even in low-light environments.

Additionally, it offers next-generation AI tracking capabilities, ensuring smooth camera movement and natural framing, which enhances the visual presentation and supports high-quality live video production.

Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) Features:

  • 360° Interactive Product View
  • Simultaneous Outputs
  • Exceptional 4K Quality with 30x Optical Zoom
  • Advanced CMOS Sensor for Superior Image Quality
  • Flexible Connectivity and Audio Integration
  • PTC-600 Series for your choices
  • Seamless Auto Tracking and AI-Powered Precision
  • Versatile Streaming Capabilities
  • Tally Light
  • Smooth, Silent, and Precise for Pan - Tilt
  • Performance Under Low Light
  • Lens Distortion Correction
  • Broadcast-Grade Imaging Processing
  • Clean Installs and Powerful Performance with PoE++
  • Multiple Simultaneous Video Outputs
  • Various Control Options
  • RS-422, DVIP® , NDI and Ethernet Camera Control
  • Compliant with the ONVIF Profile S Standard
  • One Ethernet Cable with NDI® | HX3 Technology
  • Natural Tracking, Effortless Shooting
  • Multiple Network Protocol with Dual Stream function
  • NDI® Virtual Input
  • The Benefits of Using NDI PTZ Cameras
  • High-Quality Transmission
  • Integration & Scalability
  • Reduced Cable Clutter
  • Remote Control
  • Interoperability & Compatibility
  • Cost-Effective
  •

Why not buy this Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) today?

Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) Specifications:

Video format / Resolution (HDMI) 2160p60/59.94/50/30/29.97/25 (2160p60/59.94/50 YUV 4:2:2)
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
Video format / Resolution (SDI) 1080p 60/59.94/50/30/29.97/25
720p 60/59.94/50
Image Sensor Sony 1/1.8" CMOS
Effective Pixels (approx.) 8.42 Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 30x Optical, 4x Digital Zoom
Effective Zoom Ratio 31.06x
Gamma Control Off/Normal
Iris Control Auto/Manual
Digital Noise Reductions 2D/3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, One Push, Manual
AGC / Gain Control Yes
HDR/WDR N/A
Mirror / Flip Image Yes
Focus Mode Auto/Manual/One Push
Panning / Tilting Range Pan: 340
Tilt: -20~+105
Preset 255 Positions
Focal Length 30x, f=6.91mm~214.64mm, F1.35(Wide) ~F4.6 (Tele)
Field of View (Horizontal, Wide) 60°
Image Compensation Back light compensation
Video Output HDMI 2.0 x 1
3G-SDI x1
10/100/1000M RJ45 (802.3bt, PoE++) x1
UVC out (USB type C) x1
Audio Input XLRx2 (line in)
3.5mm x1 (mic in)
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI, FreeD
Remote Control Interface Standard/12G-SDI Version:
IR, Web GUI, RS-422/RS-232, DVIP, NDI
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface ----
Streaming Protocols RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI | Hx3
First Stream Supported Resolution 3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution 1280x720
1024x576
720x576 (50Hz)
720x480 (60Hz)
720x408
640x360
480x270
320x240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE PoE++
F/W Update Via Web UI or USB 3.0 (type C)
IR Control Yes
Camera Control Unit RMC-2P
RMC-180 series/
RMC-300 series/
PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Color Black
Dimension (LxWxH) 187(W)x 253(H)x233(D) mm
Weight 3.0 kg
Operating Temp. Range 0~40 °C

Why not buy this Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) today?

Datavideo PTC-600 Catalog

Why not buy this Datavideo PTC-600W 4K 30x Tracking PTZ Camera (White) today?
