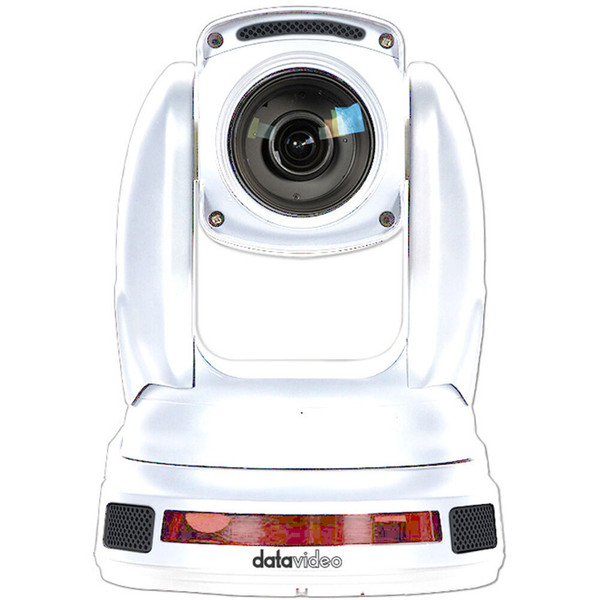

Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White)

Datavideo

Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White)
$3,999.00
Part Number:
PTC-600GW
Condition:
New
Availability:
In Stock
1:
30x Optical Zoom
2:
4x Digital Zoom
3:
340° Pan & -20 to +105° Tilt
4:
AI Auto-Tracking & Subject Framing
5:
Free USA Shipping
6:
Datavideo Factory Warranty

This Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White) combines a 1/1.8" 8.42MP CMOS sensor with 4K60 output and a 30x optical zoom lens to deliver detailed, color-accurate imagery across expansive spaces. The fast f/1.35-4.6 lens and 0.5 lux sensitivity support low-light performance, while 10-bit 4:2:2 image processing ensures smooth tonal gradation and broadcast-grade color reproduction. With a 340° pan range and -20 to +105° tilt, the high-stability motor system enables smooth, near-silent camera movement suited for auditoriums, lecture halls, and performance venues.

Next-generation AI auto-tracking maintains natural subject framing without operator intervention, supporting dynamic presentations and live events. Simultaneous HDMI 2.0, 12G-SDI, 3G-SDI, USB-C, and NDI HX3 video outputs allow flexible integration into broadcast and IP workflows, while RS-232, RS-422, DVIP, NDI, and ONVIF control protocols ensure compatibility with larger control ecosystems. Dual XLR line inputs and a 3.5mm mic input provide direct audio integration, and power is supported via 12 VDC barrel or PoE++, enabling single-cable installations for streamlined system design.

Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White) Features:

  • 1/1.8” 8.42MP Sony CMOS sensor
  • Uncompressed 4K60 video output via 12G-SDI and HDMI, and 1080p60 via 3G-SDI
  • 6.9 to 214.6mm lens with 30x optical and 4x digital zoom
  • 10-bit 4:2:2 image processing for broadcast workflows
  • 0.5 lux minimum illumination at f/1.8
  • AI-powered auto-tracking with natural framing
  • 340° pan and -20 to +105° tilt range
  • RS-232, RS-422, DVIP, VISCA, Pelco-P, Pelco-D, and ONVIF control support
  • Dual-stream encoding and NDI Virtual Input support
  • Simultaneous HDMI 2.0, 12G-SDI, 3G-SDI, USB-C, and NDI HX3 outputs
  • IP streaming via H.264 or H.265 with RTMP, RTMPS, RTSP, and SRT
  • Dual XLR line inputs and 3.5mm audio input
  • PoE++ and 12 VDC power input options

Why not buy this Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White) today?

Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White) Specifications:

Imaging
Image Sensor 1/1.8"-Type CMOS
Effective Sensor Resolution 8.42 Megapixel
Focus Control Autofocus
Manual Focus
Shutter Speed 1/10000 to 1/30 Second
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux at f/1.8 Aperture
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 6.91 to 214.64mm
Max Optical Zoom 30x
Max Digital Zoom 4x
Field of View Horizontal: 60°
Maximum Aperture f/1.35 to 4.6
Video Capture
Video Output via HDMI / SDI/BNC
3840 x 2160p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Internal Recording No
Audio Recording AAC Audio
Broadcast Output NTSC/PAL
Supported Protocols Camera Control
DVIP/FreeD/IP/NDI/ONVIF/Pelco-D/Pelco-P/RS-232/RS-422/VISCA
IP Streaming H.264/H.265/MJPEG via NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT
640 x 360 to 3840 x 2160 up to 60p (Main Stream: 0.03 to 50.00 Mb/s)
320 x 240 to 1280 x 720 up to 60p (Sub Stream)
Control
Presets 255
Pan/Tilt Pan: 340°
Tilt: 125° (-20 to 105°)
Tally Light Yes
Networking
Wireless No
Interface
Video I/O 1x HDMI 2.0 Output
2x BNC (12G-SDI) Output
2x BNC (3G-SDI) Output
1x USB-C Output
1x RJ45 (NDI) Output
Audio I/O 2x XLR 3-Pin Line Input
1x 1/8" / 3.5 mm TRRS Headphone/Mic Microphone Input
Other I/O 1x RJ45 (RS-232, RS-422) Control
1x RJ45 (DVIP, NDI) Control (Shared with Video Output)
Built-In Microphone No
Power
PoE Support Yes: PoE++ 802.3bt
Power I/O 1x Barrel (12VDC at 5 A) Input
Power Consumption Device: 37.4 W
Environmental
Operating Conditions 32 to 104°F / 0 to 40°C
General
Mounting 1x 1/4"-20 Female
Dimensions (W x H x D) 7.4 x 10 x 9.2" / 187 x 253 x 233 mm
Weight 6.6 lb / 3 kg (Body Only)

Why not buy this Datavideo PTC-600GW 4K AI Auto-Tracking PTZ Camera with 30x Optical Zoom and 12G-SDI (White) today?
