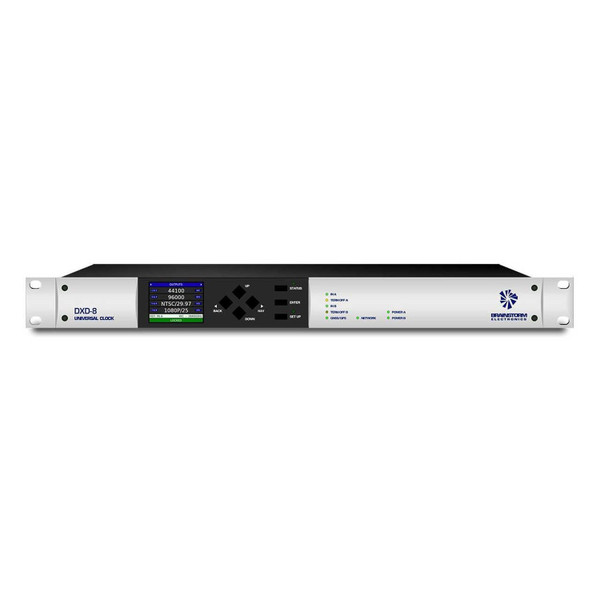

This Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator is a precision multi-format reference generator designed for professional audio, video, and broadcast synchronization applications.
Featuring eight configurable BNC outputs and four independent reference generators, the DXD-8 provides flexible timing signals for facilities using multiple synchronization formats.
Its modular design supports optional Precision Time Protocol (PTP), GPS/GNSS synchronization, LTC timecode, and high-precision oscillator functionality, making it suitable for traditional broadcast facilities and modern IP-based production environments.
Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator Features:
- Eight Configurable BNC Outputs: Deliver multiple reference signals for professional synchronization requirements.
- Four Independent Reference Generators: Support different reference formats or rates simultaneously.
- Audio and Video Synchronization: Generate compatible word clock, AES reference, video sync, and 10 MHz signals.
- Optional PTP Support: Integrate compatible IP-based media systems using IEEE 1588 Precision Time Protocol.
- Optional GPS/GNSS Synchronization: Use an external satellite timing reference with the appropriate hardware.
- Optional LTC Functionality: Support linear timecode generation applications.
- Web-Based Configuration: Configure and monitor compatible functions through the integrated web interface.
- Redundant Reference Inputs: Improve continuity when using multiple external reference sources.
- Dual DC Power Inputs: Support redundant power arrangements
Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator Applications:
Broadcast Production Facilities: Use the DXD-8 as a central reference generator to synchronize compatible broadcast cameras, video production systems, and audio equipment.
Professional Audio Studios: Provide reference timing for digital audio equipment and recording systems that require synchronized operation.
Post-Production Environments: Support consistent audio and video timing across professional editing and post-production workflows.
IP-Based Media Production: With the appropriate PTP option, integrate traditional reference synchronization with compatible IP-based production networks.
Live Event Production: Provide professional reference timing for complex live production installations and mobile broadcast systems.
Available Optional Features: The DXD-8 supports optional capabilities that can extend its functionality:
- PTP synchronization functionality
- GPS/GNSS synchronization
- LTC timecode capabilities
- High-precision OCXO oscillator
Optional features must be selected according to the specific equipment configuration and installation requirements.
Why not buy this Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator today?
Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator Specifications
| Manufacturer | Brainstorm Electronics |
| Model | DXD-8 |
| Product Type | Universal Clock / Multi-Format Reference Generator |
| Reference Generators | 4 independent generators |
| Outputs | 8 configurable BNC outputs |
| Reference Formats | Word Clock, AES Reference, Video Sync, 10 MHz |
| Video Reference | SD Black Burst and HD Tri-Level Sync |
| Network Synchronization | Optional IEEE 1588 PTP |
| GPS/GNSS | Optional |
| LTC Timecode | Optional |
| Configuration | Front-panel and web-based control |
| Power | Dual DC power inputs |
Why not buy this Brainstorm DXD-8 Universal Clock Precision Multi-Format Reference Generator today?
Can the DXD-8 output different reference formats at the same time from separate generators?
A: Yes — the DXD-8 has four independent reference generators so it can supply different reference formats or rates simultaneously from the unit.
Does the DXD-8 support Precision Time Protocol (PTP) for IP-based sync integration?
A: Yes — PTP support is available as an optional capability to integrate with compatible IP-based media systems.
Can the DXD-8 use GPS/GNSS for an external timing reference?
A: Yes — GPS/GNSS synchronization is listed as an optional feature when the appropriate hardware is selected.
Does the unit support LTC timecode generation?
A: Yes — LTC timecode functionality is available as an optional capability.
How can I configure and monitor the DXD-8 remotely on a network?
A: You can configure and monitor compatible functions through the DXD-8’s integrated web interface.
What provisions does the DXD-8 offer for continuity when using external reference sources?
A: The DXD-8 includes redundant reference inputs to improve continuity when multiple external reference sources are used.
Will this unit work in a hybrid facility that uses both traditional sync and IP-based timing?
A: Yes — with the optional PTP capability the DXD-8 can integrate traditional reference synchronization with compatible IP-based production networks.
Can I use the DXD-8 as a central reference in a broadcast production facility?
A: Yes — the DXD-8 is described for use as a central reference generator to synchronize compatible broadcast cameras, video production systems, and audio equipment.
