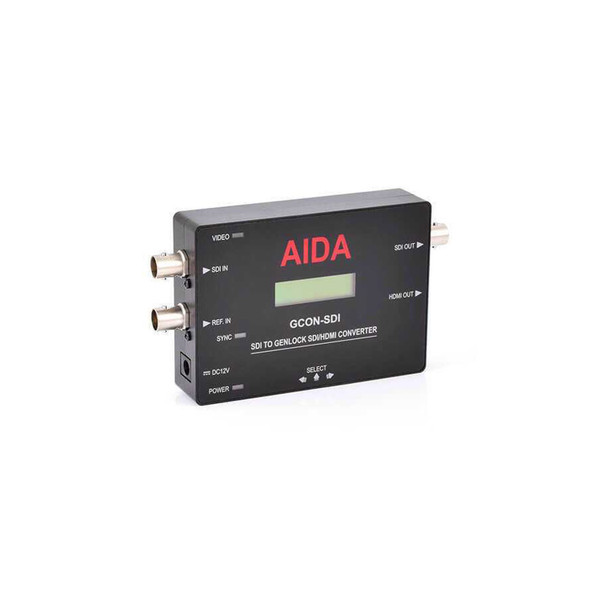

A: The GCON-SDI is an SDI genlock converter that accepts 3G-SDI or HD-SDI video and provides genlocked HD-SDI/3G-SDI and HDMI 1.3a outputs. It is designed to synchronize an SDI source with other production equipment using an external Tri-Level reference.

The converter supports video up to 1080p60 and provides simultaneous HDMI and SDI loop outputs. Its compact form factor and built-in controls make it suitable for camera-side and professional live video applications.

A: The GCON-SDI accepts 1080p at 60, 59.94, 50, 30, 29.97, and 25 fps, plus 1080i at 60, 59.94, and 50 fps. It also supports 720p at 60, 59.94, 50, 30, and 25 fps.

The video path uses 4:2:2 YCbCr 10-bit color and supports 3G-SDI and HD-SDI input. This format coverage allows the converter to integrate with a wide range of HD broadcast and production equipment.

A: The GCON-SDI accepts an external Tri-Level reference input to synchronize its output timing with other video equipment. Genlock can be enabled or disabled, and H-sync and V-sync phase adjustments are available for timing alignment.

This allows the converter to be used in systems where multiple sources must stay synchronized for clean switching. The product supports SMPTE 292M and SMPTE 424M standards and multi-video formats including 59.94 Hz.

A: The GCON-SDI provides genlocked HD-SDI/3G-SDI and genlocked HDMI 1.3a outputs. It also supports simultaneous HDMI and SDI loop output, allowing the SDI source to remain available while feeding another display or HDMI device.

This combination makes it possible to integrate SDI cameras and sources into workflows that use both professional SDI equipment and HDMI monitors or production devices. The genlocked output maintains synchronization with the external reference.

A: The GCON-SDI accepts up to 16 channels of embedded SDI audio. Audio can be passed through the SDI and HDMI outputs, with audio control supporting 16-bit, 20-bit, and 24-bit settings.

Because the audio is embedded in the digital video signal, no separate analog audio input is required for the supported source workflow. This helps maintain a combined video and audio path through compatible SDI and HDMI equipment.

A: The GCON-SDI supports SMPTE 352M ancillary data and provides Payload ID on/off control. Supported payload identification information can therefore be handled as part of the SDI signal workflow.

The converter also supports SMPTE 292M and SMPTE 424M standards. This provides standards-based integration with HD-SDI and 3G-SDI production equipment.

A: Yes. The GCON-SDI includes a built-in pattern generator with thirteen patterns. This can be used to test downstream video equipment, displays, signal paths, and synchronization setups without requiring an external test source.

A built-in LCD menu screen and menu control buttons are also provided. Operators can configure and monitor key settings directly from the converter, which is useful during installation and field setup.

A: The GCON-SDI provides genlock on/off control and adjustable H-sync and V-sync phases. These controls allow the output timing to be fine-tuned against the external reference and other synchronized sources.

Phase adjustment can be useful in multi-camera and live production environments where precise timing relationships are important. The converter is designed to preserve the source signal while applying the required genlock timing.

A: The GCON-SDI measures approximately 130 mm x 75 mm x 24 mm, or 5.11 x 2.95 x 0.94 inches, and weighs about 173 g or 0.38 lb. Its small enclosure is designed for portable and camera-side production use.

The converter operates at 6 W from a 12 VDC supply and accepts +9 to +15 VDC. Its listed operating temperature range is 32°F to 104°F, suitable for typical controlled production environments.

A: The GCON-SDI is intended for production workflows where an SDI or 3G-SDI source needs synchronized SDI and HDMI outputs. Genlock, embedded audio, ancillary-data support, loop output, and adjustable sync phases make it useful for live production and camera-side integration.

The built-in pattern generator, LCD controls, and compact rugged design also support installation, troubleshooting, and field operation. It provides a practical way to add genlock synchronization to compatible SDI sources without a large external converter.
