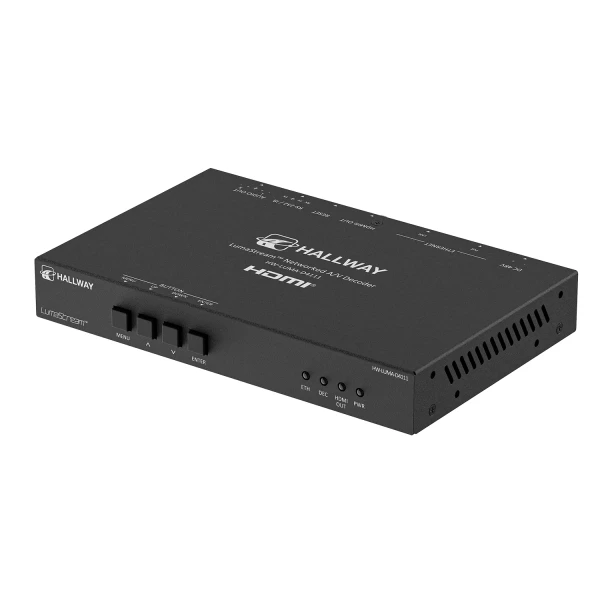

This Atlona HW-LUMA-D4111 LumaStream Networked AV Decoder is an H.264 and H.265 networked AV decoder for HDMI® output, along with RS-232 and IR control. LumaStream is designed for high-performance distribution of video, audio, and control over data networks, with an emphasis on network bandwidth efficiency and scalability.
The LUMA-D4111 receives and decodes video from LUMA-E4211 encoders up to 4K/60 4:4:4. H.265 (HEVC) encoding is ideal for multicast video distribution from HW-LUMA-E4211 encoders.
H.264 encoding is ideal for applications with LUMA-D4111 decoders alongside third-party H.264 platforms for online or on-premises live streaming.
This decoder also features snapshot image captures, for previewing its video output as a thumbnail on a touch panel or in a web browser.
The LUMA-D4111 is equipped with audio de-embedding, fast switching, 4K upscaling and downscaling, video wall processing, simplified stream discovery and selection, decoder daisy-chaining, CEC display control, RS-232, IR and the ability to overlay an image, logo, or text.
It is housed in a compact enclosure, with optional rack mounting accessories available for high-density installation.
Atlona HW-LUMA-D4111 LumaStream Networked AV Decoder Feature:
- H.264 and H.265 (HEVC) decoder for HDMI outputs
- High-efficiency H.264 or H.265 encoding
- Integrated video processing including 4K upscaling and downscaling
- Simplified multicast discovery and joining
- Fast switching
- Preview decoder output as a snapshot image thumbnail
- Enhance AV presentations with visual enhancements
- Audio de-embedding
- PoE+ (Power over Ethernet+) or optional local powering
- Simplify integration with plug and play network switch compatibility
- Secure content distribution with AES-128 encryption
- Supports industry standard network security features and protocols
- Front panel signal status LEDs
- On-screen display
- Field-updatable firmware
Why not buy this Atlona HW-LUMA-D4111 LumaStream Networked AV Decoder from HDTV Supply today?
Atlona HW-LUMA-D4111 LumaStream Networked AV Decoder Specifications:
- Video
- Signal: HDMI
- Copy Protection: HDCP 2.2
- UHD/HD/SD
- 4096×2160 (DCI) @ 30/24 Hz
- 3840×2160 (UHD)(2) @ 60/50/24/25/30 Hz
- 1920×1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
- 1920×1080i(1) @ 25/29.97/30 Hz
- 1280×720p @ 30/50/59.94/60 Hz
- 720×576p @ 50 Hz
- 720×576i @ 25 Hz
- 720×480p @ 59.94/60 Hz
- 720×480i @ 29.97/30 Hz
- VESA(3)
- 2560×1600
- 1920×1200
- 1680×1050
- 1600×1200
- 1600×900
- 1440×900
- 1400×1050
- 1366×768
- 1360×768
- 1280×1024
- 1280×800
- 1280×768
- 1152×768
- 1024×768
- Color Space: YUV, RGB
- Decoding
- Video Compression: H.265, H.264
- Bit Rate: 128 kbps – 60 Mbps
- Scaler: Configurable to any supported output resolution and frame rate
- Latency: 150 ms max end-to-end
- Thumbnails: 1 thumbnail per device, 320×180 px, JPG, updated every 2 seconds
- Audio
- Signal Type: Input: Network Output: HDMI, Balanced Analog, Network
- HDMI Audio
- Format: LPCM 2.0
- Bit Depth: Up to 16 bits
- Sample Rate: 32 kHz, 44.1 kHz, 48 kHz
- Analog Audio
- 2-channel balanced analog
- Output Level: +20 dBu max
- Frequency Response: 20 Hz – 20 kHz ± 0.5 dB
- THD+N: < 0.025%
- Network
- Ports: 2 × RJ45 (PoE port + LAN port)
- Speed: 10/100/1000 Mbps
- Protocols
- Video Streaming: RTP
- Audio Streaming: RTP, up to 2 channels
- Addressing: DHCP, static
- Encryption: AES-128
- QoS Tagging: RFC 2475
- IP Multicast: IGMPv2 and IGMPv3 support
- Management: HTTP, HTTPS, SSH, Telnet, WebSocket, LLDP
- Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS
- Graphics Features
- Text Insertion: Adjustable height/width, scrolling (speed, direction, or static), iterations (up to infinite), positioning, and adjustable color and alpha (transparency) channels.
- Slate / Logo Insertion: PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate mode can be set to off, manual (image always displayed, superimposed on the source signal, and will remain if source signal is lost), auto (image will only be displayed when source signal is lost).
- Control
- RS-232: Device control and configuration; supports baud rates from 2400 to 9600. Bidirectional pass-through from control system to network.
- IR: Pass-through from control system to network. Pass-through from network to control system.
- Connectors
- HDMI OUT: 1 – Type A, 19-pin, female
- PoE / LAN: 2 × RJ45, 10/100/1000 Mbps
- RS-232 / IR OUT: 1 × 4-pin captive screw
- DC Power: 1 × 2-pin captive screw
- AUDIO OUT: 1 × 5-pin captive screw
- Buttons & Indicators
- Buttons: 4 × momentary tact-type: MENU, UP, DOWN, ENTER
- LED Indicators: ETH, STREAM, STATUS
- Power
- PoE Standard: IEEE 802.3af (PoE+)
- Power Consumption: Up to 9 W
- Heat Dissipation: 30.1 BTU/h
- Optional Power Supply: AT-PS-48083-C (48 V DC, sold separately)
- Environmental
- Operating Temperature: +32 to +104 °F (0 to +40 °C)
- Storage Temperature: -4 to +140 °F (-20 to +60 °C)
- Operating Humidity (RH): 20% to 95%, non-condensing
- Mechanical
- Dimensions (H x W x D): 0.98 × 6.89 × 4.34 in. (24.9 × 175 × 110.2 mm)
- Weight: 1.21 lbs (0.55 kg)
- Certification
- Device: CE, FCC, CB, RoHS
- Supply: CE, FCC, cULus, CB, RCM, RoHS
- Compliance
- NDAA-899: Yes
- TAA: Yes
