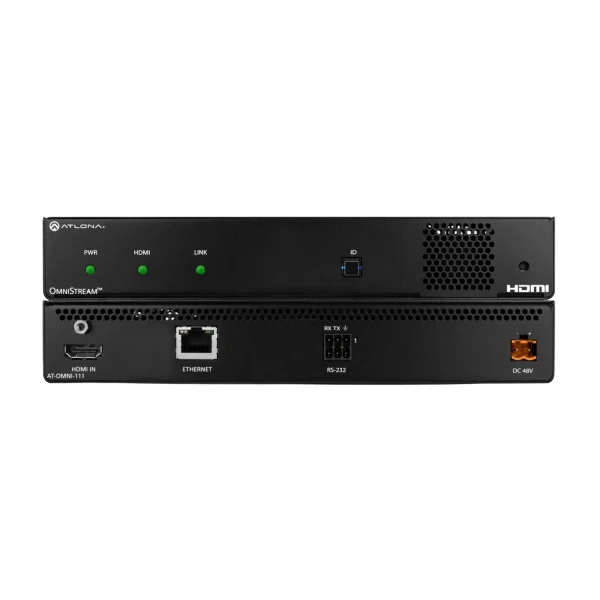

This Atlona AT-OMNI-111 OmniStream Single-Channel Networked AV Encoder is powered by the advanced VCx codec which delivers 4K/60 4:4:4 from encode to decode, with pristine-quality presentation of computer-generated and fast-motion video content.
Ultra-fast switching: A user can switch between video streams up to 4K/60 from OmniStream AV encoders with less than a half-second transition. Fast switching works between video streams at different resolutions and frame rates.
Designed for system expansion: The VCx codec is highly efficient, allowing numerous 4K and 1080p streams over 10 Gigabit uplinks between network switches. This is a powerful advantage whendesigning systems for scalability.
Multiview window processing: The AT-OMNI-121 decoder can ingest up to four streams from AT-OMNI-111 encoders and display them simultaneously on a single screen. The OMNI-111 candeliver a dedicated, secondary stream for multiview.
Additional Features: The Atlona AT-OMNI-111 is a networked AV encoder for HDMI sources up to 4K/60 4:4:4 and HDR. It features the advanced VCx codec which delivers artifact-free image presentation, ultra-fast switching, and ultra-low latency.
READ MORE
Atlona AT-OMNI-111 OmniStream Single-Channel Networked AV Encoder Feature:
- Best-in-class AV over IP performance and reliability over Gigabit Ethernet
- AV encoder for HDMI sources up to 4K/UHD, plus embedded audio and RS-232 or IR control pass-through
- Supports 4K/60 4:4:4 plus HDR formats
- Advanced VCx codec delivers artifact-free presentation of computer-generated content and fast-motion video
- High-efficiency coding enables simultaneous 4K/60 4:4:4 and 1080p streams
- Thumbnail preview of encoded video streams through Velocity AV control or web GUI
- Local or PoE (Power over Ethernet) powering
- Industry-standard, network security features including IEEE 802.1x
Why not buy this Atlona AT-OMNI-111 OmniStream Single-Channel Networked AV Encoder from HDTV Supply today?
Atlona AT-OMNI-111 OmniStream Single-Channel Networked AV Encoder Specifications:
- Video
- Signal: HDMI
- Copy Protection: HDCP 2.2
- UHD/HD/SD
- 4096×2160 (DCI) @ 30/24 Hz
- 3840×2160 (UHD)(2) @ 60/50/24/25/30 Hz
- 1920×1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz
- 1920×1080i(1) @ 25/29.97/30 Hz
- 1280×720p @ 30/50/59.94/60 Hz
- 720×576p @ 50 Hz
- 720×576i @ 25 Hz
- 720×480p @ 59.94/60 Hz
- 720×480i @ 29.97/30 Hz
- VESA(3)
- 2560×1600
- 1920×1200
- 1680×1050
- 1600×1200
- 1600×900
- 1440×900
- 1400×1050
- 1366×768
- 1360×768
- 1280×1024
- 1280×800
- 1280×768
- 1152×768
- 1024×768
- Color Space: YUV, RGB
- Encoding
- Density: Dual encoding engine with independent scalers (VCx codec only)
- Compression Format: VCx and VC-2 (SMPTE-2042)
- Video Quality Optimization: User-selectable: PC Application or Video mode (VC-2 codec only)
- Chroma Subsampling
- 4:4:4: VCx: Yes, VC-2 PC Application: Yes, VC-2 Video: No
- 4:2:2: VCx: Yes, VC-2 PC Application: Yes, VC-2 Video: No
- 4:2:0: VCx: Yes, VC-2 PC Application: No, VC-2 Video: Yes
- Color Depth: 8-bit, 10-bit, 12-bit
- HDR: HDR10, HLG, Dolby® Vision™
- Bit Rate: Configurable up to 900 Mbps(4)
- Scaler
- Encoder 1: Up and down, 3840×2160 max.
- Encoder 2: Up and down, 1920×1080 max.
- Latency: 0.5 frame (e.g. 1080p @ 60 Hz latency is < 8 ms between encoder and decoder). 1.5 frames in Fast Switching mode (e.g. 1080p @ 60 Hz latency is < 24 ms between encoder and decoder). Note: Unusual network configurations may increase overall latency.
- Thumbnails:
- Number of thumbnails: 1 per HDMI input
- Resolution: 320×180 px
- File format: JPG
- Update frequency: 2 seconds
- Audio
- Pass-through
- LPCM 2.0
- LPCM 5.1
- LPCM 7.1
- Dolby® Digital
- Dolby Digital Plus
- Dolby TrueHD
- Dolby Atmos®
- DTS®
- DTS-HD Master Audio™
- Down-mixing: Multichannel LPCM to two-channel LPCM
- Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Bit Depth: Up to 24-bit
- Pass-through
- Protocols
- Video Streaming: RTP
- Audio Streaming: RTP, up to 7.1 channels; AES67, up to LPCM 7.1 channels
- Addressing: DHCP, static
- Encryption: AES-128
- QoS Tagging: RFC 2475
- Discovery: Multicast DNS, LLDP, SAP
- Management: HTTPS, SSH, Telnet, and WebSockets with TLS
- Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS
- IP Multicast: IGMPv2 and IGMPv3 support
- Graphics Features
- Text Insertion: Adjustable height/width, scrolling (speed, direction, or static), iterations (up to infinite), positioning, and adjustable color and alpha (transparency) channels.
- Slate / Logo Insertion: PNG file format, adjustable aspect ratio (keep or stretch), horizontal/vertical size, screen position; slate mode can be set to off, manual (image always displayed, superimposed on the source signal, and will remain if source signal is lost), auto (image will only be displayed when source signal is lost).
- Control
- RS-232: Device control and configuration; supports baud rates from 2400 to 9600. Bidirectional pass-through from control system to network.
- IR: Pass-through from control system to network. Pass-through from network to control system.
- Connectors
- HDMI: 1 – Type A, 19-pin, female, locking
- ETHERNET(6): 1 – RJ45, 10/100/1000 Mbps
- RS-232 / IR: 1 – Captive screw, 6-pin (2 ports); RS-232 on port 1, IR on port 2
- Power: 1 – Captive screw, 2-pin
- Indicators and Controls
- PWR: 1 – LED, tricolor (red, amber, green)
- HDMI: 1 – LED, bicolor (red, green)
- LINK: 1 – LED, bicolor (red, green)
- ID: 1 – Momentary, tact type. Provides two separate functions: (1) Sends an identification broadcast message over the network to any listening devices. (2) Reset the unit to factory-default settings.
- Reboot: 1 – momentary, tact-type
- Power
- PoE: IEEE 802.3af
- Consumption: Up to 12 W
- BTU/h: 40.9
- External Power Supply (Optional): Input: 110 – 220 V AC, 50/60 Hz; Output: 48 V DC, 0.83 A
- Environmental
- Operating Temperature: +14 to +122°F (-10 to +50°C)
- Storage Temperature: -14 to +140°F (-10 to +60°C)
- Operating Humidity (RH): 20% to 95%, non-condensing
- Maximum Operating Altitude: 2000 meters
- Cooling System: Front-to-rear airflow, temperature-controlled fans
- Chassis
- Dimensions (H x W x D): 1.34 in × 8.19 in × 4.41 in (34 × 208 × 112 mm)
- Weight: 1.5 lbs (0.7 kg)
- Certification
- Device: CE, FCC, CB, RoHS
- Supply: CE, FCC, cULus, CB, RCM, RoHS
- Compliance
- NDAA-899: Yes
- TAA: Yes
