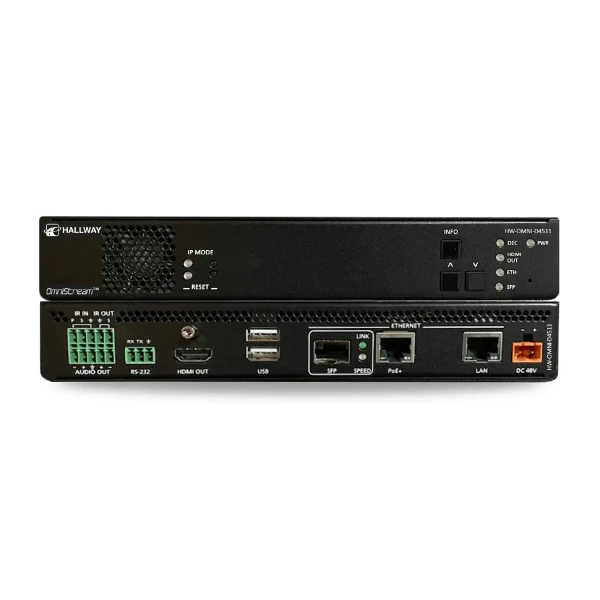

This Atlona HW-OMNI-D4511 OmniStream AVoIP Decoder with USB-C plus USB Hub is a networked AV decoder for HDMI/HDCP 2.2 output supporting resolutions up to 4K/60 4:4:4 and HDR, plus audio embedding and de-embedding, RS-232 or IR control pass-through, and an integrated USB-C input with USB hub.
Powered by the advanced VCx codec, it delivers 4K/60 4:4:4 with artifact-free presentation and ultra-low latency of less than one frame.
Multiview processing enables up to four streams from HW-OMNI-E4521 encoders to display simultaneously on a single screen.
USB-C supports device charging up to 60W with an optional power supply, along with integrated USB 2.0 transport and local device ports.
The HW-OMNI-D4511 is housed in a half-width rack enclosure and supports PoE powering.
READ MORE
Atlona HW-OMNI-D4511 OmniStream AVoIP Decoder with USB-C plus USB Hub Feature:
- 4K/60 4:4:4 encode with VCx codec - artifact-free image quality and ultra-low latency (<1 frame).
- HDR support: HDR10, HLG, and Dolby Vision at 60 Hz.
- USB-C input with up to 60W device charging (optional power supply); integrated USB 2.0 hub.
- Multiview window processing - ingests up to 4 streams simultaneously on one screen
- HDCP 2.2 compliant; AES-128 encrypted stream delivery.
- CEC, RS-232, and IR control pass-through over the network.
- PoE (IEEE 802.3af) powered - no local AC required; optional 48V external supply.
- IEEE 802.1x network authentication; HTTPS, SSH, Telnet, WebSocket/TLS management.
- AES67-compatible audio; simultaneous OmniStream and AES67 streaming.
- Thumbnail preview of encoded streams (320×180px, 2-second update) for source monitoring.
- Half-width rack enclosure with front-to-rear temperature-controlled airflow.
- NDAA Section 889 and TAA compliant.
Why not buy this Atlona HW-OMNI-D4511 OmniStream AVoIP Decoder with USB-C plus USB Hub from HDTV Supply today?
Atlona HW-OMNI-D4511 OmniStream AVoIP Decoder with USB-C plus USB Hub Specifications:
- Video
- Signal: HDMI
- Copy Protection: HDCP 2.2
- UHD/HD/SD Resolutions: 4K/60/50/30/25/24 Hz; 1080p; 1080i; 720p; 576p/i; 480p/i
- VESA Resolutions: 2560×1600, 1920×1200, 1920×1080 (and others) @ 60 Hz
- Color Space: YUV, RGB
- Encoding Density: Dual encoding engine with independent scalers
- Compression Format: VCx
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDR Formats: HDR10, HLG, Dolby® Vision™
- Max Bit Rate: Configurable up to 900 Mbps (shared between both engines)
- Latency: <0.5 frame (e.g. < 8ms @ 1080p/60); <1.5 frames in Fast Switching mode
- Audio
- Pass-Through Formats: LPCM 2.0/5.1/7.1; Dolby® Digital, TrueHD, Atmos®; DTS®, DTS-HD
- Down-Mixing: Multichannel LPCM to 2-channel LPCM
- Sample Rate: 32 kHz – 192 kHz
- Bit Depth: Up to 24-bit
- Analog Audio Output: Balanced; +4 dBu nominal, +20 dB headroom; 150 Ω output impedance
- AES67: Supported; simultaneous OmniStream and AES67 streaming; up to LPCM 7.1
- USB
- USB-C: Input; device charging up to 60W (optional power supply required)
- USB Hub: Integrated USB 2.0 transport; 2 local device ports; switching between 2 host ports
- Network & Protocols
- Video Streaming: RTP
- Audio Streaming: RTP (up to 7.1 ch); AES67
- Addressing: DHCP, Static
- Encryption: AES-128
- QoS: RFC 2475
- Discovery: Multicast DNS, LLDP, SAP
- Management: HTTPS, SSH, Telnet, WebSocket with TLS
- Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS
- IP Multicast: IGMPv2 and IGMPv3
- Control
- RS-232: Device control and bidirectional pass-through; 2400–9600 baud
- IR: Bidirectional pass-through from/to network
- CEC: Supported; triggered from control systems and OmniStream encoders
- Connections
- HDMI Output: 1 × Type A, 19-pin, female, locking
- USB-C: 1 × USB-C
- USB Hub: Integrated USB 2.0
- Ethernet: 1 × RJ45, 10/100/1000 Mbps
- RS-232 / IR: 1 × Captive screw, 6-pin (RS-232 on port 1, IR on port 2)
- Power: 1 × Captive screw, 2-pin
- Power
- PoE: IEEEE 802.3af
- Consumption: Up to 12 W (40.9 BTU/h)
- External Power Supply (optional): Input: 110–220V AC, 50/60 Hz; Output: 48V DC, 0.83A
- Mechanical
- Dimensions (H × W × D): 1.34" × 8.19" × 4.41" (34mm × 208mm × 112mm)
- Weight: 1.5 lbs (0.7 kg)
- Enclosure: Half-width rack; front-to-rear temperature-controlled airflow
- Environmental
- Operating Temperature: 14°F to 122°F (-10°C to +50°C)
- Storage Temperature: -14°F to 140°F (-10°C to +60°C)
- Humidity: 20% to 95% RH, non-condensing
- Max Operating Altitude: 2000 meters
- Regulatory
- Certifications: CE, FCC, CB, RoHS
- Power Supply Certs: CE, FCC, cULus, CB, RCM, RoHS
- NDAA Section 889: Compliant
- TAA: Compliant
