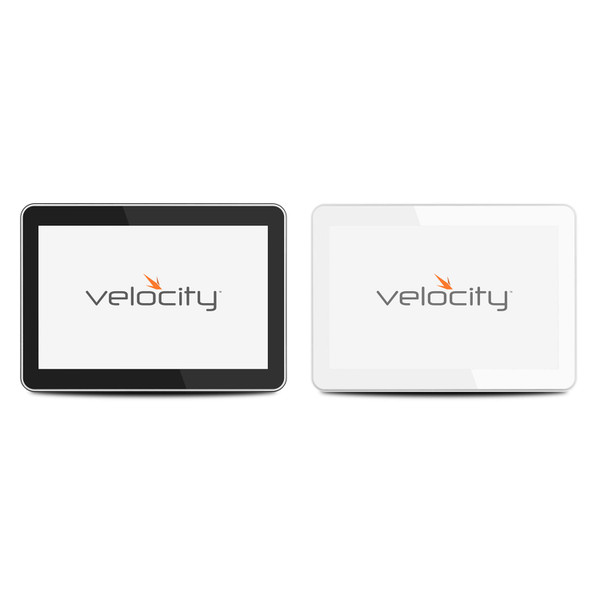

This Atlona AT-VTPG-1000VL-BL Velocity All-In-One 10" Touch Panel With Gateway - Black is a Velocity™ 10” touch panel with integrated Velocity gateway. This all-in-one touch panel solution simplifies configuration and deployment for installations that only require control of a single room or AV system. Setup of the VTPG-1000VL is easy.
The intuitive, browser-based configuration guides you through adding AV equipment to the room, creating user interfaces, and specifying control macros. The large 10” touch panel features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface. Bright LED lighting surrounding the edge of the panel is ideal for providing a visual representation of room status or for adding emphasis to AV control functions.
The VTPG-1000VL features Power over Ethernet (PoE+), enabling a single network connection for data and power. This connection also allows the Velocity gateway to directly control devices over the network, reducing components and simplifying cabling. For devices that require more traditional forms of control, Atlona’s IP command converters provide compatibility with RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), and relays / sensors (AT-VCC-RELAY-KIT).
Supports Velocity Premier Services – Remote Gateway (AT-VPS-RG) for remote configuration, management, and control over the internet. Remote access to the gateway creates an opportunity to provide enhanced support and customer service by allowing system and device configuration, troubleshooting, credential and firmware updates, and more from any device with a browser and internet connection.
Atlona AT-VTPG-1000VL-BL Velocity All-In-One 10" Touch Panel With Gateway - Black Feature:
- Complete AV control system
- 10” touch panel with contemporary styling and bezel lighting
- Integrated Velocity gateway supports one room of control for up to 24 devices and two scheduling panels
- Intuitive browser-based setup for fast system configuration
- Dual purpose glass and wall mount included
- Velocity Premier Services — Remote Gateway (AT-VPS-RG), for remote configuration, management, and control
- Complete AV control system with touch panel and Velocity System gateway combined in a single device
- 10” touch panel with contemporary, refined styling and aesthetics
- Integrated Velocity gateway supports one room of control for up to 24 devices and two scheduling panels
- Fast streamlined setup – intuitive, browser based tool guides users through system configuration and options for pre-configured or custom touch panel user interfaces.
- IP-based device control over the Ethernet network reduces components and simplifies cabling
- Atlona’s VCC line of IP command converters provide compatibility for devices that require control via RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), or relays / sensors (AT-VCC-RELAY-KIT)
- Supports QR code BYOD control for touch-free control from the touch panel GUI
- Automatic network discovery and configuration with integrated Velocity System Gateway AV control GUIs are automatically loaded by a single configuration tool
- Surround bezel LED lighting – lights on the entire outer frame of the touch panel can be configured for room scheduling or AV control and can be easily seen in either landscape or portrait orientation
- Capacitive touch screen with 1280×800 resolution
- Dual purpose glass and wall mount compatible with one-gang US, UK, and EU openings is included
- Standard VESA 75 pattern for compatibility with third-party mounts
Atlona AT-VTPG-1000VL-BL Velocity All-In-One 10" Touch Panel With Gateway - Black Specifications:
| Display | |
|---|---|
| Panel | 5 point touch projected capacitive |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 wide |
| Contrast Ratio | 800:1 |
| Viewing Angle | H 160° / V 160° |
| Viewing Area | 10.1” LCD |
| Brightness | 500 cd/m² |
| Mount | |
| Standard | VESA 75 |
| Type | Wall and glass |
| Audio | |
| Speaker | 2 x 2 W |
| IP | |
| Port | 1 x RJ45 |
| Standards and Protocols | DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x |
| Ethernet Speed | 10/100/1000 Mbps |
| Addressing | DHCP, static |
| Temperature | |
| Operating | 14° to 122°F / -10° to 50°C |
| Storage | -5° to 149°F / -15° to 65°C |
| Humidity | 10% to 90%, non-condensing |
| Power | |
| PoE+ | 802.3at compliant |
| Dimensions | |
| H x W x D (Inches) | 10.04 x 7.13 x 0.98 |
| H x W x D (Millimeters) | 255 x 181 x 25 |
| Weight | |
| Device (Pounds) | 1.43 |
| Device (Kilograms) | 0.65 |
| Certification | |
| Device | CE, FCC, RCM, China RoHS |
Atlona AT-VTPG-1000VL-BL Velocity All-In-One 10" Touch Panel With Gateway - Black Manuals:
Atlona AT-VTPG-1000VL-BL User Manual
Atlona AT-VTPG-1000VL-BL Datasheet
