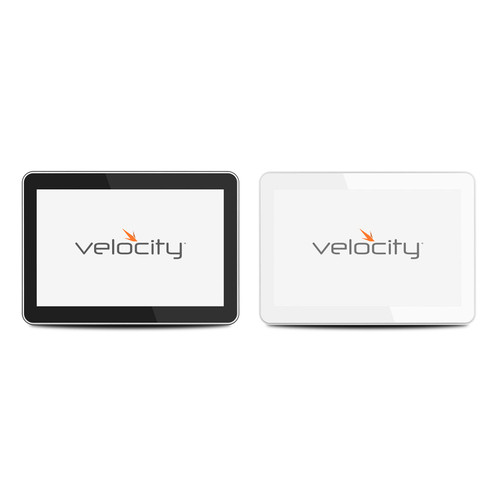

This Atlona AT-VTP-1000VL-WH Velocity 10" Touch Panel - White is a Velocity 10” touch panel with integrated surround LED lighting. It features contemporary, refined styling with 1280×800 native resolution, and a capacitive glass surface that supports multi-touch.
The large 10” touch panel provides additional space for more complex user control of video walls, high density matrix switchers, audio DSP’s, or other applications that have greater control function requirements. Bright LED lighting surrounding the edge of the panel is ideal for providing a visual representation of room status in scheduling applications or for adding emphasis to AV control functions. The panel ships with a dual-purpose wall or glass mount kit, and its standard VESA 75 pattern provides compatibly with a wide variety of other options.
The optional AT-VTP-VTM tabletop mounting kit is available for placement on a meeting table or lectern. The VTP-1000VL features Power over Ethernet (PoE+), enabling a single network connection for data and power. Setting up the touch panel is easy, with room scheduling and AV control GUIs automatically uploaded from the Velocity hardware or software server gateway during system configuration.
Atlona AT-VTP-1000VL-WH Velocity 10" Touch Panel - White Feature:
- VelocityTM 10″ touch panel
- Surround bezel LED Lighting for room scheduling and AV control
- Fast, streamlined setup with automatic network discovery and configuration by the Velocity hardware or software server gateway
- Dual purpose glass and wall mount included
- PoE+ – remote power and network connection with a single cable
- Room scheduling and AV control – single, flexible touch panel platform that can be used for a variety of applications
- Surround bezel LED lighting – lights on the entire outer frame of the touch panel can be configured for room scheduling or AV control and can be easily seen in either landscape or portrait orientation
- Capacitive touch screen with 1280×800 resolution
- Standard VESA 75 pattern for compatibility with third-party mounts
- Optional AT-VTP-VTM tabletop mounting kit for freestanding placement on a meeting table or lectern
- Contemporary, refined styling and aesthetics
- Supports multi-touch and gesture interactions
- Configurable audio feedback available for button presses
- Gigabit Ethernet port PoE+ – remote power and network connection with a single cable
- Available in black or white
- Dual purpose glass and wall mount compatible with one-gang US, UK, and EU openings is included
Atlona AT-VTP-1000VL-WH Velocity 10" Touch Panel - White Specifications:
| Display | |
|---|---|
| Panel | 5 point touch projected capacitive |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 wide |
| Contrast Ratio | 800:1 |
| Viewing Angle | H 160° / V 160° |
| Viewing Area | 10.1” LCD |
| Brightness | 500 cd/m² |
| Mount | |
| Standard | VESA 75 |
| Type | Wall and glass |
| Audio | |
| Speaker | 2 x 2 W |
| Ethernet | |
| LAN | 1 x RJ45, 10/100/1000Mbps |
| Temperature | |
| Operating (F / C) | 14 to 122 / -10 to 50 |
| Storage (F / C) | -5 to 149 / -15 to 65 |
| Humidity | |
| Humidity | 10% to 90%, non-condensing |
| Power | |
| PoE+ | 802.3at compliant |
| Dimensions | |
| H x W x D (Inches) | 10.04 x 7.13 x 0.98 |
| H x W x D (Millimeters) | 255 x 181 x 25 |
| Weight | |
| Device (Pounds) | 1.43 |
| Device (Kilograms) | 0.65 |
| Certification | |
| Device | CE, FCC, RCM, China RoHS |
Atlona AT-VTP-1000VL-WH Velocity 10" Touch Panel - White Manuals:
Atlona AT-VTP-1000VL-WH User Manual
Atlona AT-VTP-1000VL-WH Datasheet
