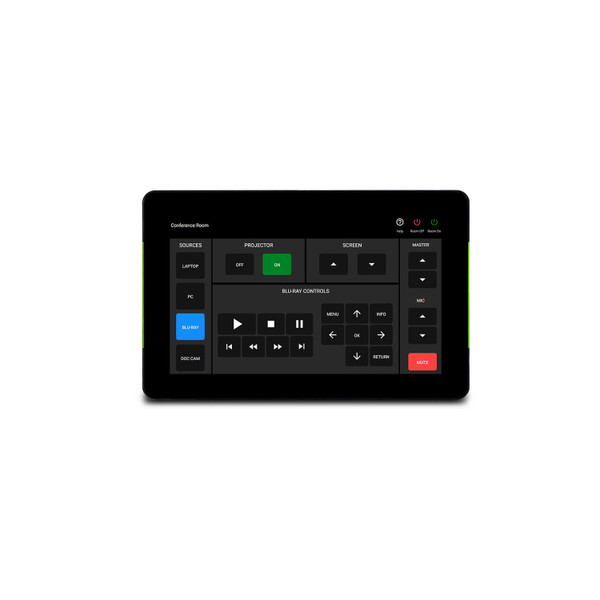

Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel

Atlona

Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel
$1,400.00
Part Number:
AT-VTP-700VL-BL
UPC:
846352007379
Condition:
New
Availability:
In Stock
1:
7 Inch Touch Panel
2:
Side LED Lighting
3:
Fast & Streamlined Setup
4:
Dual Purpose Glass
5:
PoE+ & Remote Power
6:
Free USA Shipping
7:
3-Year Atlona Warranty

This Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel is a Velocity™ 7” touch panel with side mounted LED lighting. It features contemporary, refined styling with 1024×600 native resolution and a capacitive glass surface. The VTP-700VL is an ideal user interface for AV control or room scheduling in corporate and education environments. Bright, side-mounted LED’s provide a visual representation of room status or add emphasis to control functions.

The panel ships with a dual-purpose one-gang wall and glass mount kit, and its standard VESA 75 pattern provides compatibly with a wide variety of other options. The optional AT-VTP-VTM tabletop mounting kit is available for placement on a meeting table or lectern. The VTP-700VL features Power over Ethernet (PoE+), enabling a single network connection for data and power. Setting up the touch panel is easy, with room scheduling and AV control GUIs automatically uploaded from the Velocity hardware or software server gateway during system configuration.

Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel Feature:

  • Velocity 7” touch panel
  • Room scheduling and AV control – single, flexible touch panel platform that can be used for a variety of applications
  • Side LED lighting – lights on sides of the touch panel can be configured for room scheduling or AV control
  • Capacitive touch screen with 1024×600 resolution
  • Upgraded processing and memory for better response as well as faster page loading
  • Fast, streamlined setup – room scheduling and AV control GUIs are automatically loaded by the Velocity hardware or software server gateway
  • Dual purpose glass and wall mount compatible with one-gang US, UK, and EU openings is included
  • VESA 75 pattern for compatibility with third-party mounts
  • Optional AT-VTP-VTM tabletop mounting kit for freestanding placement on a meeting table or lectern
  • Contemporary, refined styling and aesthetics
  • Configurable audio feedback available for button presses
  • Gigabit Ethernet port PoE+ – remote power and network connection with a single cable
  • Available in black

Why not buy this Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel from HDTV Supply today?

Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel Specifications:

  • Display
    • Panel: TFT LCD, 10 point touch projected capacitive
    • Resolution: 1024 x 600
    • Aspect Ratio: 17:10 wide
    • Contrast Ratio: 600:1
    • Viewing Angle: H 140° / V 130°
    • Viewing Area: 7” LCD
    • Brightness: 240 cd/m2
  • Mount
    • Standard: VESA 75
    • Type: Wall, table, and glass
  • Audio
    • Speaker: 2 x 2 W
  • IP
    • Port: 1 x RJ45
    • Standards and Protocols: DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x
    • Ethernet Speed: 10/100/1000 Mbps
    • Addressing: DHCP, static
  • Temperature
    • Operating: 32 to 104 °F / 0 to 40 °C
    • Storage: 14 to 131 °F / -10 to 55 °C
    • Humidity (RH): 10% to 90%, non-condensing
  • Power
    • PoE+: IEEE 802.3at (PoE+)

Why not buy this Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel from HDTV Supply today?

Atlona AT-VTP-700VL-BL User Manual

Atlona AT-VTP-700VL-BL-T1 Datasheet

Why not buy this Atlona AT-VTP-700VL-BL Velocity 7 Inch Touch Panel from HDTV Supply today?

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4Ă—2 — 4 sources to 2 displays
  • 4Ă—4 — 4 sources to 4 displays
  • 8Ă—8 — 8 sources to 8 displays
  • 8Ă—9 — 8 sources to 9 displays
  • 16Ă—16 — 16 sources to 16 displays
  • 16Ă—32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.

Need Help Choosing?

HDTV Supply has been helping AV integrators, sports bars, hotels, and homeowners select the right matrix switching system for 25 years. Call us at 833-WOLFPACK (833-965-3722) or email kent@hdtvsupply.com and we'll recommend the right unit for your source count, display count, resolution requirements, and control system.
