This Atlona AT-VGW-HW-10 Hardware Gateway For 10 Rooms AV Control & Management Plus Room Scheduling rooms of AV control, respectively. Velocity offers comprehensive system control for Atlona as well as third-party AV devices. User AV system control is available from Velocity touch panels, as well as user mobile devices and web browsers without the need to purchase additional licensing. Velocity features a highly intuitive, GUI-based configuration platform, designed for quick, efficient deployment of AV control systems for multiple rooms.
Supports Velocity Premier Services – Remote Gateway (AT-VPS-RG) for remote configuration, management, and control over the internet. Remote access to the gateway creates an opportunity to provide enhanced support and customer service by allowing system and device configuration, troubleshooting, credential and firmware updates, and more from any device with a browser and internet connection.
Device Management: All VGW-HW server gateways include Velocity Device Manager, a powerful system integration resource for configuring and managing Atlona devices over a network. It helps streamline AV configurations by letting users discover, set up, and commission Atlona IP-controllable products. After the products are deployed, Velocity Device Manager provides continual system monitoring and the ability to manage firmware and credential updates.
Atlona AT-VGW-HW-10 Hardware Gateway For 10 Rooms AV Control & Management Plus Room Scheduling Feature:
- Hardware server gateways for AV system control, room scheduling, and device management
- Access from a web browser for setup and management
- Simplify system or device configuration, deployment, and management with the interactions, flow, and visual elements of a web or mobile app GUI
- Velocity Device Manager for configuring Atlona devices over the network
- Velocity Premier Services — Remote Gateway (AT-VPS-RG), for remote configuration, management, and control
- Supports industry-standard, network security features and protocols
- Create role-based accounts for integrator, client, and AV/IT staff members, each with clearly defined access privileges
- Dual Gigabit Ethernet ports for isolating a dedicated AV LAN from the facility or corporate network
- Supports industry-standard, secure data communications through HTTP/2, HTTPS, SSH, SFTP, and WebSockets with TLS and AES-128 encryption

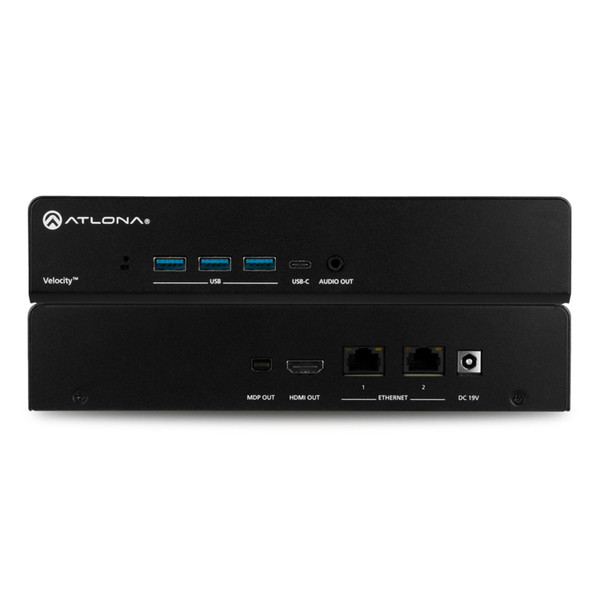

- USB 3.0 and USB-C® ports, plus HDMI® and Mini DisplayPort outputs for future expansion
- Rack-mountable 1U, half rack width enclosure
- Includes installation guide, rack mounting brackets, and external universal power supply
- Centralized, network-based configuration and management of Atlona IP-controllable products and systems
- Automatically discovers Atlona devices on the network and adds them to the system configuration
- Pre-configure Atlona devices prior to on-site installation and commissioning
- Organize Atlona device installations by room, floor, building, and site or campus
- Duplicate configurations to identical Atlona products on the network, and restore configurations when devices are replaced
- Continuous system monitoring – quickly assess system and device status
- Manage firmware updates including the ability the push to multiple devices at once, and schedule updates at a convenient date and time
- Manage credential updates including the ability to push a password to multiple devices at once
Atlona AT-VGW-HW-10 Hardware Gateway For 10 Rooms AV Control & Management Plus Room Scheduling Specifications:
| Control Software | |
|---|---|
| Function | Built-in web portal for system configuration and management |
| IP | |
| NIC | Two Network Interface Controllers (NIC) – supports segregated AV and facility LANs |
| Ports | 2 x RJ-45 ports, one to each NIC |
| Standards and Protocols | DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x |
| Ethernet Speed | 10/100/1000 Mbps |
| Addressing | DHCP, static |
| Temperature | |
| Operating | 0°C to 50°C | 32°F to 122°F |
| Storage | -20°C to 60°C | -4°F to 140°F |
| Humidity (RH) | 20 to 90%, non-condensing |
| Power | |
| Consumption | 40W (min) to 55W (max) |
| Supply | 19V / 3.42A |
| Dimensions (H x W x D) | |
| Unit (Inches) | 1.73 x 8.64 x 4.48 |
| Unit (Millimeters) | 44 x 219.5 x 114 |
| Power Supply (Inches) | 1.25 x 1.88 x 4.25 |
| Power Supply (Millimeters) | 31.75 x 47.63 x 107.95 |
| Weight | |
| Device (Pounds) | 1.9 |
| Device (Kilograms) | 0.86 |
| Certification | |
| Unit | CE, FCC |
| Power Supply | KC, UL, ETL, RCM, CE, FCC, TUV Safety, CCC, EAC, BSMI, PSE |
