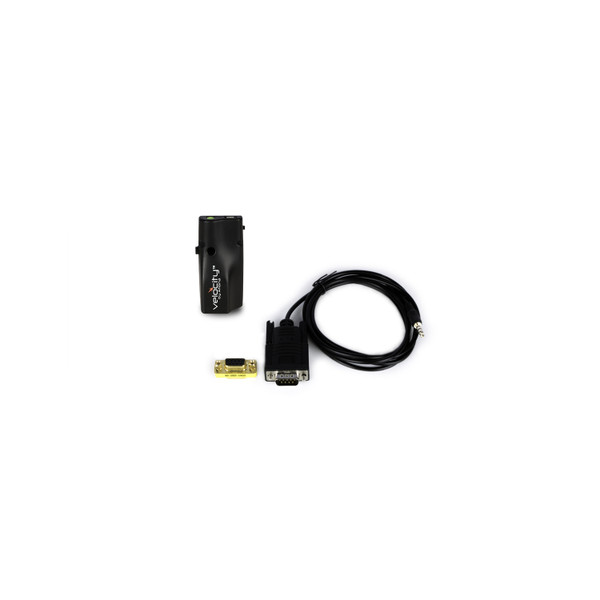

This Atlona AT-VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System is an accessory for the Atlona Velocity Control System that provides conversion between IP and RS-232 control commands. This Velocity Control Converter is very compact and can be placed anywhere a device requires control and is not IP-capable. The VCC-RS232-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs onto any surface via a convenient mounting dock. A simple “click” locks it into place for a secure, reliable installation. An RS-232 gender changer is included.
Atlona AT-VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System Feature:
- Provides conversion between IP and RS-232 control commands for the Velocity Control System
- Compact form factor – inconspicuous and easily concealable
- Easy to set up and configure from the Velocity Control Gateway
- Remotely powered via PoE (Power over Ethernet)
- Also can be powered through USB from a nearby USB power source
- Primary unit installs onto any surface via a convenient mounting dock – simple “click” locks device into place
- 5 foot (1.5 meter) RS-232 adapter cable
- Includes gender changer for male DB-9 connector
Why not buy this Atlona AT-VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System from HDTV Supply today?
Atlona AT-VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System Specifications:
- Ports
- Network Connection: RJ-45, 100/10 Mbps Ethernet Protocol
- RS-232: DB9, male, with gender changer
- 5 feet cable with 3.5 mm mini-stereo connector
- Full support for Tx, Rx, CTS, RTS, DTR, and DTS signals
- Bidirectional communication with hardware handshaking
- Power
- USB: Micro-B
- PoE: 802.3af-compliant
- Dimensions
- H x W x D (AT-VCC-RS232): 0.60 x 1.28 x 2.20 inches / 15.24 x 32.51 x 55.88 mm
- H x W x D (AT-VCC): 0.82 x 1.22 x 2.58 inches / 20.82 x 30.98 x 65.53 mm
Why not buy this Atlona AT-VCC-RS232-KIT IP To RS-232 Command Converter For Velocity Control System from HDTV Supply today?
