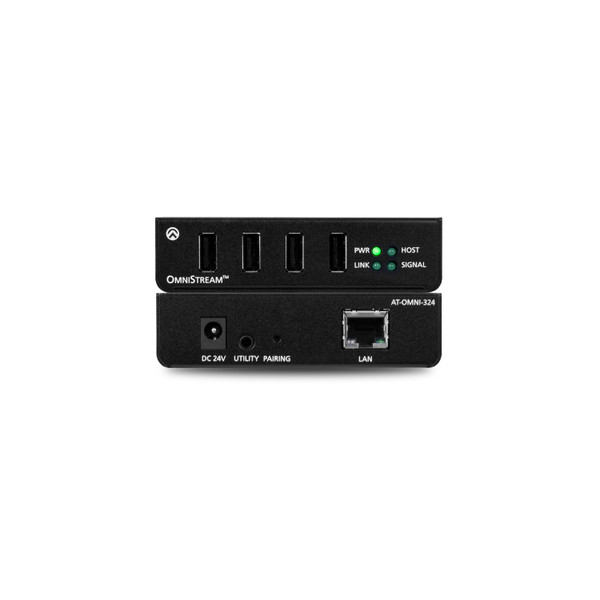

This Atlona AT-OMNI-324 IP To USB Adapter works in tandem with the AT-OMNI-311 for extending USB from peripheral devices to a PC over Gigabit Ethernet. The OMNI-324 features a four-port USB hub for peripherals, while the OMNI-311 interfaces with a PC or other host device. The OmniStream USB over IP system is compatible with USB 2.0 data rates of up to 480 Mbps.
It can be used with high bandwidth devices including cameras, soundbars, speakerphones, microphones, and DSPs, plus standard USB HID class devices such as a keyboard, mouse, or touch display. Up to seven OMNI-324 units can be simultaneously paired to an OMNI-311. USB routing over the network can be managed using Velocity Device Manager. Additionally, the OMNI-324 can be used with the OMNI-311 in a point-to-point installation, for extending USB up to 330 feet (100 meters)
Atlona AT-OMNI-324 IP To USB Adapter Feature:
- Extend USB over Gigabit Ethernet using CAT5e/6 cable
- Four-port USB hub
- Supports high bandwidth devices such as webcams and speakers, as well as standard HID class peripherals
- Compatible with USB 2.0 data rates up to 480 Mbps
- Ideal for meeting room applications to extend USB from touch displays, cameras, soundbars, speakerphones, DSPs, and more
- Design flexible and scalable AV systems in combination with OmniStream AV encoders and decoders
- Up to seven OMNI-324 units can be paired with an OMNI-311 over a network
- USB signal routing configured and managed by Velocity Device Manager
- Also ideal for point-to-point USB extension with an OMNI-311, up to 330 feet (100 meters)
- Ready for integration with Atlona Velocity™ Control System to manage USB signal routing
- Streamline network switch integration by using Atlona Certified
- Switch configurations for popular models from Cisco, Pakedge, and others
- Front panel LED indicators for power, network and USB host connectivity, and USB signal presence over IP
- Supports industry-standard, network security features and protocols: HTTPS, Telnet, SSH, WebSockets with TLS, and AES-128 encryption
- Low-profile, 1 inch (25 mm) high enclosure
- Includes installation guide, surface mounting brackets, and external universal power supply
Why not buy this Atlona AT-OMNI-324 IP To USB Adapter from HDTV Supply today?
Atlona AT-OMNI-324 IP To USB Adapter Specifications:
- USB
- Signal: 2.0
- Maximum Data Rate: 480 Mbps
- Maximum Current Draw: 1 A per Type-A port, with a maximum of 2.5 A available across all four ports
- Distance (per hop of Ethernet cable): 330 feet / 100 meters
- Connectors, Controls, and Indicators
- USB: 4 – Type A, 4-pin female
- LAN: 1 – RJ45, shielded
- UTILITY: 1 – 3.5 mm mini-stereo
- DC 24V: 1 – 2.1 x 5.5 mm DC power connector
- PAIRING: 1 – Push button, tact-type, recessed
- PWR indicator: 1 – LED, green
- LINK indicator: 1 – LED, green
- HOST indicator: 1 – LED, green
- SIGNAL indicator: 1 – LED, green
- Temperature
- Operating: 32 to 122 °F / 0 to 50 °C
- Storage: -20 to 70 °C / -4 to 158 °F
- Humidity
- Operating (RH): 20% to 80% (non-condensing)
- Storage (RH): 10% to 90% (non-condensing)
- Power
- Supply: 24 V DC, 0.75 A
- Dimensions
- H x W x D: 1.04 x 3.92 x 3.01 inches / 26.40 x 99.50 x 76.45 millimeters
- Weight
- Device: 0.50 pounds / 0.23 kilograms
- Certifications
- Device: CE, FCC, CB, RoHS
Why not buy this Atlona AT-OMNI-324 IP To USB Adapter from HDTV Supply today?
Atlona AT-OMNI-324 User Manual
