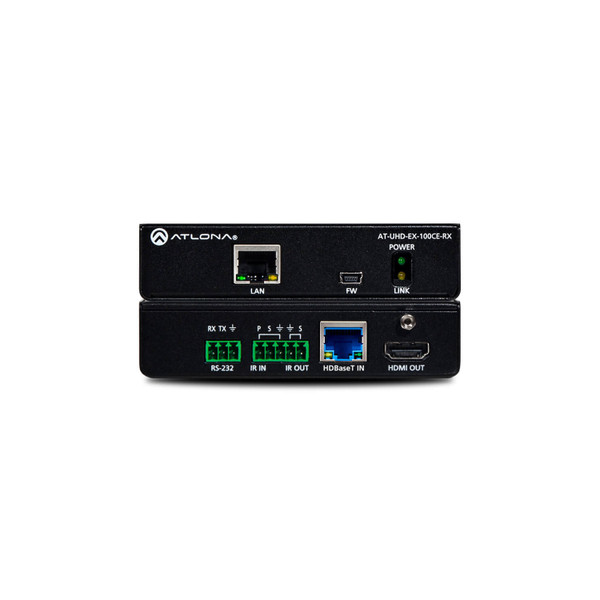

Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet

Atlona

Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet
$530.00
Part Number:
AT-UHD-EX-100CE-RX
UPC:
846352004439
Condition:
New
Availability:
In Stock
1:
4K/UHD Capability @ 60 Hz
2:
HDCP 2.2 Compliant
3:
Supports 4K HDR10 @ 24 Hz
4:
Multi-Channel Audio Compliant
5:
Rear Panel I/O Connectors
6:
Free USA Shipping
7:
3-Year Atlona Warranty

This Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet is a 4K/UHD HDMI over 100M HDBaseT receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet, RS-232, and IR control pass-through, plus Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The AT-UHD-EX-100CE-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by the Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through Ethernet and RS-232 commands.

Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet Feature:

  • 4K/UHD capability
    • Compatible with Ultra High Definition sources and displays
    • Full support of 4K/UHD streaming services and playback devices
  • HDCP 2.2 compliant
    • Adheres to latest specification for High-bandwidth Digital Content Protection
    • Allows protected content stream to pass between devices
  • Supports 4K HDR10 @ 24 Hz
    • Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
  • Remote-powered receiver
    • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
    • Saves time and integration costs
  • AV, Ethernet, power, and control over HDBaseT*
    • Receives 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable
    • Eliminates multiple cable runs between source, control system, router, and display
    • * Ethernet pass-through is not available on the AT-UHD-EX-100CE-RX receiver when used with the UHD-PRO3 Series matrix switchers.
  • Extended distance HDMI extension
    • Receives HDMI signals up to 330 ft (100m) @ 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Flexible Bidirectional IR control capabilities
    • IR Input designed to work with 12V IR receivers for source control
    • Saves control systems costs
  • Rear panel I/O connectors
    • Placement of ports on rear panel simplifies wire management
    • Saves installation time and eliminates clutter
  • Multi-channel audio compliant
    • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, DTS:X™
    • Allows any multi-channel audio stream to be used within a professional audio system
  • Field updatable firmware
    • Front panel USB port provides an easy means for kit upgrades
    • Ensures long term system return on investment
  • Front panel Power and Link status LEDs
    • LED indicators provide power and HDBaseT link status information
    • Provides easy setup and troubleshooting
  • Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
    • Easy installation into confined spaces behind displays and above projectors
    • Keeps devices out-of-sight when placed in public spaces
  • Included accessories
    • User guide, IR emitter P/N AT-IR-CS-TX, mounting brackets

Why not buy this Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet from HDTV Supply today?

Atlona AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver With Ethernet Specifications:

  • Resolution
    • Video 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Colorspace YCbCr, RGB
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • Color Depth 8-bit, 10-bit, 12-bit
    • HDR 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color
    • (Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.)
  • Audio
    • Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate up to 24-bit
  • Distance
    • CAT5e/6 @ 4K – up to 70 meters / up to 230 feet
    • CAT6a/7 @ 4K – up to 100 meters / up to 328 feet
    • CAT5e/6 @ 1080p – up to 100 meters / up to 328 feet
    • HDMI IN/OUT @ 4K – up to 5 meters / up to 15 feet
    • HDMI IN/OUT @ 1080p – up to 10 meters / up to 30 feet
  • Signal
    • Bandwidth 10.2 Gbps
    • CEC Pass through
    • HDCP Supports up to 2.2
  • Connector
    • Firmware Mini-B USB
    • HDBaseT RJ45 (8P8C)
    • HDMI Type A
    • LAN RJ45 (8P8C), Ethernet pass through
    • IR 5-pin captive screw
    • RS-232 3-pin captive screw
    • Power 2-pin, 48V captive screw
  • Temperature
    • Operating 0°C to 50°C / 32°F to 122°F
    • Storage -20°C to 60°C / -4°F to 140°F
    • Humidity 20 to 90% non-condensing
  • Power
    • Consumption 12W
    • Supply
      • Input: AC100~240V 50/60Hz
      • Output: DC 48V/0.83A
  • Dimension
    • H x W x D 25 x 109 x 89 (mm) / 0.98 x 4.29 x 3.50 (inch)
    • w/ears 27 x 119 x 89 (mm) / 1.06 x 4.69 x 3.50 (inch)
  • Weight
    • Unit 0.39kg / 0.86lbs
  • Certification
    • Power Supply CE, FCC, RoHS, cULus, RCM, CCC
    • Product CE, FCC
