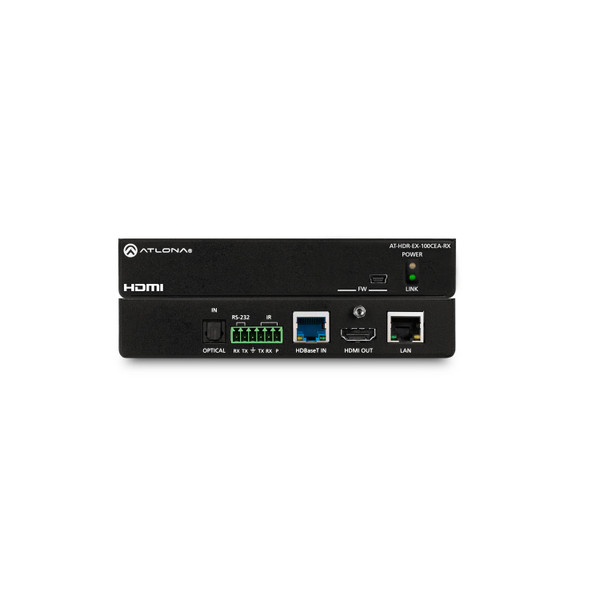

Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver With Control

Atlona

Atlona AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver With Control
$530.00
Part Number:
AT-HDR-EX-100CEA-RX
UPC:
846352005771
Condition:
New
Availability:
In Stock
1:
4K HDR HDBaseT Receiver
2:
Extend 4K/60 4:4:4 Upto 330 ft
3:
Multi-Channel Audio Pass-Through
4:
Front Panel USB Port
5:
Link Status LEDs
6:
Free USA Shipping
7:
3-Year Atlona Warranty

This Atlona 4K HDR Receiver w/IR, RS-232, Ethernet, and PoE is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-EX-100CEA-RX is ideal for use with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher for passing 4K HDR signals to a display.

A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector

Atlona 4K HDR Receiver w/IR, RS-232, Ethernet, and PoE Feature:

  • HDBaseT receiver for use with the AT-HDR-CAT-4ED distribution amplifier and AT-HDR-SW-52ED matrix switcher
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby Vision® HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT input receives HDMI®, Ethernet, control signals, and power up to 330 feet (100 meters) for both 4K HDR and 1080p with Category 6/6A
  • Extends bidirectional RS-232 and IR control signals over HDBaseT
  • Remotely powered by the AT-HDR-CAT distribution amplifier over HDBaseT
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Multi-channel audio pass-through
  • Front panel Power and Link status LEDs
  • Front panel USB port for firmware updates
  • Rear panel connections simplify wire management and save installation time
  • Compact enclosure can be mounted in furniture, behind a display, or above a projector
  • Included accessories – surface mounting hardware and installation guide

Why not buy this Atlona AT-HDR-EX-100CEA-RX 4K HDR Receiver w/IR, RS-232, Ethernet, and PoE from HDTV Supply today?

Atlona 4K HDR Receiver w/IR, RS-232, Ethernet, and PoE Specifications:

  • Video
    • Signal:
      • Input – HDBaseT
      • Output – HDMI
    • Copy Protection: HDCP 2.2
    • Pixel Clock: 600 MHz
    • UHD/HD/SD:
      • 4096×2160@60/50/30/25/24Hz
      • 3840×2160@60/50/30/25/24Hz
      • 1920x1080p@60/59.9/50/30/29.97/25/24/23.98Hz
      • 1920x1080i@30/29.97/25Hz
      • 720p@60/59.94/50Hz
      • 576p@50Hz
      • 576i@25Hz
      • 480p@60/59.96Hz
      • 480i@30Hz
    • VESA (All resolutions are 60Hz):
      • 2560×2048
      • 2560×1600
      • 2048×1536
      • 1920×1200
      • 1680×1050
      • 1600×1200
      • 1600×900
      • 1440×900
      • 1400×1050
      • 1366×768
      • 1360×768
      • 1280×1024
      • 1280×800
      • 1280×768
      • 1152×768
      • 1024×768
      • 800×600
      • 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
    • HDR: Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision™ @ 60 Hz(1)
  • Audio
    • HDMI / HDBaseT
    • Pass-Through Formats:
      • PCM 2.0
      • LPCM 5.1
      • LPCM 7.1
      • Dolby® Digital
      • Dolby Digital Plus™
      • Dolby TrueHD
      • Dolby Atmos®
      • DTS® Digital Surround™
      • DTS-HD Master Audio™
      • DTS:X®
    • Bit Depth: Up to 24 bits
    • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Control
    • RS-232: Pass through, up to 115200 baud
    • IR: Pass through, 30kHz to 60kHz
    • CEC: Pass through
  • Resolution / Distance
    • 4K/UHD Feet | 4K/UHD Meters | 1080p Feet | 1080p Meters
    • HDMI IN/OUT: 15 | 5 | 30 | 10
    • CAT5e: 295 | 90 | 330 | 100
    • CAT6/6a/7: 330 | 100 | 330 | 100
  • Buttons and Indicators
    • Function Indicators:
    • POWER – 1 x LED, green
    • LINK – 1 x LED, yellow
  • Connectors
    • HDMI OUT: 1 x Type A, 19-pin female
    • HDBaseT IN: 1 x RJ45
    • OPTICAL IN: 1 x TOSLINK™
    • RS-232 / IR: 1 x 6-pin captive screw
    • UTILITY: 1 x Mini-USB
    • LAN: 1 x RJ45
  • Temperature
    • Operating: +32 to +122°F (0 to +50°C)
    • Storage: -4 to +140°F (-20 to +60°C)
    • Operating (RH): 20% to 90%, non-condensing
  • Power
    • Consumption: 10.4 W
    • BTU/h: 35.5
    • PoE: Powered by compatible 48V transmitters
  • Dimensions (H x W x D)
    • Unit: 1.02 x 5.74 x 3.81 in (26 x 146 x 97 mm)
  • Weight
    • Unit: 0.873 lb (0.396 kg)
  • Certification
    • Device: CE, FCC
  • Compliance
    • NDAA-899: Yes
