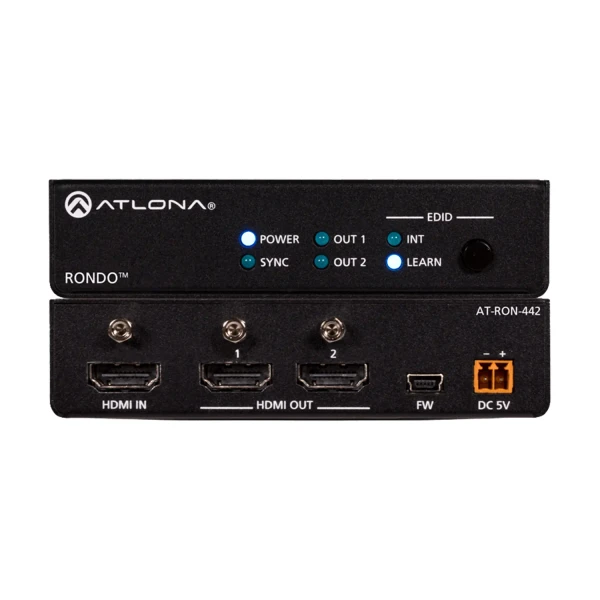

This Atlona AT-RON-442 2-Output HDMI Distribution Amplifier is a 1×2 HDMI distribution amplifier for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.
The Rondo 442 is ideal for applications requiring the latest as well as emerging 4K/UHD and HDR sources and displays.
This Rondo Series HDMI distribution amplifier includes EDID management features, front panel LED indicators for power and signal status, and the capability to cascade several units without compromising performance.
The Rondo 442 is designed to deliver dependable, pristine-quality image presentations in commercial and residential applications.
Atlona AT-RON-442 2-Output HDMI Distribution Amplifier Feature:
- 1×2 HDMI distribution amplifier
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- EDID management
- Supports cascading up to eight units
- User guide, rack mount brackets, and external universal power supply
Why not buy this Atlona AT-RON-442 2-Output HDMI Distribution Amplifier from HDTV Supply today?
Atlona AT-RON-442 2-Output HDMI Distribution Amplifier Specifications:
- Resolution
- Video
- 4096×2160@24/25/30/50/60Hz
- 3840×2160@24/25/30/50/60Hz
- 2048x1080p
- 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
- 1080i@50/59.94/60Hz
- 720p@50/59.94/60Hz
- 576p
- 576i
- 480p
- 480i
- VESA
- 2560×2048
- 2560×1600
- 2048×1536
- 1920×1200
- 1680×1050
- 1600×1200
- 1600×900
- 1440×900
- 1400×1050
- 1366×768
- 1360×768
- 1280×1024
- 1280×800
- 1280×768
- 1152×768
- 1024×768
- 800×600
- 640×480
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDR: HDR10 and Dolby® Vision™ @ 60Hz
- Video
- Audio
- HDMI
- PCM 2Ch
- LPCM 5.1
- LPCM 7.1
- Dolby Digital
- DTS 5.1
- Dolby Digital+
- Dolby TrueHD
- DTS-HD Master Audio
- Dolby Atmos
- DTS:X
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Rate: up to 24-bit
- HDMI
- Distance
- HDMI IN/OUT @ 4K: up to 5 meters / up to 15 feet
- HDMI IN/OUT @ 1080p: up to 10 meters / up to 30 feet
- Signal
- Bandwidth: 18 Gbps
- CEC: No
- HDCP: 2.2 Compliant
- Temperature
- Operating: 0°C to 50°C (32°F to 122°F)
- Storage: -20°C to 60°C (-4°F to 140°F)
- Humidity: 20 to 90% non-condensing
- Power
- Consumption: 6W
- Supply: Input: AC100-240V ~ 50/60Hz, Output: DC 5V
- Dimension
- H x W x D: 26 x 109 x 89 mm (1.02 x 4.29 x 3.5 inch)
- Weight
- Device: 0.2 kg (0.4 lbs)
- Certification
- Unit: CE, FCC
- Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
