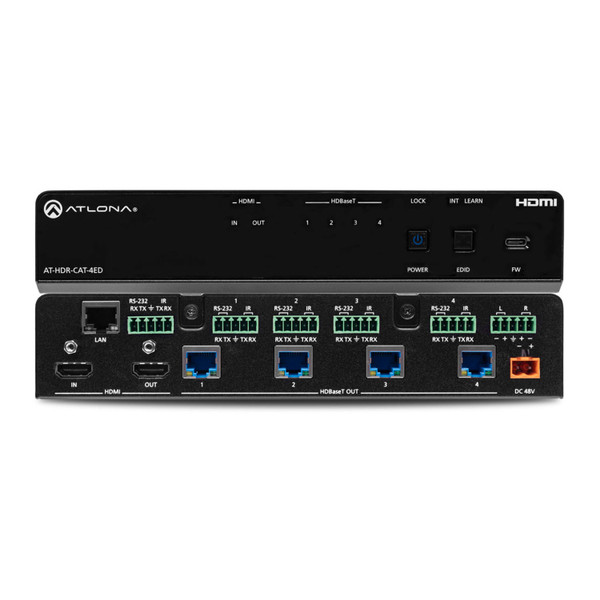

This Atlona AT-HDR-CAT-4ED 4-Output Extended Distance 4K HDR HDBaseT Distribution Amplifier is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four extended distance HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable.
The HDR-CAT-4ED features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, half-rack width enclosure with external universal power supply. The HDR-CAT-4ED is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-100CEA-RX receivers.
The HDR-CAT-4ED is part of a family of 4K HDR HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-8 eight output models.
Atlona AT-HDR-CAT-4ED 4-Output Extended Distance 4K HDR HDBaseT Distribution Amplifier Feature:
- One HDMI® input and four extended distance HDBaseT™ outputs
- Extend 4K/60 4:4:4 up to 330’ (100 m)
- Supports HDR10, HLG, and Dolby® Vision™
- Pass-through HDMI output
- CEC display control on each output
- Audio de-embedding with volume control
- Also available with 2 outputs, 4 outputs, or 8 outputs
- 4K HDR distribution amplifier with one HDMI input and four extended distance HDBaseT outputs
- Pass-through HDMI output to support local monitor
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT.
- HDBaseT outputs extend AV, Ethernet, control signals, and power up to 330 feet (100 meters) for both 4K HDR and 1080p with Category 6/6A
- Bidirectional RS-232 and IR control extension for each output
- Remotely powers compatible receivers over HDBaseT
- CEC display control sends display power on/off commands to the pass-through HDMI output and HDBaseT receiver HDMI outputs using the power button, IP, or RS-232
- Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
- HDBaseT link test verifies cable, termination, and link quality for more reliable installations
- Multi-channel audio pass-through
- Cascade up to 8 units to expand system without compromising performance
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Manages EDID communications with the source through a display’s EDID or internally stored EDID
- Intuitive GUI-based configuration using integrated web server
- Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems
Atlona AT-HDR-CAT-4ED 4-Output Extended Distance 4K HDR HDBaseT Distribution Amplifier Specifications:
| Video | |
|---|---|
| Signal | Input – HDMI Output – HDMI / HDBaseT |
| Copy Protection | HDCP 2.2 |
| Pixel Clock | 600 MHz |
| UHD/HD/SD | 4096×2160 (DCI) @ 24/25/30/50/60 Hz 3840×2160 (UHD) @ 24/25/30/50/60 Hz 1920×1080p @ 23.97/24/25/29.97/30/50/60 Hz 1920×1080i @ 50/60 Hz 1280×720p @ 30/50/60 Hz 720×576p @ 50 Hz 720×576i @ 25/50 Hz 720×480p @ 60 Hz 640×480p @ 60 Hz |
| VESA | 2560×1600 @ 60 Hz (RB) 2048×1536 @ 60 Hz 2048×1200 @ 60 Hz 2048×1080 @ 60 Hz 1920×1200 @ 60 Hz (RB) 1920×1080 @ 60 Hz (RB) 1680×1050 @ 60 Hz 1600×1200 @ 60 Hz 1600×900 @ 60 Hz 1440×900 @ 60 Hz 1400×1050 @ 60 Hz 1366×768 @ 60 Hz 1360×768 @ 60 Hz 1280×1024 @ 60 Hz 1280×800 @ 60 Hz 1280×768 @ 60 Hz 1280×720 @ 60 Hz 1024×768 @ 60 Hz 800×600 @ 60 Hz 640×480i @ 29.97/30 Hz |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | Up to 4K HDR10 @ 60 Hz, 4K HLG @ 60 Hz, 4K Dolby Vision @ 60 Hz |
| Audio | |
| HDMI / HDBaseT Pass-Through | PCM 2.0 LPCM 5.1 / 7.1 Dolby Digital Dolby Digital Plus Dolby TrueHD Dolby Atmos DTS Digital Surround DTS-HD Master Audio DTS:X |
| Bit Depth | Up to 24 bits |
| Analog Audio | Stereo 2-Channel Balanced Output: +4 dBu nominal, +19 dB headroom Frequency Response: 20 Hz – 20 kHz ±0.5 dB THD+N: < 0.006% (20 Hz–20 kHz) SNR: >105 dB @ 1 kHz, 0 dBFS, unweighted |
| Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Ethernet | |
| Port | 1 × RJ45 |
| Protocols | HTTP, Telnet |
| Speeds | 10/100 Mbps |
| Addressing | DHCP, Static (front panel, IP, RS-232, web server) |
| RS-232 | |
| Port | 5 × 5-pin captive screw |
| Use | Unit and external device control |
| Baud Rates | 2400–115200 |
| Data Flow | Bidirectional |
| IR | |
| Ports | 5 × 5-pin captive screw |
| Use | Pass-through control (source ↔ sink) |
| Frequency Range | 30–60 kHz |
| CEC | |
| Ports | 1 × HDMI OUT (Type A) 4 × RJ45 (HDBaseT OUT) |
| Triggering | Through IP, RS-232, web server |
| Resolution / Distance | |
| HDMI IN/OUT | 4K: 15 ft / 5 m 1080p: 30 ft / 10 m |
| CAT5e/6 | 4K: 230 ft / 70 m 1080p: 330 ft / 100 m |
| CAT6a/7 | 4K: 330 ft / 100 m 1080p: 330 ft / 100 m |
| Buttons & Indicators | |
| Buttons | POWER, EDID (2 × momentary tact-type) |
| Indicators | HDMI IN/OUT, HDBaseT 1–4, LOCK, INT, LEARN (9 × blue LEDs) |
| Connectors | |
| HDMI IN | 1 × Type A |
| HDMI OUT | 1 × Type A |
| HDBaseT OUT | 4 × RJ45 |
| LAN | 1 × RJ45 |
| AUDIO OUT | 1 × 5-pin captive screw |
| RS-232 / IR | 5 × 5-pin captive screw |
| FW | 1 × USB-C |
| DC 48V | 1 × 2-pin captive screw |
| Environmental | |
| Operating Temperature | 32–122°F (0–50°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Humidity | 20%–90%, non-condensing |
| Power | |
| Consumption (with 4 PoE) | 71.5 W |
| Idle (no PoE) | 11.5 W |
| BTU/h | 39.2 |
| Power Supply | 100–240 V AC, 50/60 Hz Output: 48 V / 2.08 A DC |
| Dimensions | |
| Unit | 1.73 × 8.64 × 10 in (44 × 219.5 × 254 mm) |
| Power Supply | 1.3 × 2.24 × 5.35 in (33 × 57 × 136 mm) |
| Weight | |
| Device | 3.75 lb (1.7 kg) |
| Certification | |
| Device | CE, RoHS, FCC |
| Power Supply | CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
| Compliance | |
| NDAA-899 | Yes |
