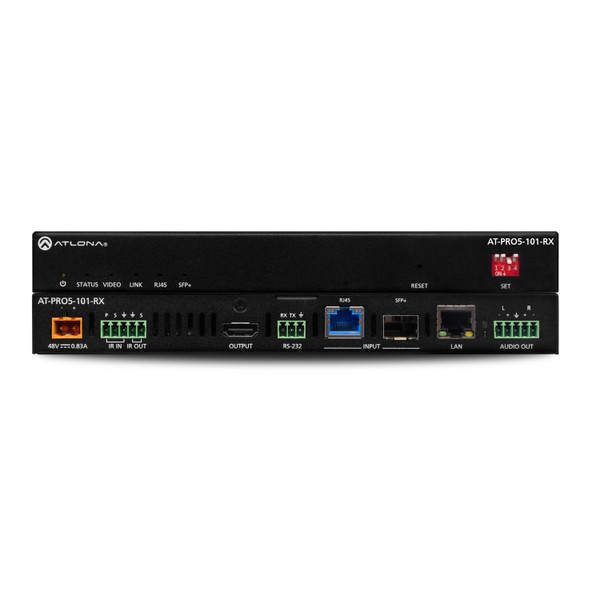

This Atlona AT-PRO5-101-RX 4K HDR SDVoE Receiver For PRO5 Matrix Switcher is an AV extension receiver, featuring SDVoE 10GbE connectivity for receiving ultra-high definition video and audio from the AT-PRO5-MX810 matrix switcher. Part of the PRO5 Series, the PRO5-101-RX is HDCP 2.3 compliant, and supports 4K/60 4:4:4 and HDR at HDMI data rates up to 18 Gbps. It features an RJ45 port, and an SFP+ cage for copper or fiber optic connectivity to receive video, embedded audio, Gigabit Ethernet, and RS-232 and IR control signals from the matrix switcher.

The RJ45 port allows extension up to 330 feet (100 meters) over CAT6a UTP cable, along with PoE for powering the PRO5-101-RX, while the SFP+ cage can be used with a compatible fiber optic module to extend from 38 meters up to 10 kilometers over fiber optic cable. The PRO5-101-RX SDVoE receiver, together with the PRO5-MX810 HDMI to SDVoE matrix switcher, is ideal for a wide range of commercial applications requiring multi-zone AV distribution with long-distance signal extension.

Atlona AT-PRO5-101-RX 4K HDR SDVoE Receiver For PRO5 Matrix Switcher Feature:

• SDVoE receiver for video, audio, Gigabit Ethernet, and bidirectional IR and RS-232 control signals
  • Receives AV, control, and Ethernet from the AT-PRO5-MX810 matrix switcher using SDVoE technology.
  • Ideal for commercial applications requiring multi-zone AV distribution with long-distance signal extension.
• High-performance, SDVoE-based point-to-point AV extension
  • Leverages 10GbE connectivity for ultra-high definition video and audio delivery between source and destination devices.
  • Provides full-bandwidth distribution without the cost of a 10GbE network.
• SDVoE extension input with copper or fiber optic connectivity
  • RJ45 port allows extension up to 330 feet (100 meters) over CAT6a UTP cable.
  • SFP+ cage supports compatible fiber optic transceiver modules to extend from 38 meters up to 10 kilometers over fiber optic cable.
  • Signals can be transported over copper or fiber, but not both simultaneously.
  • Fiber optic module for SFP+ cage is a separate purchase.
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus HDR support
  • Compatible with HDR10, HDR10+, Dolby® Vision™, and HLG (Hybrid Log-Gamma).
  • Ideal for 4K/UHD and HDR-capable sources and displays.
• HDCP 2.3 compliant
  • Adheres to the latest High-bandwidth Digital Content Protection specification.
  • Allows protected content stream to pass between authenticated devices.
• Remotely powered by AT-PRO5-MX810 matrix switcher, or locally powered
  • IEEE 802.3af PoE supplied by the PRO5-MX810 when using the RJ45 port.
  • Can also be locally powered with included Atlona AT-PS-48083-C power supply.
  • Local power is required when extending AV signals over fiber via SFP+.
• Audio de-embedding
  • De-embeds two-channel LPCM audio to a balanced analog output.
  • Provides direct interfacing into an external audio system.
• Multi-channel audio compliant
  • Passes through multi-channel audio formats from HDMI inputs of the PRO5-MX810 matrix switcher.
  • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®.
• EDID management
  • Manages EDID communication between source, switcher, and displays.
  • Allows integrators to force preferred video resolution and audio format.
  • Ensures desired audio formats and video resolutions are delivered to the AV system.
• HDCP 2.3 management
  • Automatically reports HDCP compliance status based on the sink device.
  • HDCP compliance can be disengaged via Velocity Device Manager, API, or web GUI.
  • Allows non-protected PC content to pass to non-compliant displays; protected content is blocked.
  • Displays green splash screen when protected content is blocked.
• Intuitive GUI-based configuration via integrated web server (PRO5-MX810)
  • Menu-based configuration for network settings, EDID, HDCP, and audio management.
  • Allows fast configuration and troubleshooting from mobile device or PC.
• TCP/IP control
  • Compatible with Atlona Velocity™ control system and third-party systems.
  • Can be managed from the PRO5-MX810 or locally when Ethernet pass-through is disengaged.
  • Reduces integration time and costs.
• Velocity Device Manager compatibility
  • Centralized network-based configuration and management of Atlona IP-controllable products.
  • Manage configuration and firmware updates across facilities or enterprises.
  • Available as part of Velocity control systems or as a free virtual machine software download.
• Field-updatable firmware
  • Firmware updates available via web GUI or Velocity Device Manager from the PRO5-MX810.
• Front panel power and signal status LEDs
  • LED indicators show power, device and video signal status, and SDVoE link status.
  • Provides convenient local setup and troubleshooting when network access is unavailable.
• Low-profile, 1.02 inch (26 mm) high enclosure
  • Easy installation behind displays and above projectors.
• Included accessories
  • Surface mounting hardware and external universal power supply.
