Atlona AT-HDR-SW-52ED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs

Atlona

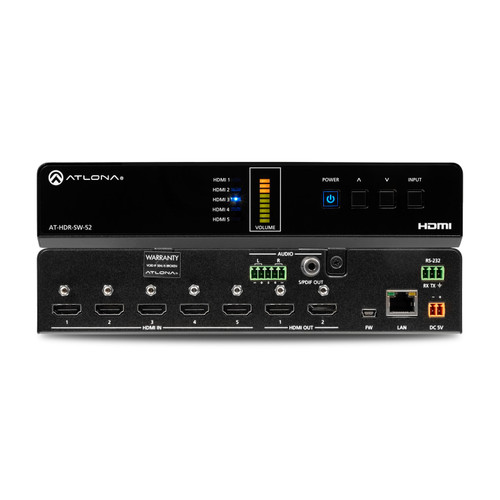

Atlona AT-HDR-SW-52ED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs
$1,447.00
Part Number:
AT-HDR-SW-52ED
UPC:
846352007355
Condition:
New
Availability:
In Stock
1:
Five HDMI Inputs
2:
4K/UHD Capability @ 60 Hz
3:
4:4:4 Chroma Sampling
4:
Plus Support For HDR Formats
5:
HDMI & HDBaseT Outputs
6:
Free USA Shipping
7:
3-Year Atlona Warranty

This Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately). The HDR-SW-52ED is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps.

It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features, automatic input switching, and automatic display control. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the outputs when connected to an HD display. The HDR-SW-52ED can de-embed audio from an HDMI input, or return audio from the HDR-EX-100CEA-RX receiver, to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.

The HDR-SW-52ED is part of the HDR-SW Series that also includes the HDR-SW-51 five-input HDMI switcher and HDR-SW-52 5×2 HDMI matrix switcher

Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs Feature:

  • 5×2 HDMI matrix switcher
    • HDMI inputs
    • HDBaseT and HDMI outputs
    • Delivers flexible matrix switching capability for meeting and presentation spaces
  • HDBaseT and HDMI outputs with selectable AV switching modes
    • Selectable switching modes available with mirrored or matrixed outputs
    • Enables simple configuration and effortless user operation, tailored to the specific AV application
  • Video, audio, power, and data over category cable utilizing HDBaseT technology
    • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
    • Recommended receiver: AT-HDR-EX-100CEA-RX
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
    • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
    • Compatible with 4K HDR10, Dolby® Vision™, and HLG (Hybrid Log-Gamma)
  • Selectable 4K to 1080p downscaling
    • Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p
    • Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
    • Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices
  • Automatic display control*
    • Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.
    • CEC enables control of consumer displays (as supported by the display manufacturer)
    • Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
    • Enables effortless, automated system operation without the need for an external control system
    • * Available when the switching mode is set to mirrored outputs.
  • Automatic input selection using hot plug detect and video detection technology*
    • Selects active input when sources are connected or if there is a change in source power status
    • Enables simplified, automatic system operation without user intervention
    • * Available when the switching mode is set to mirrored outputs.
  • Remotely powers receiver over HDBaseT
    • Supplies industry standard IEEE 802.3af PoE over HDBaseT to the receiver (AT-HDR-EX-100CEA-RX recommended)
    • Allows convenient endpoint installation at remote locations without the need for local AC power
  • Audio de-embedding
    • De-embeds two channel PCM audio from the selected HDMI source to S/PDIF and balanced, analog audio outputs
    • De-embeds 5.1 channel bitstream audio from the selected HDMI source to S/PDIF audio output
    • Provides direct interfacing into an external audio system
  • Delivers return audio from the AT-HDR-EX-100CEA-RX receiver
    • Receives HDBaseT return audio from a display or television (via TOSLINK connection to the receiver), and delivers to S/PDIF and analog audio outputs
    • Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more
  • Multi-channel audio compliant
    • Passes through multi-channel audio formats from the selected HDMI input
    • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
  • EDID management
    • Manages EDID communications with the source through a display’s EDID or internally stored EDID
    • Ensures desired audio formats and video resolutions are provided to the AV system
  • HDCP 2.2 management
    • Automatically reports HDCP compliance status to the source based on the sink device
    • HDCP compliance can also be disengaged through Velocity Device Manager or a control system
    • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
    • Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
  • Integrated HDBaseT link testing and status monitoring
    • Tests integrity of the HDBaseT cable link between each input or output and the corresponding transmitter or receiver
    • Web GUI provides real-time link status
    • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
  • Intuitive GUI-based configuration using integrated web server
    • Offers menu-based configuration of device settings including network access, input switching, I/O routing for video and audio, signal processing, display control, HDCP and EDID management, and more
    • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
  • TCP/IP and RS-232
    • Flexible control options for compatibility with the Atlona Velocity™ control system, as well as other third-party control systems
    • Reduces integration time and costs
  • TCP proxy streamlines control system integration
    • Converts TCP/IP commands to RS-232 commands for output to external devices over HDBaseT
    • Enables single IP connection to control processor to control both IP and RS-232 connected devices at remote endpoints
  • Easy to configure and manage with Velocity Device Manager
    • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
    • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
    • Available as a part of Velocity control systems or as a free virtual machine software download
  • Field-updatable firmware
    • Device can be updated in the field via the web GUI or Velocity Device Manager
  • Front panel volume controls and LED indicator
    • Volume button controls for adjusting analog audio output level
    • Buttons can also be configured to control volume over IP, RS-232, or CEC
  • Rack-mountable, 1U, half rack width enclosure
    • Includes surface mounting hardware for easy installation into confined spaces below tables and in furniture
    • Installs easily in equipment racks with included rack mounting hardware
  • Included accessories
    • Installation guide, surface mounting hardware, short and long rack mount ears (for full rack width installation), and external universal power supply

Why not buy this Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs from HDTV Supply today?

Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs Specifications:

  • Video
    • Signal
      • Input – HDMI
      • Output – HDMI, HDBaseT
    • Copy Protection HDCP 2.2
    • Pixel Clock 600 MHz
    • UHD/HD/SD
      • 4096×2160 (DCI) @ 24/25/30/50/60 Hz
      • 3840×2160 (UHD) @ 24/25/30/50/60 Hz
      • 1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz
      • 1920x1080i @ 50/60 Hz
      • 1280x720p @ 30/50/60 Hz
      • 720x576p @ 50 Hz
      • 720x576i @ 25/50 Hz
      • 720x480p @ 60 Hz
      • 640x480p @ 60 Hz
      • 640x480i @ 60 Hz
    • VESA (All resolutions are 60 Hz)
      • 2560×2048
      • 2560×1600
      • 2048×1536
      • 1920×1200
      • 1680×1050
      • 1600×1200
      • 1600×900
      • 1440×900
      • 1400×1050
      • 1366×768
      • 1360×768
      • 1280×1024
      • 1280×800
      • 1280×768
      • 1152×768
      • 1024×768
      • 800×600
      • 640×480
    • Color Space YUV, RGB
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • Color Depth 8-bit, 10-bit, 12-bit
    • HDR HDR10, Hybrid-Log Gamma (HLG), and Dolby® Vision™ @ 60 Hz
  • Audio
    • HDMI Pass-Through Formats
      • LPCM 2.0
      • LPCM 5.1
      • LPCM 7.1
      • Dolby® Digital
      • Dolby Digital Plus™
      • Dolby TrueHD
      • Dolby Atmos®
      • DTS® Digital Surround™
      • DTS-HD Master Audio™
      • DTS:X®
    • S/PDIF
      • LPCM 2.0
      • Dolby® Digital
      • DTS® Digital Surround™
    • Bit Depth Up to 24 bits
    • Analog Audio
      • Format Stereo 2-Channel
      • Balanced Output +4 dBu nominal gain, +19 dB headroom
      • Frequency Response 20 Hz to 20 kHz, ± 0.5 dB
      • THD+N < 0.006% at 20 Hz to 20 kHz
      • SNR > 105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
      • Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
  • Ethernet
    • Port 1 x RJ45
    • Standards and Protocols HTTP, Telnet
    • Speeds 10/100 Mbps
    • Addressing DHCP, Static – selectable through built-in web server and Telnet commands
  • RS-232
    • Port 1 x 3-pin captive screw
    • Use Unit and external device control and configuration
    • Baud Rates 2400, 4800, 9600, 19200, 38400, 57600, 115200
    • Data Flow Bidirectional
  • IR
    • Port 1 x 5-pin captive screw
    • Use Unit and external device control and configuration
    • Carrier Frequency Range 30 kHz – 60 kHz
    • Data Flow Bidirectional
  • CEC
    • Ports
      • 1 x HDMI OUT, Type A, 19-pin female
      • 1 x HDBaseT OUT, RJ45
    • Triggering Through HDMI and/or HDBaseT
  • Resolution / Distance
    • HDMI IN/OUT – 4K/UHD: 15 Feet / 5 Meters | 1080p: 30 Feet / 10 Meters
    • CAT5e – 4K/UHD: 295 Feet / 90 Meters | 1080p: 330 Feet / 100 Meters
    • CAT6/6a/7 – 4K/UHD: 330 Feet / 100 Meters | 1080p: 330 Feet / 100 Meters
  • Buttons and Indicators
    • Buttons POWER, UP, DOWN, INPUT – 4 x momentary, tact-type
    • Indicators
      • POWER – 1 x LED, blue
      • HDMI 1 – HDMI 5 – 5 x LED, blue
      • VOLUME – 9 x LED, green, amber, red
  • Connectors
    • HDMI IN – 5 x Type A, 19-pin female
    • HDMI OUT – 1 x Type A, 19-pin female
    • HDBaseT OUT – 1 x RJ45
    • LAN – 1 x RJ45
    • L/R – 1 x 5-pin captive screw
    • S/PDIF OUT – 1 x RCA, female
    • RS-232 – 1 x 3-pin captive screw
    • IR IN / OUT – 1 x 5-pin captive screw
    • FW – 1 x mini-USB
    • DC 48V – 1 x 2-pin captive screw
  • Environmental
    • Operating Temperature +32 to +122 Fahrenheit | 0 to +50 Celsius
    • Storage Temperature -4 to +140 Fahrenheit | -20 to +60 Celsius
    • Operating Humidity (RH) 20% to 90%, non-condensing
  • Power
    • Consumption 22.4 W
    • 37.4 W (with PoE)
    • BTU/h 76.4
    • External Power Supply 100 – 240 V AC, 50/60 Hz
    • Output: 48 V / 0.83 A DC
  • Dimensions (H x W x D)
    • Unit 1.34 x 8.19 x 4.41 Inches | 34 x 208 x 112 Millimeters
    • Power Supply (AT-PS-48083-C) 1.42 x 1.81 x 4.41 Inches | 36 x 46 x 112 Millimeters
  • Weight
    • Device 1.44 Pounds | 3.15 Kilograms
  • Certification
    • Device CE, RoHS, FCC
    • Power Supply CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC
  • Compliance
    • NDAA-899 – Yes
    • TAA – Yes

Why not buy this Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs from HDTV Supply today?

Atlona AT-HDR-SW-52ED User Manual

Atlona AT-HDR-SW-52ED Datasheet

Why not buy this Atlona AT-HDR-SW-52EDED 4K HDR 5×2 HDMI Matrix Switcher With HDMI & HDBaseT Outputs from HDTV Supply today?

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4×2 — 4 sources to 2 displays
  • 4×4 — 4 sources to 4 displays
  • 8×8 — 8 sources to 8 displays
  • 8×9 — 8 sources to 9 displays
  • 16×16 — 16 sources to 16 displays
  • 16×32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.

Need Help Choosing?

HDTV Supply has been helping AV integrators, sports bars, hotels, and homeowners select the right matrix switching system for 25 years. Call us at 833-WOLFPACK (833-965-3722) or email kent@hdtvsupply.com and we'll recommend the right unit for your source count, display count, resolution requirements, and control system.
