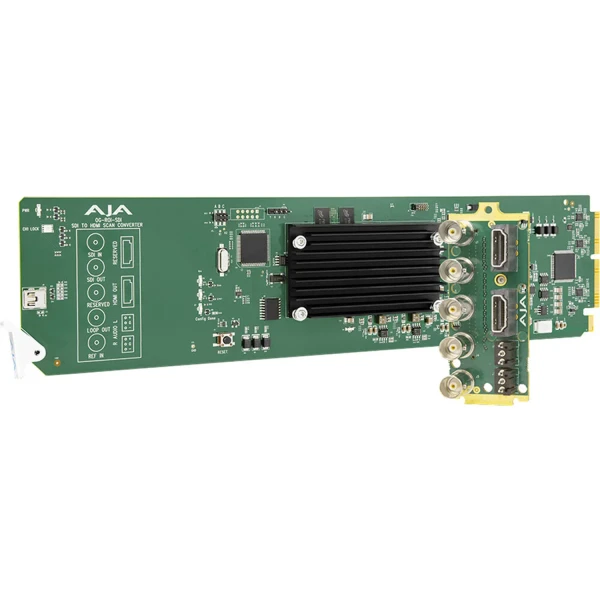

This AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter is an openGear card that allows exceptionally high-quality scan conversion of SDI inputs to 3G-SDI and HDMI baseband video outputs.
With incredible Region of Interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-SDI fulfills the growing need to properly incorporate extractions from 3G-SDI sources into 3G-SDI and HDMI feeds without sacrificing budget or space.
READ MORE
AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter Features:
- openGear compatible card
- SDI to HDMI/3G-SDI conversion with SDI loop through
- Scan Converter
- 3G-SDI and HDMI 1.4 outputs
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input SDI formats up to 1920 x 1080p 60 Hz
- Loss of Input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- 2-channel analog audio output of disembedded audio
- Genlock: Reference Input, SDI Input, or Free Run
- Remote Ethernet configuration through Ross DashBoard software
- Power: 7 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter from HDTV Supply today?
AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter Specifications:
- Video Input Formats
- Video Signals:
- (HD) 1920x1080i 50, 59.94
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i, 50
- (SD) 525i, 59.94
- Video Signals:
- Video Output Formats
- (HD) 1920x1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- Color Range
- Full
- SMPTE
- Reference Source
- Free Run
- Ext Ref
- Reference Input
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75 ohm terminating
- Video Input
- 1x 3G-SDI BNC, SMPTE-259/292/424
- Video Outputs
- 1x 3G-SDI BNC, loop through
- 1x 3G-SDI BNC, SMPTE-259/292/424
- 1x HDMI Type A, HDMI v1.4
- Audio I/O
- 24-bit, 16-channel embedded SDI audio input
- 24-bit, 16-channel embedded SDI audio output
- 24-bit, 8-channel HDMI audio output
- Balanced analog audio outputs, 2x 3-Pin terminal block connectors
- User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible, 7.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
