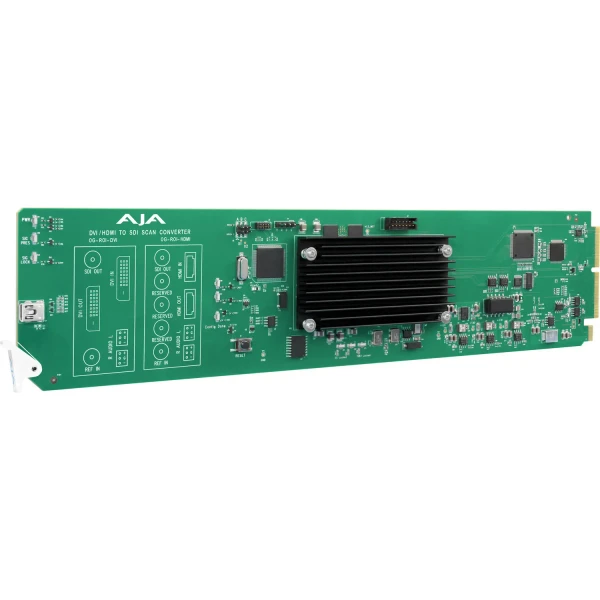

This AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter is an openGear card that allows exceptionally high-quality conversion of computer and HDMI signals to 3G-SDI baseband video.
With incredible Region of Interest image scaling as well as aspect ratio and frame rate conversion, OG-ROI-HDMI fulfills the growing need to properly incorporate extractions from HDMI sources and computer signals into the video world without sacrificing budget or space.
READ MORE
AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter Features:
- openGear compatible card
- Computer resolutions to video resolutions Scan Converter
- HDMI to 3G-SDI conversion with HDMI loop through
- EDID Emulation
- 3G-SDI output
- Supports SD, HD, and 3G formats (see Tech Specs for complete list)
- Region of Interest scaling
- Up, down, cross-conversion
- Aspect ratio conversion
- Frame rate conversion
- Image H/V flip and 90 degree rotation
- Conversion between Deinterlaced and Progressive signals
- Accepts input HDMI formats up to 1920 x 1200 60 Hz
- Loss of Input management: Black, Freeze, or Mute
- Supports 8-channels of embedded audio
- Audio input via 3-pin analog connectors or 8-channel HDMI embedded audio
- Genlock: Reference Input, HDMI Input, or Free Run
- Remote Ethernet configuration through Ross DashBoard software
- Power: 8 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter from HDTV Supply today?
AJA OG-ROI-HDMI openGear HDMI to 3G-SDI Scan Converter Specifications:
- Video Input Formats
- Computer Signals:
- WUXGA (1920 x 1200) 60 Hz max
- VGA (640 x 480) minimum
- Video Signals:
- (HD) 1920 x 1080i 50, 59.94
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i, 525i
- (SD) 580p, 480p
- Note: Frame rates limited by the 166 MHz max pixel rate of the HDMI receiver.
- Computer Signals:
- Video Output Formats
- (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr)
- (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920 x 1080i 50, 59.94, 60
- (HD) 1280 x 720p 50, 59.94, 60
- (SD) 625i 25
- (SD) 525i 29.97
- Color Range
- Full
- SMPTE
- Reference Source
- Free Run
- Card Ext Ref
- OG Frame Ref 1
- OG Frame Ref 2
- Reference Input
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75 ohm terminating
- Video Input
- 1x HDMI input connector (with embedded audio, up to 8-channels)
- Video Outputs
- HDMI
- 1x HDMI loop through connector (with embedded audio, up to 8-channels)
- SDI
- 3G-SDI, SMPTE-259/292/424, 1x BNC
- HDMI
- HDCP
- ROI does not encode the HDMI output with HDCP encryption
- ROI does not accept HDCP input
- Audio Inputs
- 2-channel Balanced analog audio inputs, 2x 3-Pin terminal block connectors
- HDMI embedded audio, 24-bit, 8-channel
- Audio Output
- SDI embedded audio, 24-bit, 2-channel or 8-channel
- User Interface
- openGear DashBoard network control software via Windows, macOS or Linux
- Size (w x d x h)
- openGear standard form factor, front slot, and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible, 8.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
